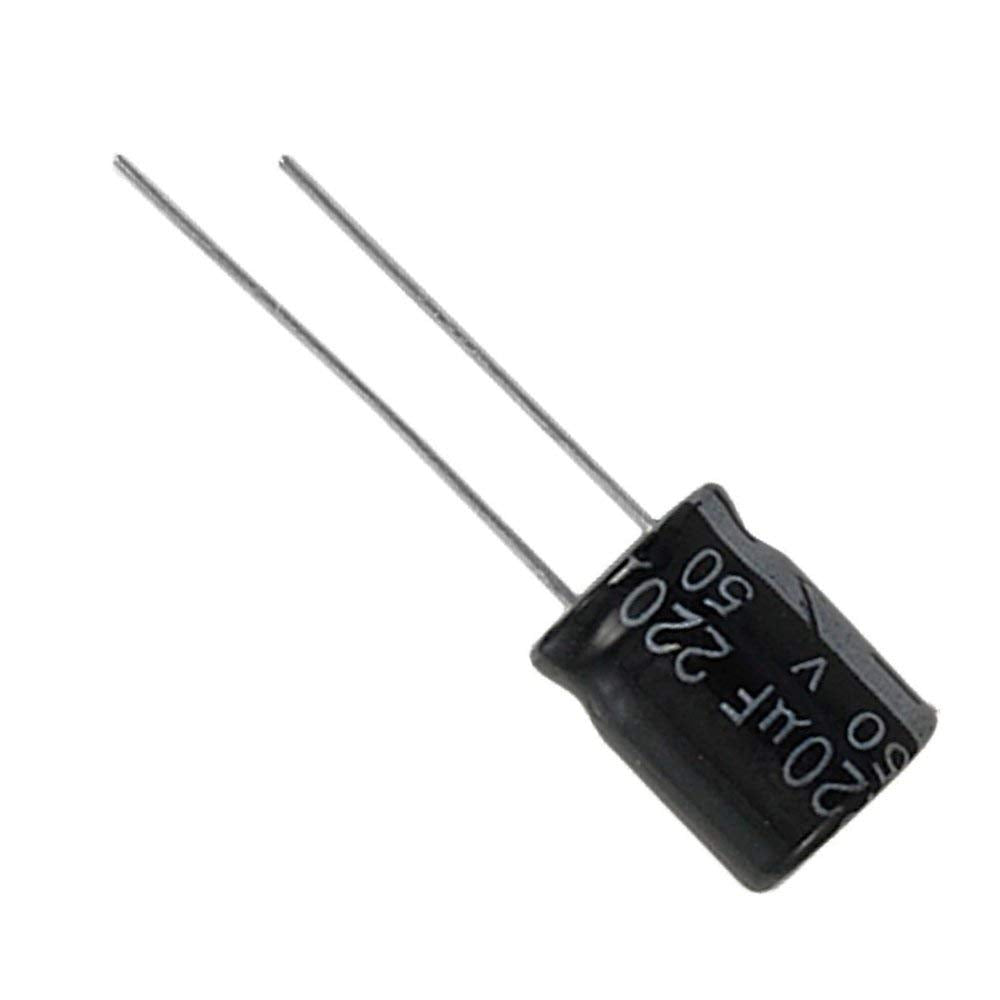

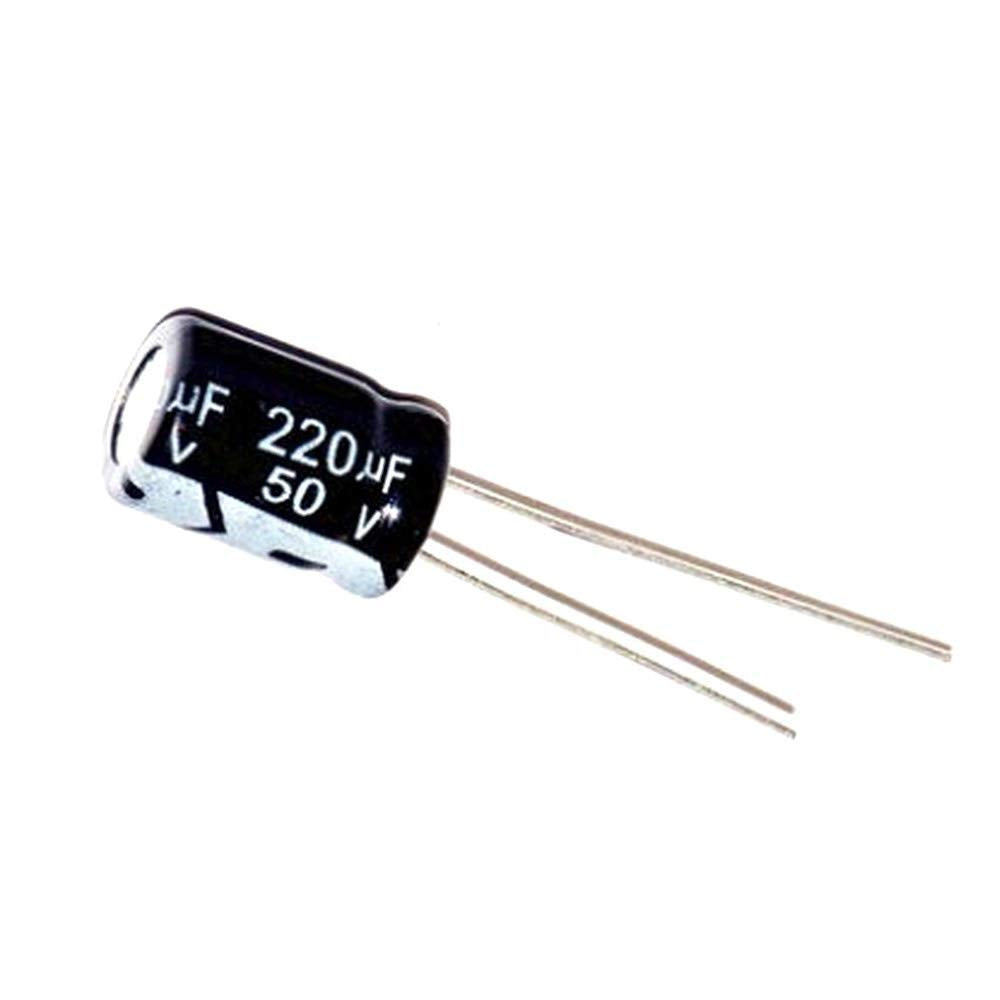

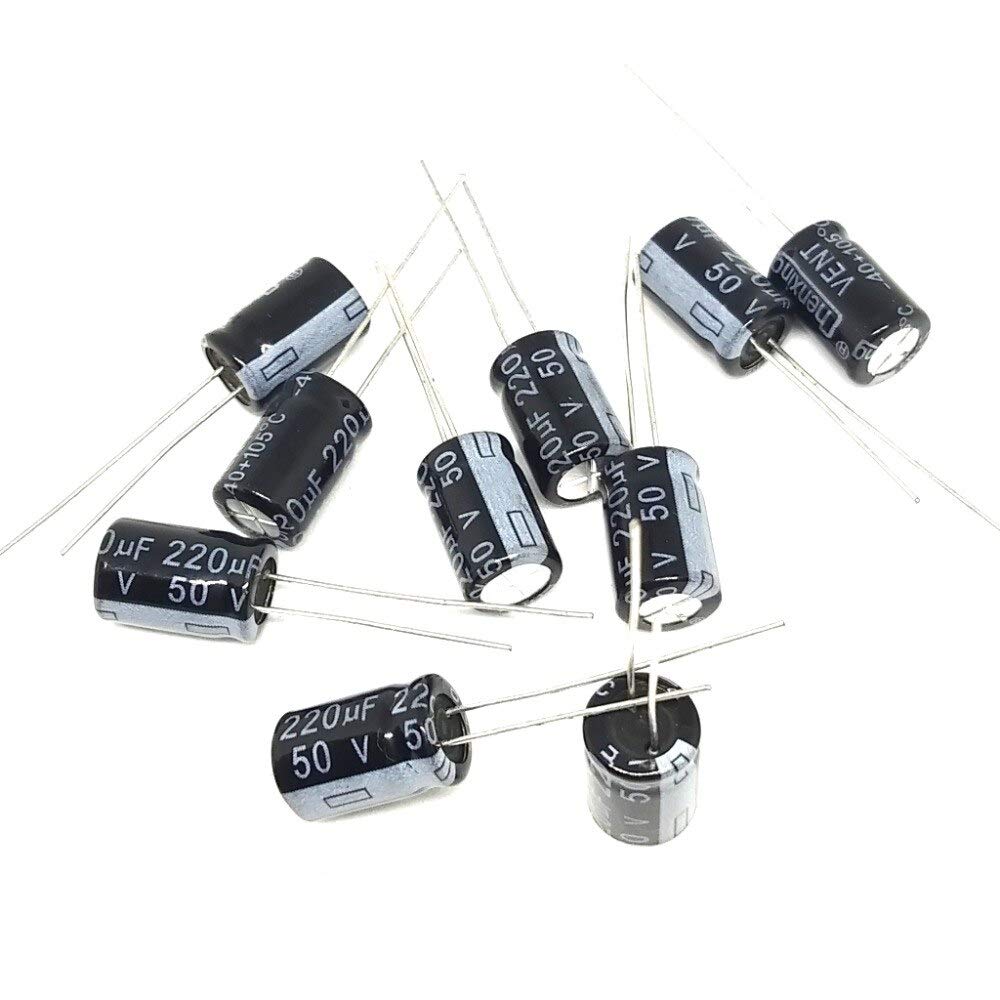

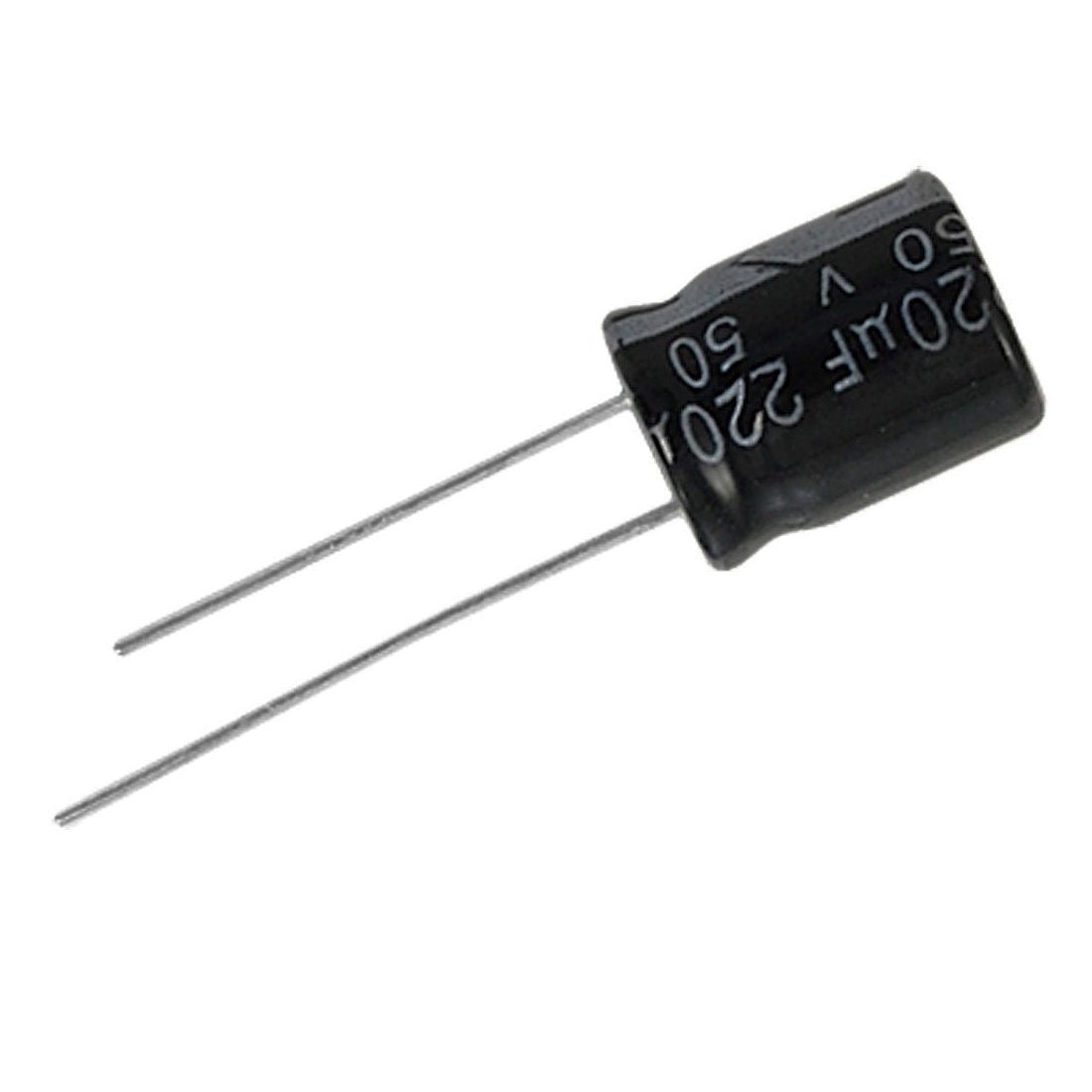

220uF 50V Capacitor

The 220uF 50V Capacitor is an electrolytic capacitor widely used in electronic circuits for energy storage, voltage smoothing, and filtering applications. It has a capacitance value of 220 microfarads (220uF) and a maximum voltage rating of 50 volts, making it suitable for medium-power electronic systems and power supply circuits.

An electrolytic capacitor works by storing electrical energy in an electric field between its internal plates, using an electrolyte as one of the conductive layers. This allows it to achieve high capacitance values in a relatively small physical size. Because of this high storage capacity, it is commonly used in circuits where stable DC voltage is required.

The 220uF value makes it ideal for smoothing voltage ripples in power supply outputs. It helps reduce fluctuations and provides a steady DC supply to sensitive electronic components such as microcontrollers, amplifiers, and sensors. It is also used in timing circuits and signal stabilization applications.

The 50V rating represents the maximum voltage the capacitor can safely handle. This makes it suitable for a wide range of electronic devices, including power supplies, audio systems, and embedded electronics projects.

Since it is a polarized capacitor, it must be connected with correct polarity (+ and - terminals). Incorrect connection can damage the capacitor or the circuit.

Working Principle

The 220uF capacitor operates by storing and releasing electrical energy:

• When voltage is applied, it charges by storing energy in an electric field.

• When voltage drops, it releases stored energy into the circuit.

• It smooths fluctuations in DC power supply.

• It filters out noise and stabilizes voltage levels.

Key Features

• Capacitance: 220uF (microfarad)

• Voltage rating: 50V

• Polarized electrolytic type

• High energy storage capacity

• Used for filtering and smoothing

• Compact cylindrical design

• Stable and reliable performance

Applications

The 220uF 50V Capacitor is widely used in:

• Power supply filtering circuits

• Voltage smoothing applications

• Audio amplifier circuits

• DC power stabilization

• Microcontroller power circuits

• Arduino and embedded systems

• DIY electronics projects

• Signal conditioning circuits

• Industrial electronic equipment

• Battery-powered devices

Specifications

• Product Type: Electrolytic Capacitor

• Capacitance: 220uF

• Voltage Rating: 50V

• Type: Polarized

• Mounting Type: Through-hole
