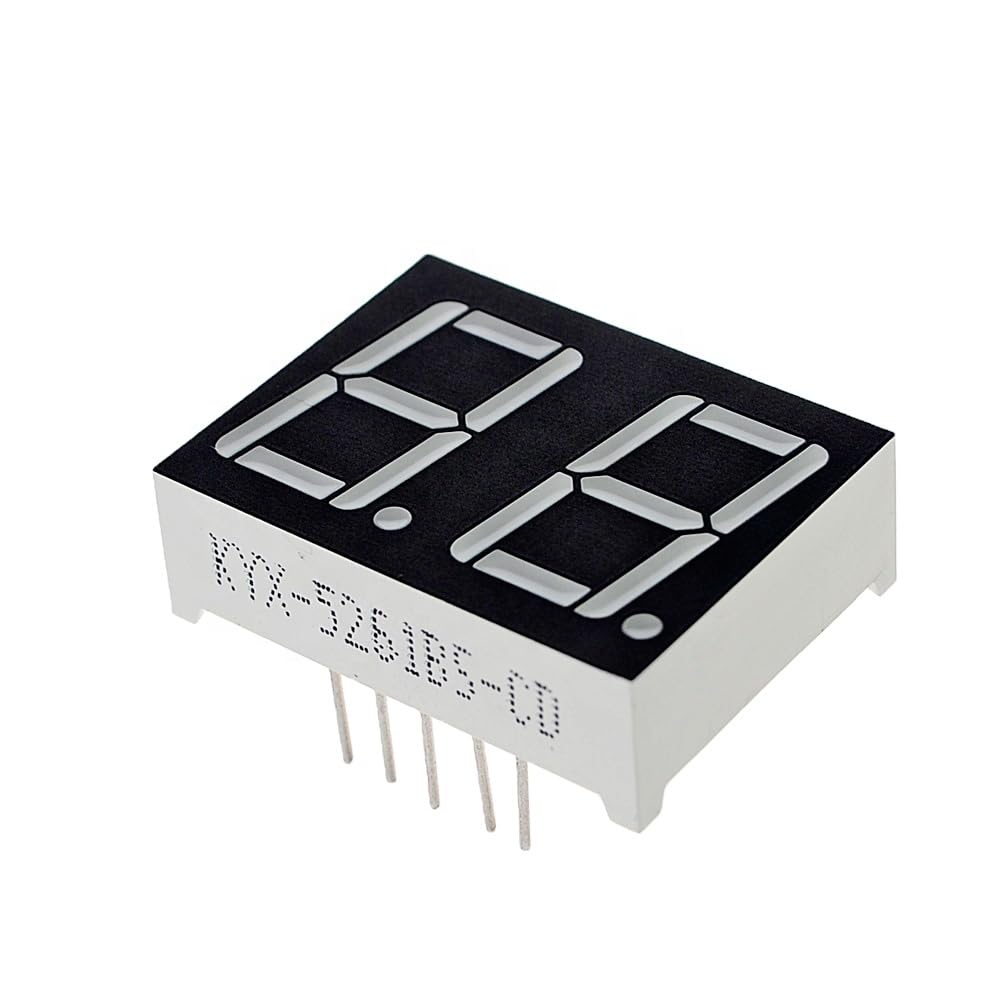

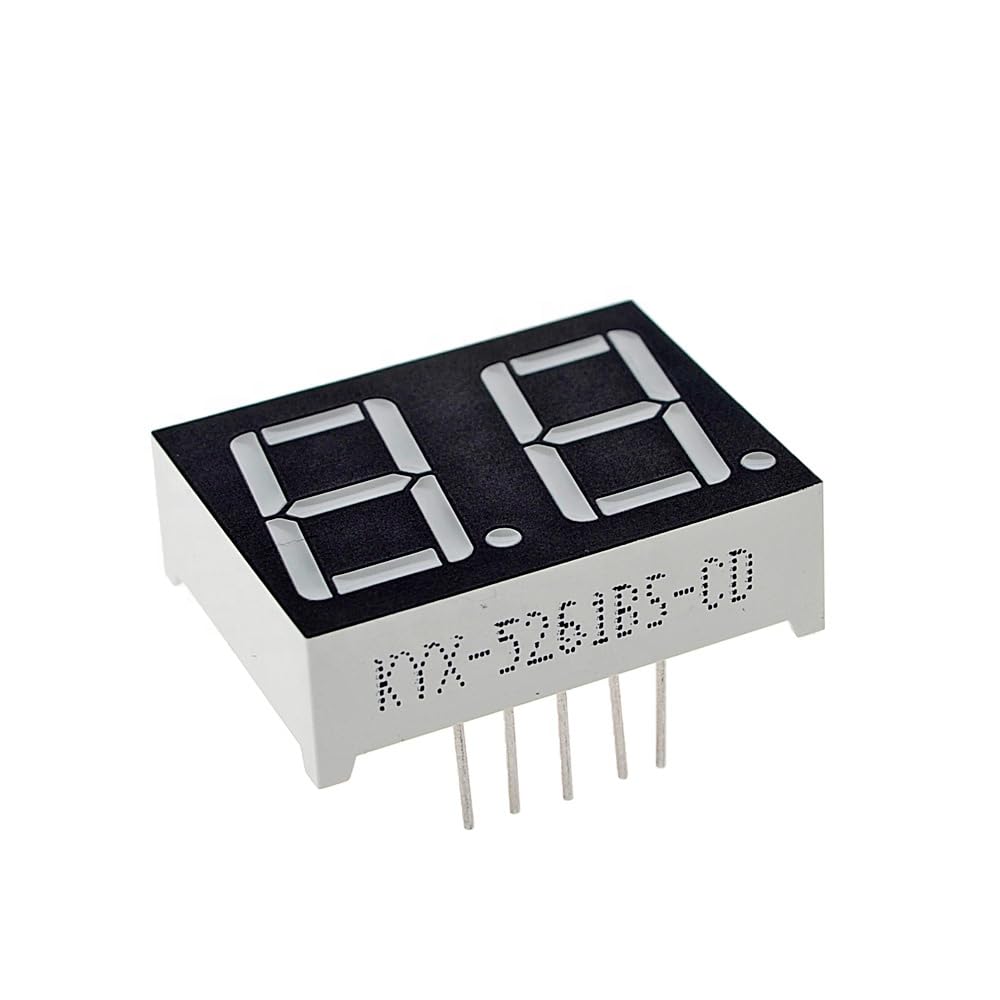

2 Digit 7 Segment LED Display

The 2 Digit 7 Segment LED Display is a compact electronic display module designed to show numerical values using seven individual LED segments arranged in the shape of the number “8”. It is commonly used in digital electronics projects, measurement devices, counters, timers, clocks, and embedded systems where displaying simple numeric information is required. The two-digit configuration allows the display to show numbers from 00 to 99, making it suitable for applications that require two-digit numerical output.

Each digit of the display consists of seven LED segments labeled A, B, C, D, E, F, and G, which can be individually controlled to form different numbers and characters. By switching specific segments ON or OFF, the display can represent digits from 0 to 9. Some versions also include a decimal point (DP) segment for displaying decimal values. The two digits can be controlled independently, allowing users to create counters, timers, and numerical indicators.

The 2 Digit 7 Segment LED Display is available in both Common Anode and Common Cathode configurations. In a common cathode display, all LED segment cathodes are connected together and segments turn ON when supplied with a positive voltage. In a common anode display, all LED segment anodes are connected together and segments turn ON when connected to ground. The correct type should be selected according to the driving circuit or microcontroller being used.

This display module can be directly interfaced with popular development boards such as Arduino, Raspberry Pi, ESP32, ESP8266, NodeMCU, STM32, PIC, AVR, and 8051 microcontrollers. It can be controlled using GPIO pins, transistor drivers, shift registers, or dedicated display driver ICs. Multiplexing techniques are commonly used to control multiple digits while reducing the number of required control pins.

The 2 Digit 7 Segment LED Display is widely used in digital clocks, countdown timers, electronic counters, voltage meters, temperature displays, speed indicators, scoreboards, calculators, industrial control panels, sensor displays, vending machines, automation systems, educational electronics projects, and DIY embedded applications.

The display provides advantages such as high brightness, low power consumption, easy readability, simple interfacing, long operating life, and reliable performance. Its compact size and simple control method make it an excellent choice for beginners learning electronics as well as professionals designing embedded systems.

The 2 Digit 7 Segment LED Display is an essential electronic component for creating simple and effective numeric display solutions. Its compatibility with various microcontrollers, easy programming, and wide range of applications make it ideal for electronics learning, prototyping, automation projects, and digital device development.
