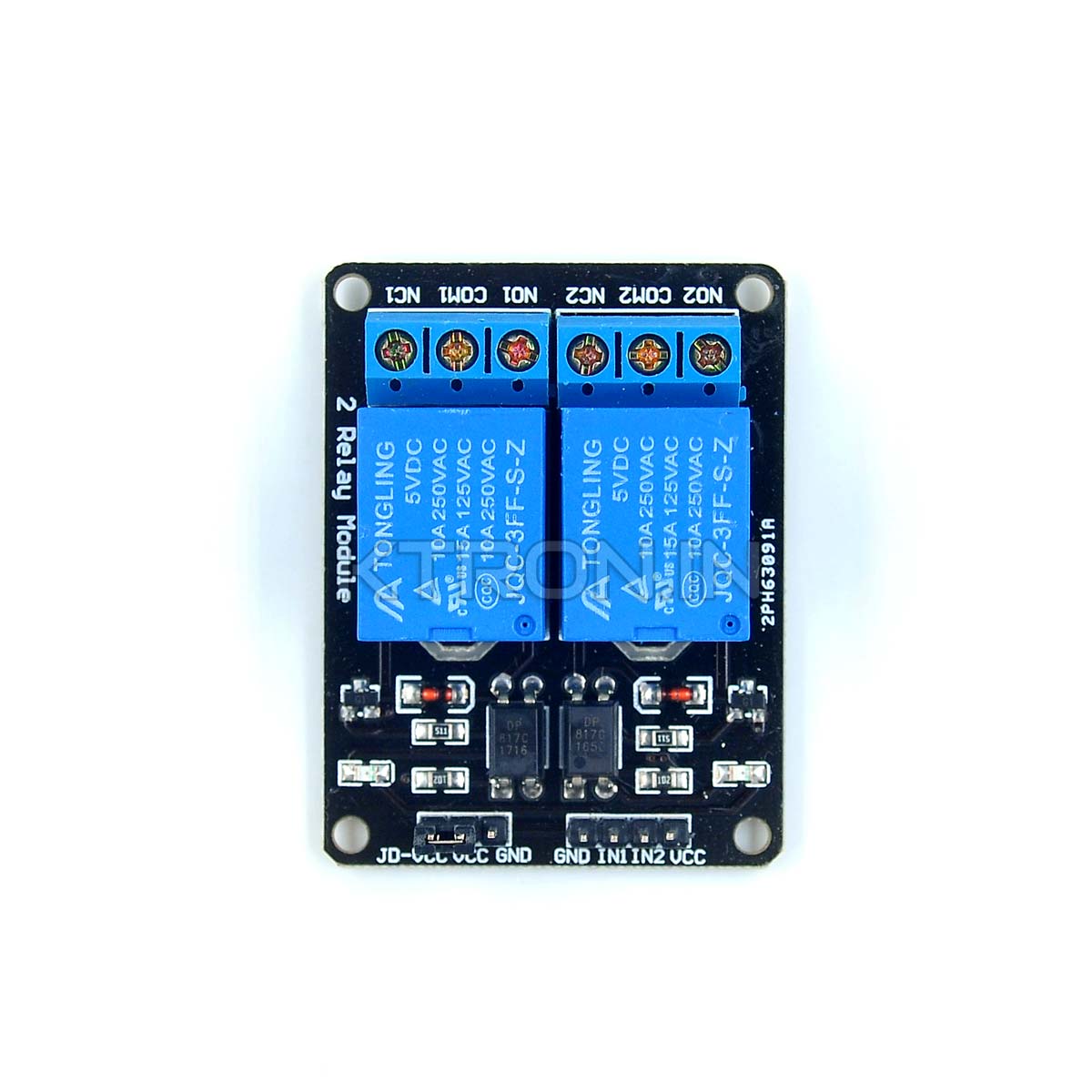

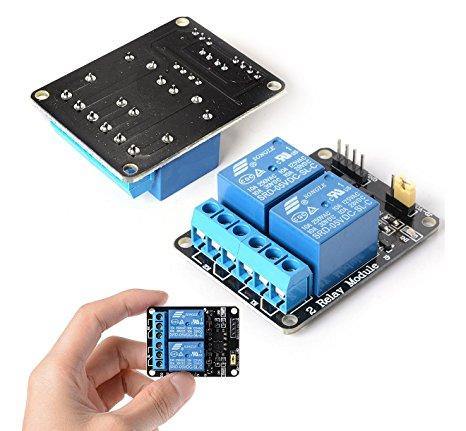

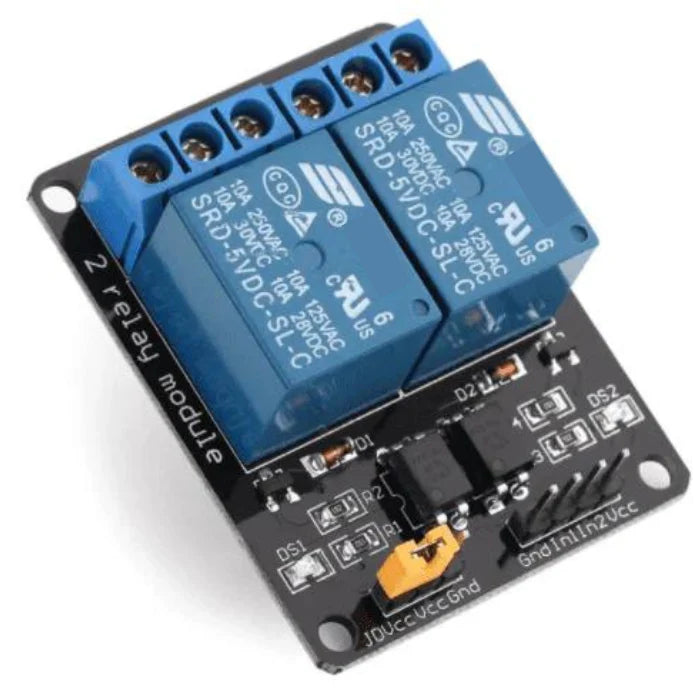

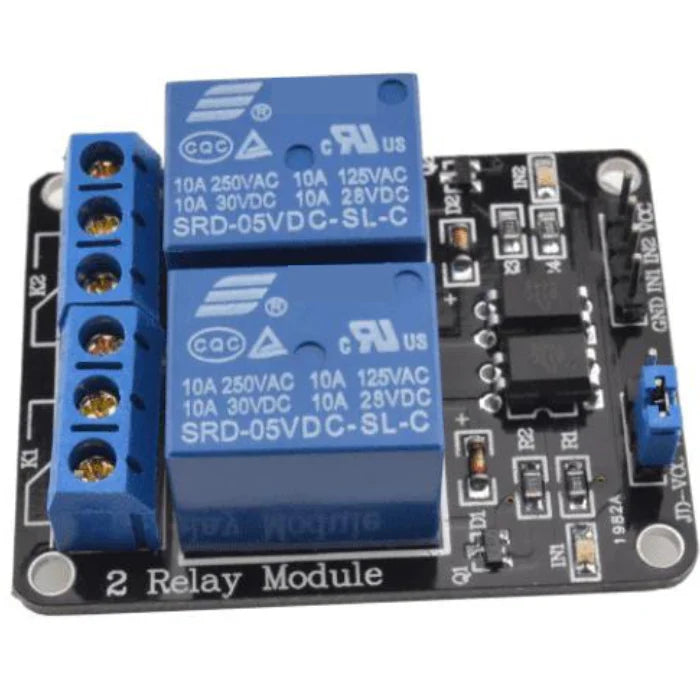

2 Channel 5V Relay Module with Optocoupler

The 2 Channel 5V Relay Module with Optocoupler is an electronic switching module designed to allow low-voltage microcontrollers to safely control high-voltage AC or DC electrical devices. It contains two independent relay channels, enabling two separate electrical loads to be controlled simultaneously. The module is widely used in home automation, industrial automation, robotics, IoT systems, smart appliances, security systems, and embedded electronics projects. The built-in optocoupler provides electrical isolation between the control circuit and the relay circuit, improving safety and protecting sensitive microcontrollers from electrical noise and voltage spikes.

The module consists of two 5V electromagnetic relays, optocouplers, transistor driver circuits, flyback protection diodes, status indicator LEDs, current-limiting resistors, input/output terminal blocks, and header pins for easy interfacing. Each relay includes Common (COM), Normally Open (NO), and Normally Closed (NC) terminals, allowing flexible switching configurations for different applications.

The working principle of the 2 Channel 5V Relay Module begins when a digital control signal from a microcontroller is applied to one of the relay input pins. The signal activates the optocoupler, which transfers the control signal optically without creating a direct electrical connection between the control side and the relay side. The optocoupler then drives the transistor circuit, energizing the relay coil. The energized relay generates a magnetic field that moves the internal switching contacts from their default position. As a result, the connected electrical load is switched ON or OFF depending on whether the Normally Open (NO) or Normally Closed (NC) terminal is used. When the control signal is removed, the relay coil is de-energized, and the contacts return to their original position.

The module operates with a 5V DC supply voltage and is compatible with 3.3V or 5V logic levels, depending on the module design. It can be directly controlled by popular development boards such as Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, PIC, AVR, and Raspberry Pi. Each relay channel can be controlled independently using separate digital input pins.

The relay contacts are designed to switch high-power electrical loads, typically supporting up to 250V AC at 10A or 30V DC at 10A, depending on the relay model and manufacturer specifications. This allows the module to safely control devices such as lights, fans, pumps, solenoid valves, motors, heaters, alarms, and other household or industrial equipment.

The built-in optocoupler isolation significantly improves system reliability by reducing electrical interference, protecting the microcontroller from voltage transients, and minimizing the risk of damage caused by inductive loads. The module also includes LED indicators that show the power status and the operating status of each relay channel, making troubleshooting easier during installation and testing.

The applications of the 2 Channel 5V Relay Module with Optocoupler include home automation systems, smart lighting control, industrial automation, motor control, pump control, irrigation systems, security and alarm systems, IoT devices, robotic systems, automatic switching circuits, HVAC systems, power management, remote-controlled appliances, embedded systems, educational electronics, laboratory experiments, prototype development, and DIY electronics projects.

The advantages of the module include dual independent relay channels, optocoupler isolation for improved electrical safety, compatibility with most microcontrollers, simple digital control, high load-switching capability, LED status indicators, reliable operation, compact PCB design, low power consumption, easy installation, long mechanical life, and protection against electrical noise and voltage spikes.

In conclusion, the 2 Channel 5V Relay Module with Optocoupler is a reliable, safe, and easy-to-use switching module that enables microcontrollers to control high-voltage electrical devices efficiently. Its dual relay design, optocoupler-based electrical isolation, high switching capacity, and compatibility with popular development boards make it an ideal solution for automation, robotics, IoT, industrial control, and educational electronics projects.
