2-Axis Pan-Tilt Bracket for Camera / Sensors

The 2-Axis Pan-Tilt Bracket for Camera / Sensors is a compact mechanical mounting platform designed to provide horizontal (pan) and vertical (tilt) movement for cameras, sensors, and other lightweight devices. It is commonly used in robotics, surveillance systems, computer vision, object tracking, IoT projects, automation, educational robotics, and DIY electronics. The bracket is typically driven by two servo motors, allowing precise positioning and orientation of the mounted device.

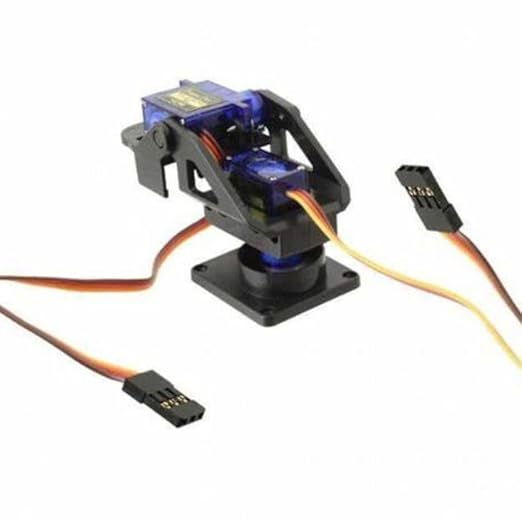

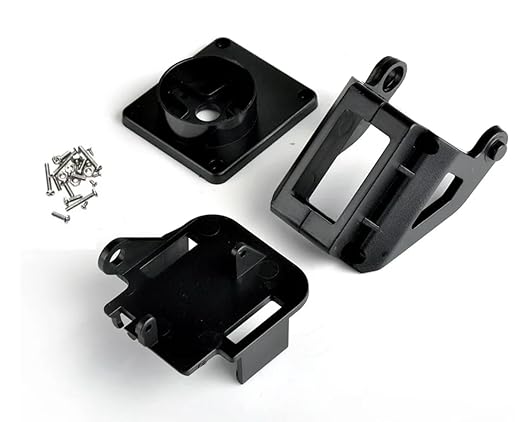

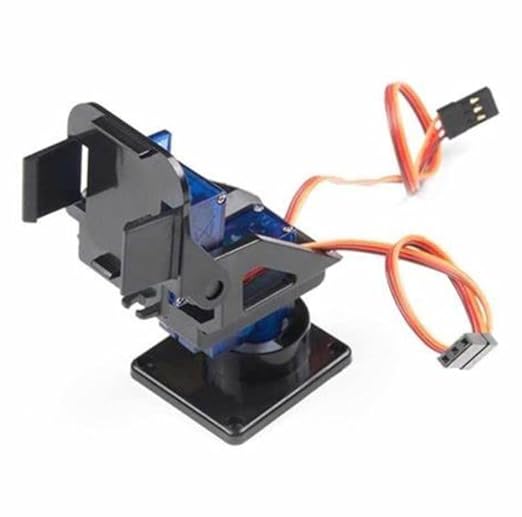

The pan-tilt bracket is usually manufactured from aluminum alloy, acrylic, or high-strength engineering plastic, offering a lightweight yet durable structure. It consists of a base plate, pan bracket, tilt bracket, servo mounting plates, servo horns, screws, nuts, bearings (in some models), and mounting hardware. Most kits are designed to accommodate standard micro servos such as the SG90 or MG90S, although larger versions may support higher-torque servos.

The working principle of the 2-Axis Pan-Tilt Bracket is based on independent servo motor control. One servo motor controls the pan axis, rotating the entire bracket left and right through a horizontal angle. The second servo motor controls the tilt axis, moving the mounted camera or sensor up and down. Each servo receives a Pulse Width Modulation (PWM) signal from a microcontroller, allowing precise angle adjustment. By combining both movements, the mounted device can be positioned accurately in two dimensions to monitor or track a target.

The pan axis typically provides a rotation range of approximately 180°, while the tilt axis also offers approximately 180° of movement, depending on the servo motor and mechanical design. This enables the camera or sensor to cover a wide viewing area for monitoring and tracking applications.

The bracket is compatible with a wide range of devices, including ESP32-CAM modules, Raspberry Pi Camera Modules, USB cameras, OV7670 cameras, ultrasonic sensors (HC-SR04), infrared sensors, laser modules, thermal sensors, LiDAR sensors, and other lightweight electronic modules. The mounting holes are designed to support common camera and sensor sizes used in electronics projects.

The 2-Axis Pan-Tilt Bracket is fully compatible with popular development boards such as Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi, STM32, PIC, and AVR microcontrollers. It can be controlled using Arduino Servo libraries, Python, or other programming platforms. The bracket can also be integrated with Bluetooth, Wi-Fi, computer vision, face tracking, object detection, gesture recognition, and AI-based control systems.

The applications of the 2-Axis Pan-Tilt Bracket include surveillance camera systems, face tracking, object tracking, robotic vision, autonomous robots, smart security systems, machine vision, IoT monitoring, ultrasonic scanning systems, laser positioning, environmental monitoring, educational robotics, AI projects, research laboratories, prototype development, industrial automation, STEM education, and DIY electronics projects.

The advantages of the 2-Axis Pan-Tilt Bracket include smooth pan and tilt movement, accurate positioning, lightweight construction, durable mechanical design, easy servo installation, compatibility with multiple cameras and sensors, simple microcontroller interfacing, modular design, low power consumption, easy assembly, upgradeability, and suitability for educational, research, and industrial applications.

In conclusion, the 2-Axis Pan-Tilt Bracket for Camera / Sensors is a versatile mechanical platform that enables precise horizontal and vertical positioning of cameras and sensors. Its dual-axis movement, servo motor compatibility, sturdy construction, and support for popular microcontroller platforms make it an ideal solution for robotics, computer vision, automation, surveillance, IoT systems, and engineering education.
