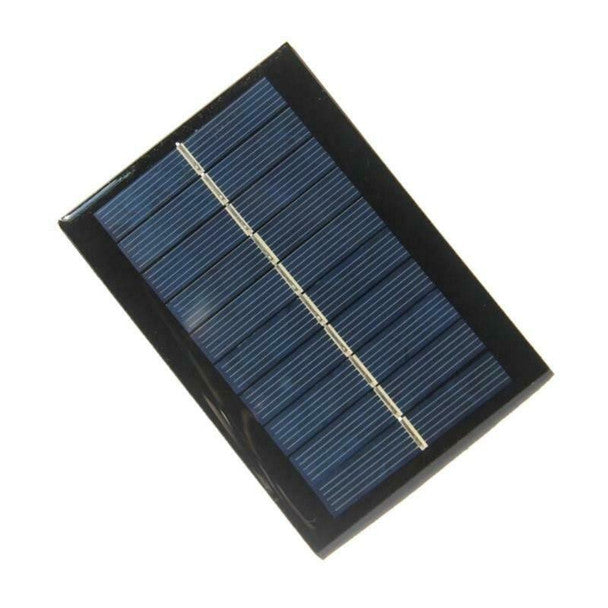

1W 5V Solar Panel (130 × 120 mm)

The 1W 5V Solar Panel (130 × 120 mm) is a compact photovoltaic (PV) solar panel designed to convert sunlight into electrical energy using high-efficiency solar cells. It delivers a nominal output voltage of 5V DC with a maximum power output of 1 Watt, making it suitable for powering low-power electronic devices and charging small rechargeable batteries through an appropriate charging circuit. It is widely used in Arduino projects, IoT devices, solar-powered gadgets, educational kits, portable electronics, battery charging applications, environmental monitoring systems, robotics, and DIY renewable energy projects.

The solar panel is constructed using high-efficiency monocrystalline or polycrystalline silicon solar cells (depending on the model), protected by a durable transparent encapsulation, EVA (Ethylene Vinyl Acetate) layer, weather-resistant backsheet, and output wires. Its lightweight and compact design makes it easy to install in both indoor demonstration projects and outdoor applications.

The working principle of the 1W 5V Solar Panel is based on the photovoltaic effect. When sunlight strikes the surface of the solar cells, photons transfer energy to electrons within the semiconductor material. This causes the electrons to move, generating direct current (DC) electricity. The generated power is supplied through the output wires and can be used directly for compatible low-power DC devices or to charge rechargeable batteries using a suitable solar charging module or charge controller.

Typical specifications include:

• Product Type: Photovoltaic Solar Panel

• Rated Power: 1 Watt

• Nominal Output Voltage: 5V DC

• Maximum Power Voltage (Vmp): Approximately 5V

• Maximum Output Current: Approximately 200mA

• Open Circuit Voltage (Voc): Approximately 6V–7V

• Dimensions: 130 × 120 mm

• Cell Type: Monocrystalline or Polycrystalline (depending on the model)

• Output Type: DC

• Operating Environment: Indoor and Outdoor

The 1W 5V Solar Panel is suitable for powering or charging low-power electronic devices such as:

• Arduino Uno, Nano, and Mega (through suitable power management)

• ESP32 Development Boards

• ESP8266 Modules

• Raspberry Pi accessories

• Solar battery charging modules

• Small rechargeable battery packs

• LED lighting

• USB-powered electronics

• Wireless sensor nodes

• IoT devices

• Educational electronics kits

• Portable DIY electronics

For battery charging applications, it is recommended to use a solar charge controller or a dedicated battery charging module to ensure safe and efficient charging and to prevent battery overcharging.

The applications of the 1W 5V Solar Panel (130 × 120 mm) include solar-powered educational kits, IoT sensor nodes, portable solar chargers, LED lighting systems, robotics, weather monitoring stations, environmental monitoring equipment, battery charging systems, embedded systems, prototype development, engineering projects, laboratory experiments, renewable energy demonstrations, STEM education, and DIY electronics.

The advantages of the solar panel include renewable energy generation, environmentally friendly operation, silent performance, compact and lightweight design, low maintenance, reliable DC output, easy installation, weather-resistant construction, long operational life, and compatibility with a wide range of low-power electronic devices.

Safety Precautions

• Install the panel in direct sunlight for maximum power output.

• Keep the panel surface clean and free from dust or debris.

• Avoid shading, as it significantly reduces power generation.

• Do not short-circuit the output terminals.

• Use a suitable charging module or charge controller when charging rechargeable batteries.

• Protect the panel from mechanical damage during installation.

• Ensure correct polarity when connecting to electronic circuits.

In conclusion, the 1W 5V Solar Panel (130 × 120 mm) is a compact and efficient renewable energy source designed to generate 5V DC power from sunlight. Its lightweight construction, reliable performance, and compatibility with low-power electronic devices make it an excellent choice for solar-powered electronics, IoT applications, educational projects, battery charging systems, robotics, embedded systems, and DIY renewable energy projects.
