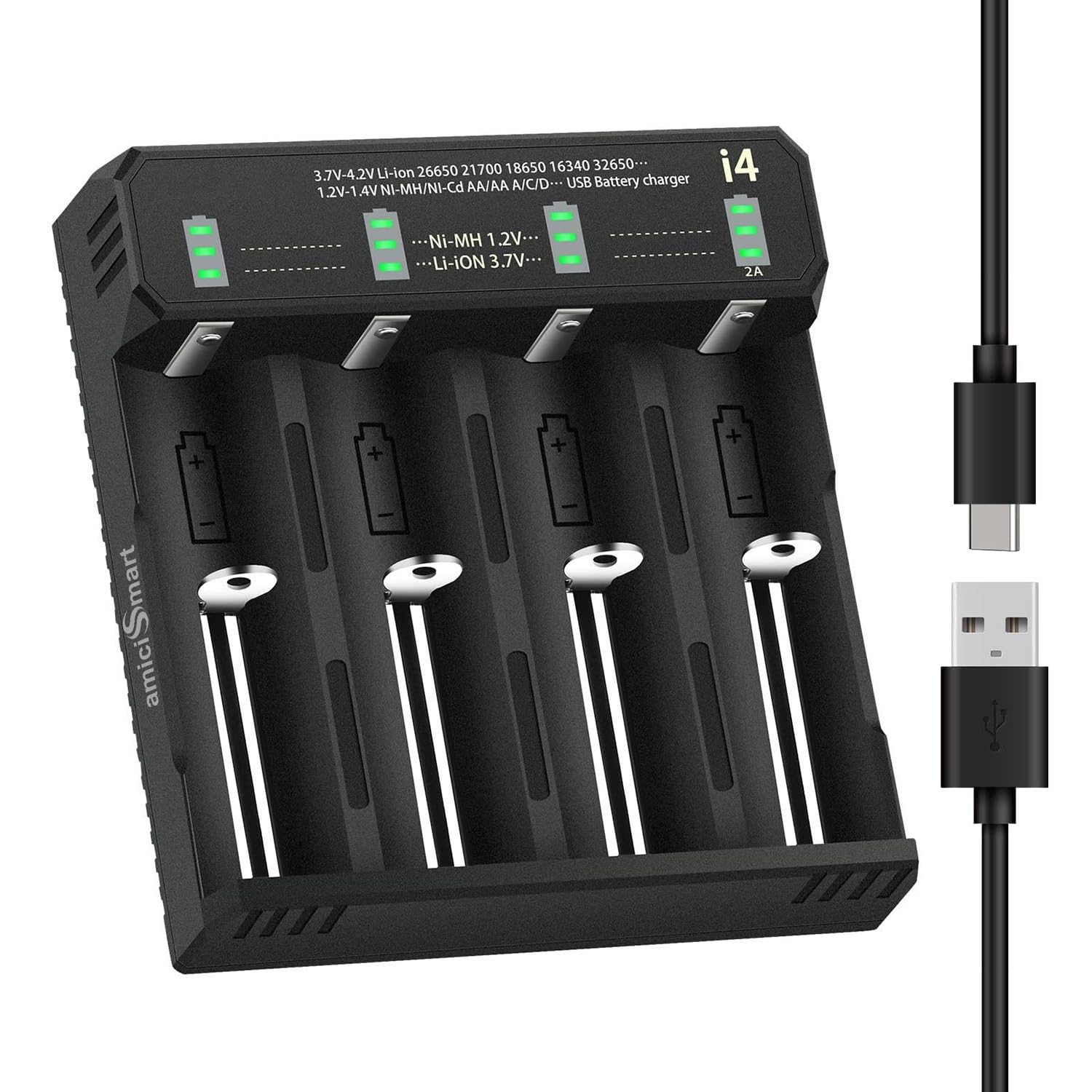

18650 Battery 4 Cell Charger Module

The 18650 Battery 4 Cell Charger Module is a dedicated charging board designed to safely charge up to four 18650 lithium-ion rechargeable batteries simultaneously. It provides a stable and controlled charging process, ensuring that each battery is charged efficiently while protecting against common charging issues such as overcharging, overcurrent, and short circuits. This module is widely used in DIY battery packs, portable power banks, solar energy storage systems, robotics, IoT devices, and embedded electronics projects.

The charger module is designed specifically for 3.7V rechargeable 18650 lithium-ion cells and supports simultaneous charging of four batteries. Depending on the module design, the batteries may be configured in parallel (1S) or series (4S), allowing it to meet the requirements of different battery pack applications. The module distributes charging current evenly to ensure safe and balanced charging performance.

The 4 Cell 18650 Charger Module typically accepts power from a DC power adapter or USB power source, depending on the model. It uses an intelligent charging circuit that automatically manages the charging process using the constant current/constant voltage (CC/CV) charging method, which helps maximize battery life and charging efficiency.

Many versions of the module include LED status indicators that display charging progress. These indicators usually show when charging is in progress and when all batteries are fully charged, allowing users to monitor the charging status easily.

The module incorporates multiple safety features, including overcharge protection, overcurrent protection, short-circuit protection, reverse polarity protection, and thermal protection. These built-in protections help prevent battery damage, improve charging safety, and increase the overall lifespan of lithium-ion cells.

The 18650 Battery 4 Cell Charger Module is compatible with a wide range of rechargeable 18650 Li-ion batteries and is commonly used in battery backup systems, portable power banks, DIY battery packs, emergency lighting, robotics, Arduino projects, ESP32 projects, Raspberry Pi systems, solar-powered devices, electric vehicles, wireless equipment, IoT applications, embedded systems, and portable electronic devices.

Its compact PCB design allows easy installation into custom battery enclosures and electronic products. The module is simple to integrate into new designs and is suitable for both prototype development and commercial battery-powered applications.

The 18650 Battery 4 Cell Charger Module is an excellent choice for engineers, students, hobbyists, and electronics developers who require a reliable and efficient charging solution for multiple lithium-ion batteries. Its intelligent charging circuit, comprehensive safety protections, stable charging performance, and compact design make it ideal for modern battery management systems and portable power applications.
