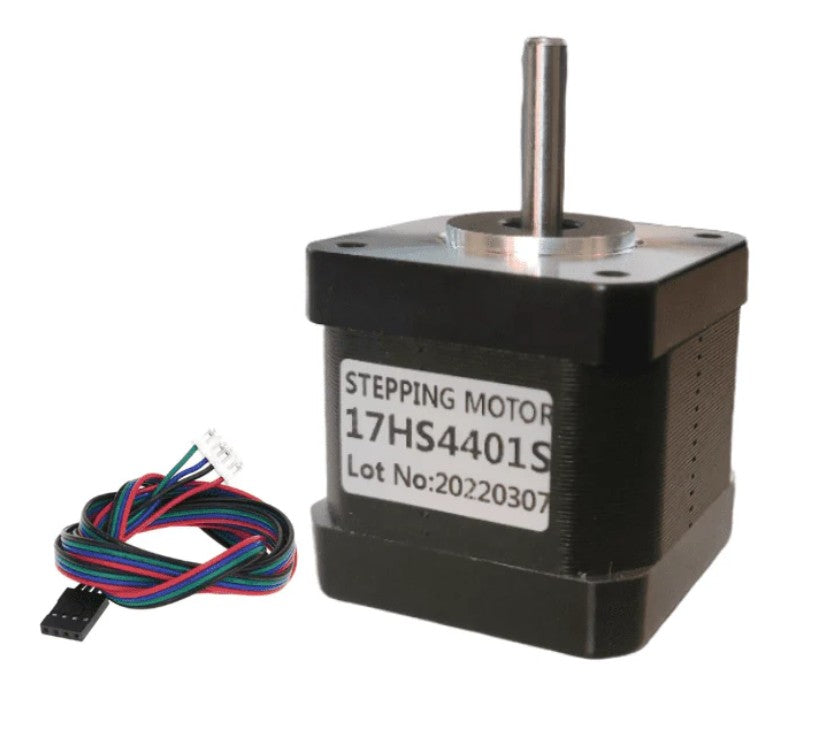

17HS4401S NEMA 17 Stepper Motor

The 17HS4401S NEMA 17 Stepper Motor is a high-precision bipolar stepper motor designed for applications that require accurate position control, smooth rotational movement, and reliable motion performance. It is widely used in 3D printers, CNC machines, robotics, automation systems, laser engravers, and embedded motion-control projects where precise shaft positioning and repeatable movement are essential.

This motor belongs to the NEMA 17 category, which refers to the standardized faceplate dimension of approximately 43.2 mm × 43.2 mm. Its compact size combined with strong holding torque makes it suitable for both industrial systems and DIY electronics projects where space efficiency and performance are important.

The 17HS4401S operates using stepper motor technology, meaning the shaft rotates in small, fixed angular increments called steps. Unlike conventional DC motors that rotate continuously when powered, a stepper motor moves in controlled step positions, allowing highly accurate control over movement and positioning without requiring additional position sensors in many applications.

This motor features a standard step angle of 1.8 degrees, which means the shaft completes one full revolution in:

\frac{360^\circ}{1.8^\circ}=200\ \text{steps per revolution}

This 200-step-per-revolution configuration enables smooth, precise, and repeatable motion control suitable for automated positioning systems and precision machinery.

The motor uses a bipolar 4-wire configuration, which allows efficient current control through stepper motor driver modules. Bipolar stepper motors generally provide higher torque and improved efficiency compared to unipolar designs, making them highly suitable for demanding motion-control applications.

The 17HS4401S provides a holding torque of approximately 44 N·cm (62 oz·in), allowing it to maintain shaft position firmly even when stationary. This holding capability is particularly important in CNC systems, robotic arms, and 3D printers where precise positioning must be maintained under load conditions.

The motor operates at a rated current of approximately 1.68 A per phase, enabling strong electromagnetic force generation for stable movement and reliable torque output. Because of this current requirement, the motor is typically controlled using dedicated stepper motor driver modules such as:

• A4988

• DRV8825

• TB6600

• TMC2208

• TMC2209

These drivers regulate current flow, generate stepping signals, and support microstepping for smoother and quieter operation.

The motor includes a 5 mm output shaft, making it compatible with pulleys, couplers, gears, lead screws, timing belts, and various mechanical drive systems used in precision motion applications.

One of the major advantages of stepper motors is their ability to provide open-loop position control. By counting input pulses, the controller can accurately determine shaft position without requiring encoder feedback in many applications. This simplifies system design while maintaining excellent positioning accuracy.

The 17HS4401S is widely compatible with embedded development platforms such as Arduino Uno R3, Arduino Nano Board V3, ESP32 controllers, STM32 systems, and Raspberry Pi 4 Model B when used with suitable stepper driver modules.

In 3D printers, the motor is commonly used for controlling X, Y, and Z axis movement as well as filament extrusion systems. Its precise stepping capability ensures accurate layer positioning and smooth printing performance.

In CNC machines, the stepper motor drives lead screws and mechanical axes for accurate cutting, engraving, milling, and positioning operations. The stable torque output and repeatable motion make it highly suitable for automated machining systems.

Robotics projects use the motor for robotic joints, pan-tilt mechanisms, autonomous navigation systems, and precision movement applications where controlled angular motion is required.

The motor is also widely used in automation systems such as conveyor mechanisms, linear actuators, positioning systems, plotters, and smart manufacturing equipment.

Typical applications of the 17HS4401S NEMA 17 Stepper Motor include:

• 3D printers

• CNC machines and routers

• Laser engravers

• Robotics and robotic arms

• Pan-tilt systems

• Plotters and drawing machines

• Conveyor automation systems

• Precision positioning systems

• Camera sliders and motion rigs

• DIY automation projects

• Educational robotics and STEM kits

The motor supports microstepping control when paired with compatible drivers. Microstepping divides each full step into smaller increments, resulting in smoother motion, reduced vibration, and quieter operation. This is especially important in precision systems such as 3D printers and CNC machines.

Another major advantage of the stepper motor is its ability to maintain stable positioning even at low rotational speeds, unlike many conventional DC motors that may struggle with low-speed control.

The compact design and standardized mounting dimensions simplify integration into mechanical systems, allowing easy replacement and compatibility with a wide range of brackets, couplers, and accessories.

Because the motor generates heat during operation, especially under high current or continuous load conditions, proper driver configuration and cooling solutions are recommended for long-term reliability and performance.

The widespread popularity of the NEMA 17 platform means extensive community support is available. Numerous tutorials, Arduino libraries, CNC firmware examples, and project resources help simplify integration for beginners and advanced developers alike.

Educational institutions frequently use NEMA 17 stepper motors to teach concepts related to electromechanical systems, motion control, automation engineering, CNC programming, and robotics design. Students gain hands-on experience with pulse-based motion control and automated mechanical systems.

Overall, the 17HS4401S NEMA 17 Stepper Motor is a precise, durable, and highly efficient motion-control solution designed for applications requiring accurate positioning and stable mechanical performance. Its compact NEMA 17 frame, 1.8° step angle, strong holding torque, bipolar operation, and compatibility with popular controllers and driver modules make it an excellent choice for professionals, students, hobbyists, and engineers developing advanced robotics, CNC, automation, and embedded motion-control systems.
