16-Bit WS2812 5050 RGB LED Ring

The 16-Bit WS2812 5050 RGB LED Ring is a circular LED module that contains 16 individually addressable WS2812B 5050 RGB LEDs arranged in a ring. Each LED integrates a full-color RGB LED and a built-in intelligent driver IC, allowing every LED to be controlled independently using a single digital data line. This compact LED ring is widely used in Arduino projects, robotics, IoT devices, wearable electronics, decorative lighting, interactive displays, smart lighting systems, educational projects, and DIY electronics.

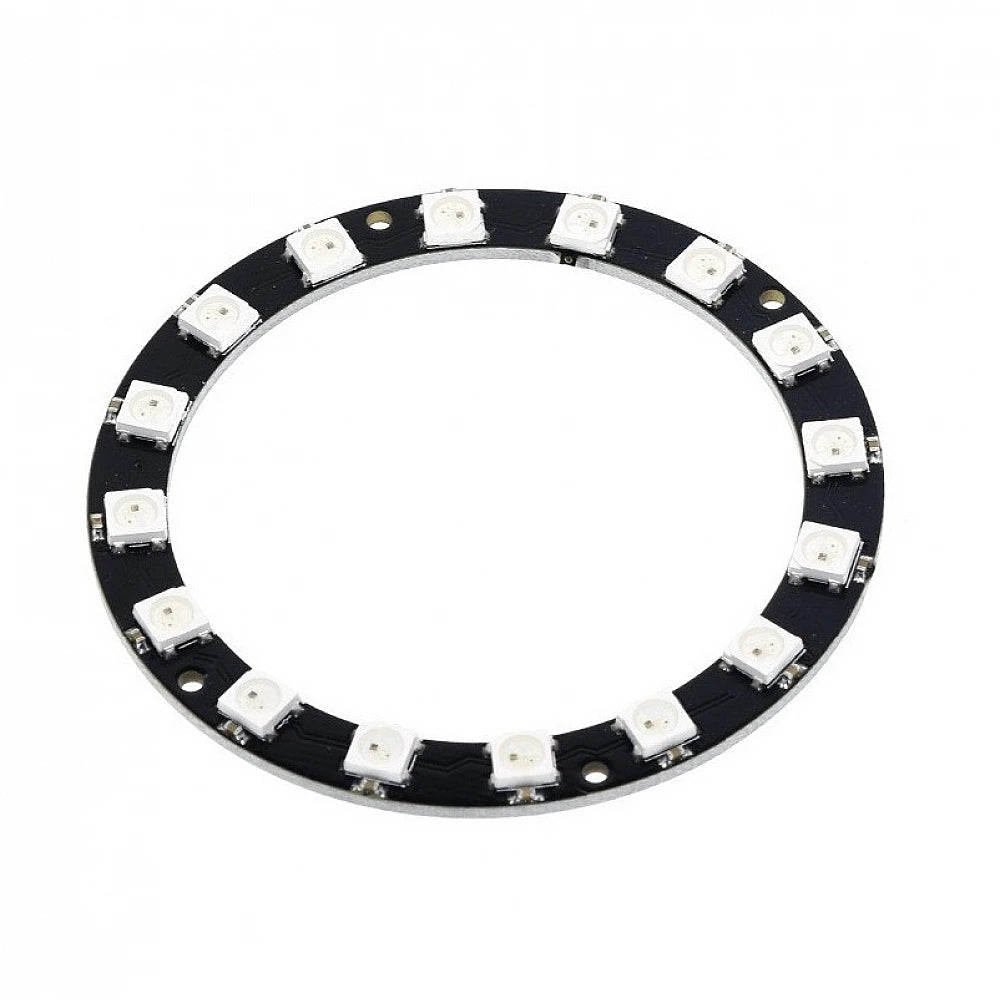

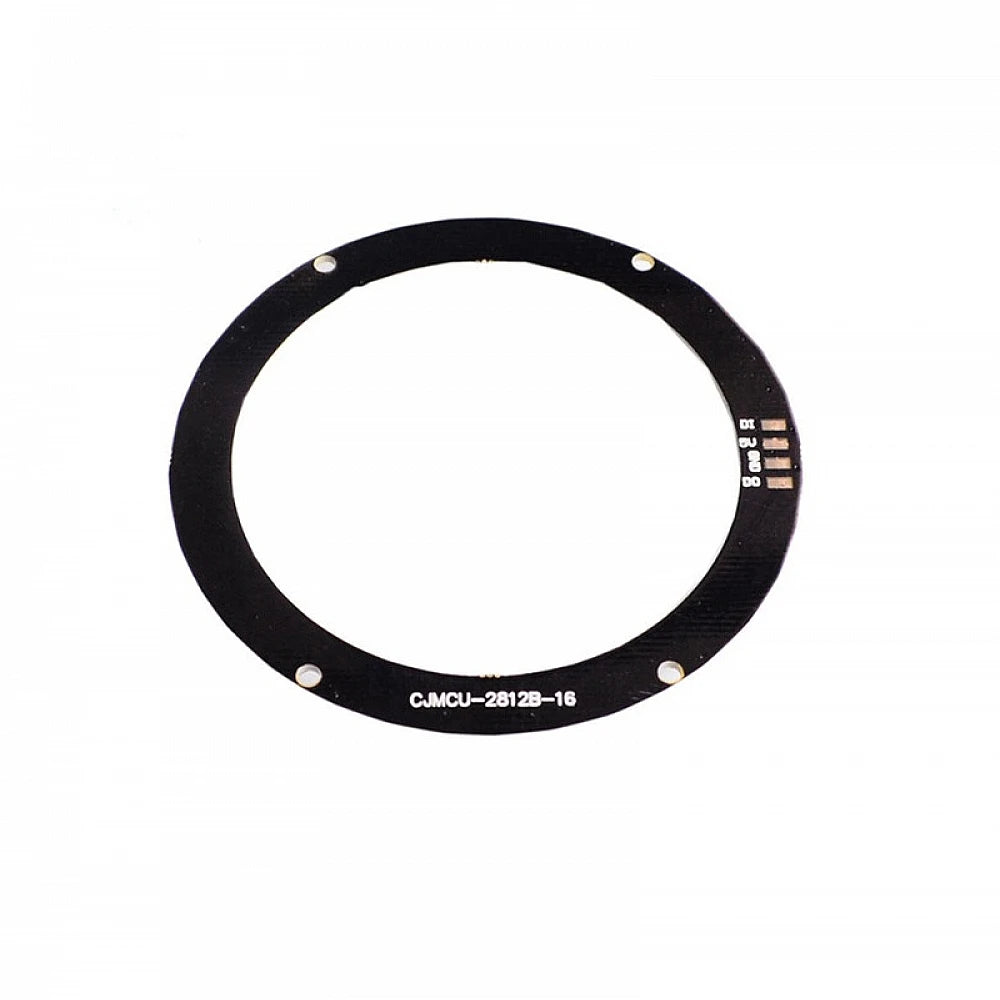

The module is built on a circular printed circuit board (PCB) and consists of 16 WS2812B 5050 RGB LEDs, power and ground connections, data input (DIN) and data output (DOUT) pins, bypass capacitors, copper traces, and mounting holes for easy installation. Each LED contains integrated Red, Green, and Blue LEDs along with an intelligent control IC that enables individual pixel control.

The working principle of the 16-Bit WS2812 RGB LED Ring is based on single-wire serial communication. A microcontroller sends digital data through the Data Input (DIN) pin. Each WS2812B LED receives its own 24-bit color data (8 bits each for Red, Green, and Blue), displays the assigned color, and passes the remaining data to the next LED in the chain through the Data Output (DOUT) pin. This allows each LED to display a different color and brightness, enabling complex lighting effects, animations, and patterns.

Typical specifications include:

• Product Type: Addressable RGB LED Ring

• Model: WS2812B

• Number of LEDs: 16

• LED Package: 5050 SMD RGB LED

• Shape: Circular Ring

• Operating Voltage: 5V DC

• Communication Protocol: Single-Wire Serial

• Data Pins: DIN (Data In), DOUT (Data Out)

• Color Depth: 24-bit (8-bit Red, 8-bit Green, 8-bit Blue)

• Maximum Colors: 16.7 Million Colors

• PCB Material: FR4 Printed Circuit Board

• Mounting: Through-Hole Mounting Holes

• Operating Temperature: Suitable for standard indoor electronic applications

The module supports various lighting effects, including:

• Static Colors

• Rainbow Effects

• Color Chasing

• Running Lights

• Rotating Ring Effects

• Breathing Effects

• Fade In / Fade Out

• Flashing Patterns

• Pulse Effects

• Custom RGB Animations

• Brightness Control

• Music Synchronization (with compatible controller)

The 16-Bit WS2812 RGB LED Ring is compatible with:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontrollers

• AVR Microcontrollers

• Teensy Development Boards

• FastLED Library

• Adafruit NeoPixel Library

The applications of the 16-Bit WS2812 5050 RGB LED Ring include robotics, smart lighting, wearable electronics, digital clocks, circular displays, status indicators, gaming projects, IoT systems, embedded systems, educational electronics, engineering prototypes, interactive art installations, decorative lighting, holiday decorations, laboratory experiments, STEM education, and DIY electronics.

The advantages of the LED ring include individual LED control, single-wire communication, support for 16.7 million colors, compact circular design, high brightness, low wiring complexity, programmable lighting effects, easy integration with microcontrollers, expandable daisy-chain capability, low power consumption, and long service life.

Safety Precautions

• Use a regulated 5V DC power supply.

• Observe correct polarity when connecting VCC and GND.

• Connect the controller to the DIN pin only.

• Avoid applying voltages higher than the specified operating voltage.

• Use a suitable current-limiting resistor on the data line and a decoupling capacitor across the power supply for reliable operation in larger installations.

• Prevent electrostatic discharge (ESD) when handling the module.

• Disconnect power before making or changing connections.

• Avoid short circuits and moisture exposure.
