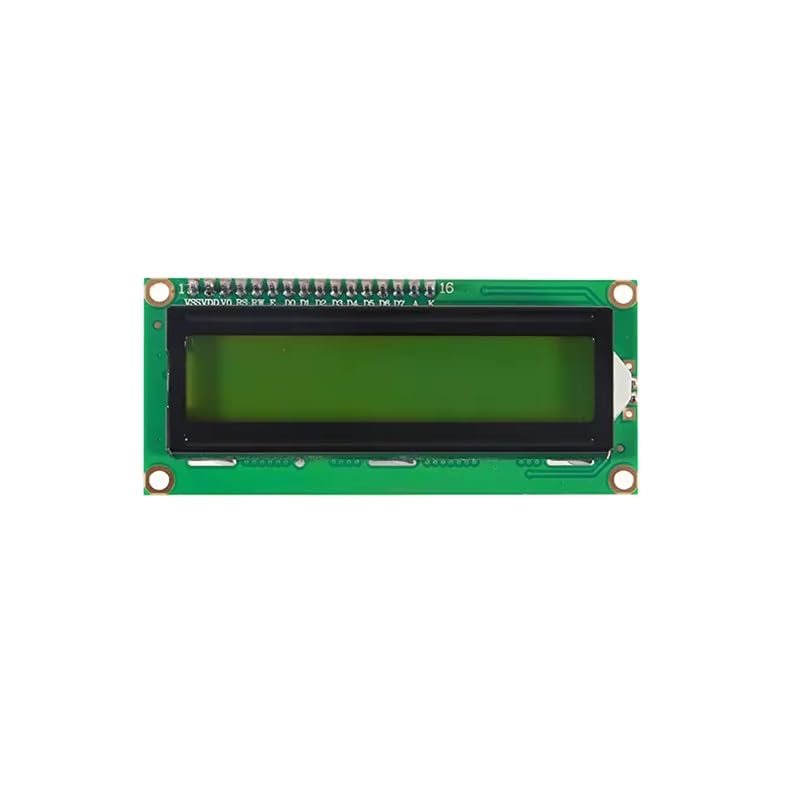

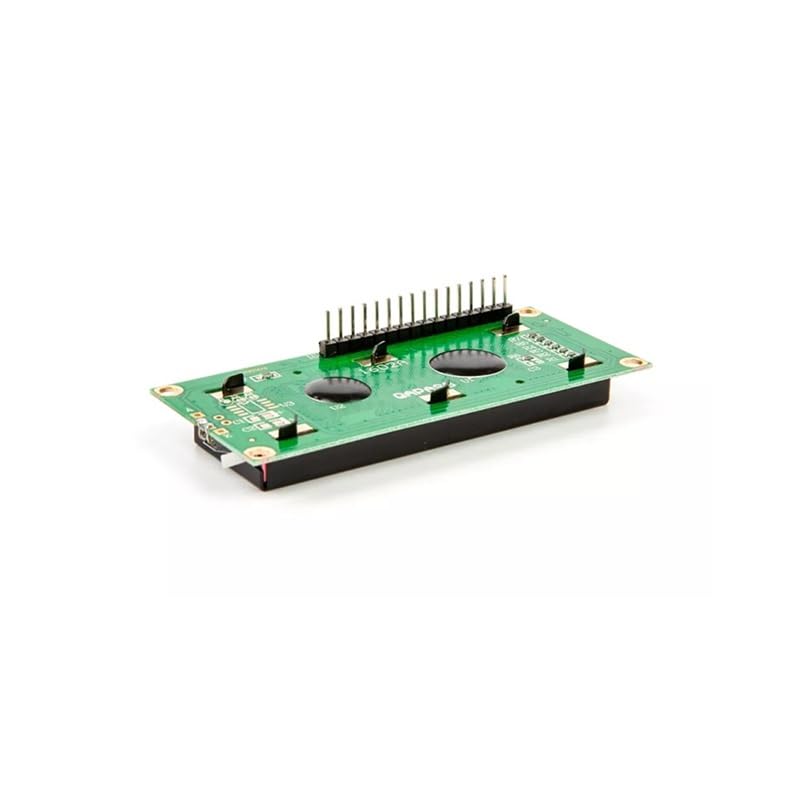

16×2 Character Green Backlight LCD Display

The 16×2 Character Green Backlight LCD Display is a popular alphanumeric liquid crystal display module designed to display text, numbers, symbols, and custom characters in electronic and embedded system applications. The display is capable of showing 16 characters on each of its 2 rows, providing a total display capacity of 32 characters. Its green LED backlight and high-contrast black characters ensure excellent readability in both bright and low-light environments.

This LCD module is built around the industry-standard HD44780-compatible controller, making it compatible with a wide range of microcontrollers and development platforms, including Arduino, Raspberry Pi (with suitable interface), ESP32, ESP8266, STM32, AVR, PIC, 8051, and other embedded systems. Because of its widespread compatibility, it is one of the most commonly used display modules for electronics education, industrial automation, robotics, and DIY projects.

The display supports both 4-bit and 8-bit parallel communication modes, allowing designers to optimize either communication speed or the number of microcontroller I/O pins used. In 4-bit mode, only four data lines are required, making it ideal for applications where GPIO pins are limited. In 8-bit mode, faster data transfer can be achieved by using all eight data lines.

The module includes a built-in green LED backlight, which improves visibility under various lighting conditions. The display contrast can be adjusted easily using an external potentiometer connected to the contrast pin, allowing users to obtain clear and sharp character visibility. In addition to standard ASCII characters, the HD44780 controller also supports custom character generation, enabling users to create unique symbols and icons for specialized applications.

Operating from a standard 5V DC power supply, the module consumes very little power while delivering reliable performance. Its standard 16-pin interface makes wiring simple, and it can also be used with I2C LCD interface adapters (sold separately) to reduce the number of required microcontroller pins.

The 16×2 Character Green Backlight LCD Display is widely used in electronic instruments, industrial control systems, automation equipment, robotics, home automation, digital measurement devices, security systems, vending machines, medical equipment, and educational electronics projects. It provides an easy and cost-effective solution for displaying real-time information such as sensor readings, menus, messages, system status, temperature, voltage, countdown timers, and user instructions.

Working Principle

The LCD module uses liquid crystal technology to display characters.

• The microcontroller sends character data through the parallel interface.

• The HD44780-compatible controller processes the received data.

• The liquid crystal cells selectively block or transmit light to form characters.

• The green LED backlight illuminates the display for improved visibility.

• Users can adjust the display contrast using an external potentiometer.

Key Features

• Displays 16 characters × 2 lines

• Green LED backlight for enhanced visibility

• Alphanumeric character display

• HD44780-compatible controller

• Supports both 4-bit and 8-bit parallel interface modes

• Adjustable display contrast using a potentiometer

• Operating voltage: 5V DC

• Low power consumption

• High display clarity and contrast

• Supports custom character generation

• Standard 16-pin interface

• Compatible with I2C LCD adapters (optional)

• Durable and reliable construction

• Easy integration with microcontrollers

Applications

The 16×2 Character Green Backlight LCD Display is commonly used in:

• Arduino projects

• ESP32 and ESP8266 projects

• Raspberry Pi applications

• Embedded systems

• Industrial automation

• Robotics

• Home automation systems

• Digital measuring instruments

• Temperature monitoring systems

• Voltage and current display units

• Security systems

• Medical devices

• Consumer electronics

• Educational electronics projects

• DIY electronics

• Menu-driven control systems

Specifications

• Product Type: Character LCD Display Module

• Display Size: 16 Characters × 2 Lines

• Backlight Color: Green

• Display Type: Alphanumeric LCD

• Controller: HD44780 Compatible

• Operating Voltage: 5V DC

• Communication Interface: 4-bit or 8-bit Parallel

• Contrast Adjustment: External Potentiometer

• Interface Pins: Standard 16-pin Header
