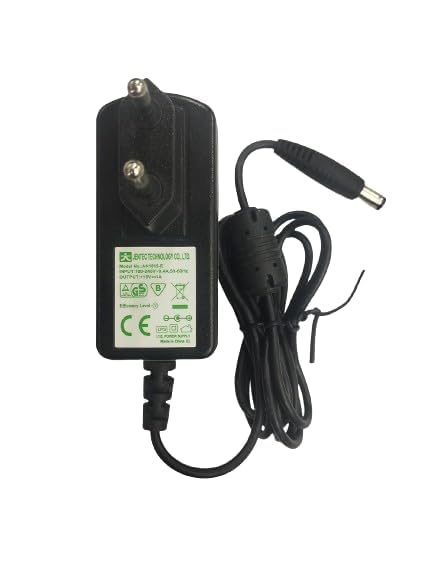

15V 1A DC Power Supply Adapter

The 15V 1A DC Power Supply Adapter is an AC-to-DC regulated switching power adapter designed to convert high-voltage AC mains electricity into a stable 15V DC output with a maximum current of 1 Ampere (1A). It is widely used to power electronic devices, communication equipment, development boards, CCTV accessories, LED lighting, audio equipment, routers, laboratory instruments, and DIY electronics projects. The adapter provides a reliable and efficient power source while protecting connected devices from voltage fluctuations.

The adapter consists of a switch-mode power supply (SMPS) circuit, step-down transformer, rectifier, filter capacitors, voltage regulator, PWM controller, protection circuitry, DC output cable, and a DC barrel plug (commonly 5.5 mm × 2.1 mm, depending on the model). It is enclosed in a durable, insulated plastic housing that provides electrical safety and long-term reliability.

The working principle of the 15V 1A DC Power Supply Adapter begins when 100–240V AC mains voltage is supplied to the adapter. The internal SMPS circuit converts the AC input into high-frequency DC, which is then regulated and filtered to produce a stable 15V DC output. The regulated output minimizes voltage ripple and electrical noise, ensuring safe and consistent operation of connected electronic devices. The adapter automatically adjusts to variations in input voltage while maintaining a constant output voltage.

The adapter provides a maximum output of 15V DC at 1A, delivering up to 15 Watts of power. It is suitable for powering devices that require 15V DC and draw 1A or less. Connecting devices that require higher current than the adapter's rated capacity may cause overheating or trigger the built-in protection circuits.

Most adapters are equipped with a center-positive DC barrel connector, making them compatible with a wide range of electronic equipment. Users should always verify the required voltage, current, connector size, and polarity before connecting the adapter to a device.

The adapter incorporates multiple safety features, including:

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Overload protection

• Thermal (over-temperature) protection

These protection mechanisms help prevent damage to both the adapter and the connected equipment, ensuring safe and reliable operation.

The applications of the 15V 1A DC Power Supply Adapter include powering routers, CCTV accessories, LED lighting systems, audio amplifiers, wireless communication devices, laboratory instruments, Arduino and embedded electronics (through appropriate voltage regulation), robotics, IoT devices, automation systems, development boards, testing equipment, educational electronics, prototype development, and DIY electronics projects.

The advantages of the adapter include stable regulated 15V DC output, high energy efficiency, compact and lightweight design, universal AC input compatibility, low ripple and electrical noise, reliable performance, multiple built-in safety protections, durable insulated housing, easy plug-and-play operation, low standby power consumption, and long service life.

In conclusion, the 15V 1A DC Power Supply Adapter is a dependable and efficient power supply solution for electronic devices requiring a stable 15V DC source. Its regulated output, built-in protection features, compact design, and compatibility with a wide range of electronics make it an excellent choice for automation systems, embedded projects, communication equipment, laboratory applications, and DIY electronics.
