12V Wireless Relay 1 Channel with Remote Control

The 12V Wireless Relay 1 Channel with Remote Control is a wireless switching module that allows users to remotely control electrical devices using a handheld RF (Radio Frequency) remote transmitter. It is designed to switch one electrical load independently and is widely used in home automation, industrial automation, smart lighting, wireless control systems, security systems, robotics, DIY electronics, and remote-operated equipment. The module eliminates the need for direct wiring between the control switch and the load, providing convenient and reliable wireless operation.

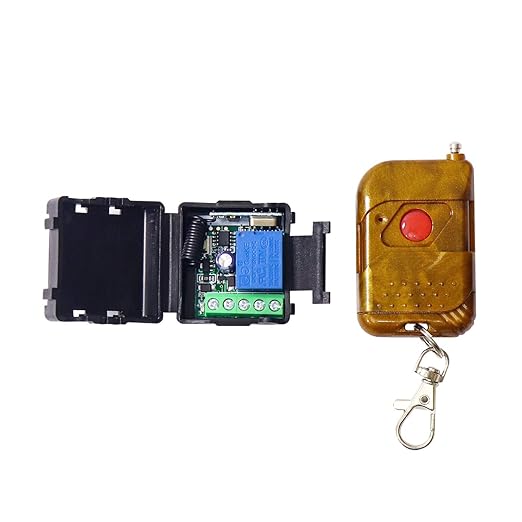

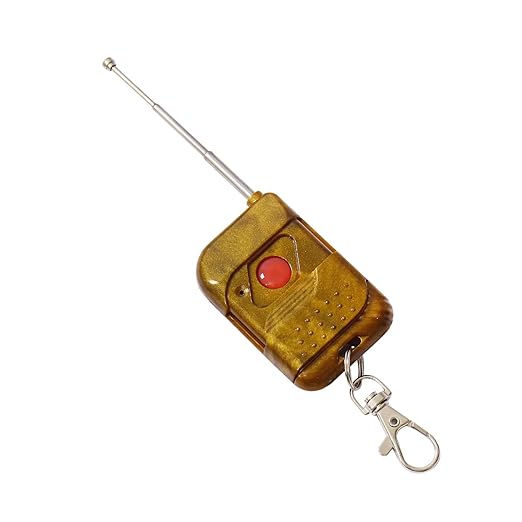

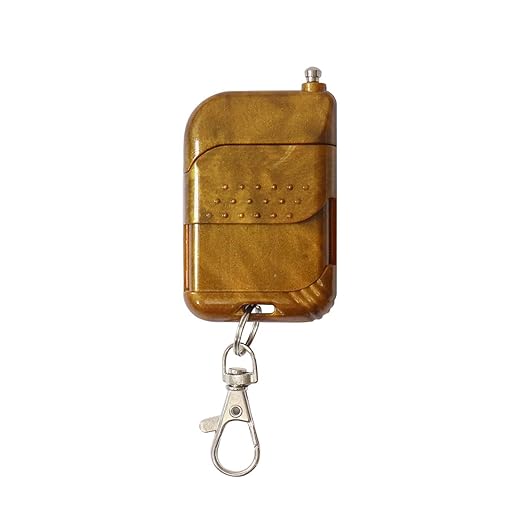

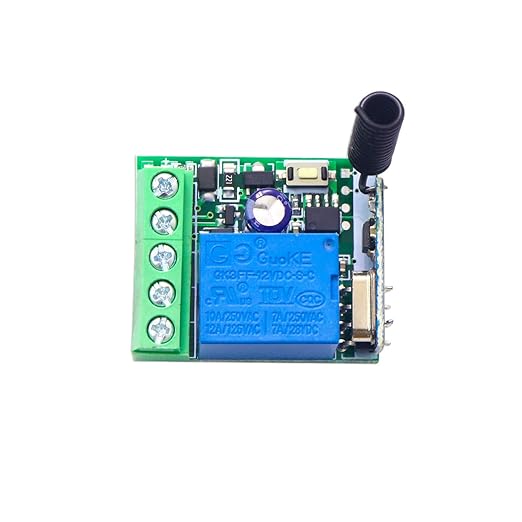

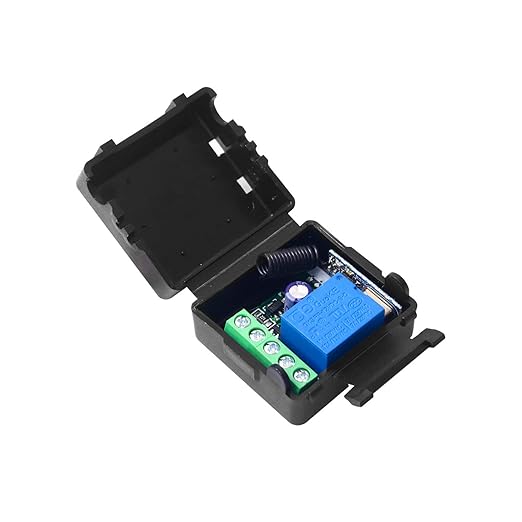

The system consists of a 1-channel relay receiver module, a wireless RF remote control transmitter, a 12V DC power input, an RF receiver circuit, a relay switching circuit, an antenna, status indicator LEDs, and relay output terminals. The relay includes Common (COM), Normally Open (NO), and Normally Closed (NC) terminals, allowing flexible connection of AC or DC electrical loads.

The working principle of the 12V Wireless Relay Module is based on radio frequency (RF) communication. When a button on the remote control is pressed, it transmits a coded RF signal, typically operating at 433 MHz (depending on the model). The receiver module detects and decodes the signal. If the received code matches the stored code, the onboard controller activates the relay. The relay then changes the state of its internal contacts, switching the connected electrical device ON or OFF. Depending on the module configuration, the relay can operate in momentary, toggle (self-locking), or latched (interlocking) modes.

The module operates from a 12V DC power supply and is capable of controlling both AC and DC electrical loads within the relay's rated voltage and current specifications. Most models use a relay rated for up to 10A at 250V AC or 10A at 30V DC, making them suitable for switching lights, fans, pumps, motors, solenoid valves, locks, and other electrical equipment.

The wireless remote provides a convenient operating range that is typically 20 to 100 meters in open areas, depending on the model, antenna design, and environmental conditions. Obstacles such as walls, metal structures, and electromagnetic interference may reduce the effective operating distance.

The module features learning code technology, allowing users to pair or reprogram compatible RF remote controls. Some versions support multiple paired remotes, enabling several users to control the same relay module.

The applications of the 12V Wireless Relay 1 Channel with Remote Control include home automation, wireless lighting control, automatic gates, garage door systems, wireless door locks, irrigation systems, water pump control, industrial automation, security systems, alarm systems, remote motor control, smart home projects, robotics, IoT systems, electronic prototypes, laboratory equipment, educational electronics, and DIY engineering projects.

The advantages of the module include wireless remote operation, easy installation, reliable RF communication, long operating range, low power consumption, high switching capacity, secure coded transmission, compact design, support for multiple operating modes, compatibility with various electrical loads, reusable remote pairing, and minimal maintenance.

In conclusion, the 12V Wireless Relay 1 Channel with Remote Control is a reliable and convenient wireless switching solution for remotely controlling electrical devices. Its RF-based communication, 12V operation, high relay switching capacity, and simple installation make it an ideal choice for home automation, industrial control, robotics, smart systems, and electronic projects requiring safe and efficient wireless switching.
