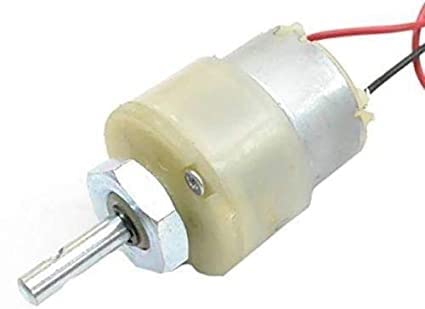

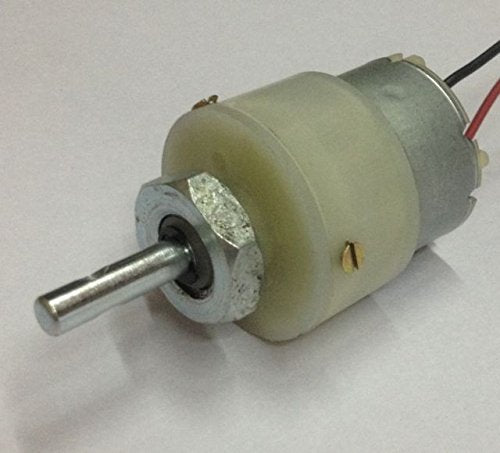

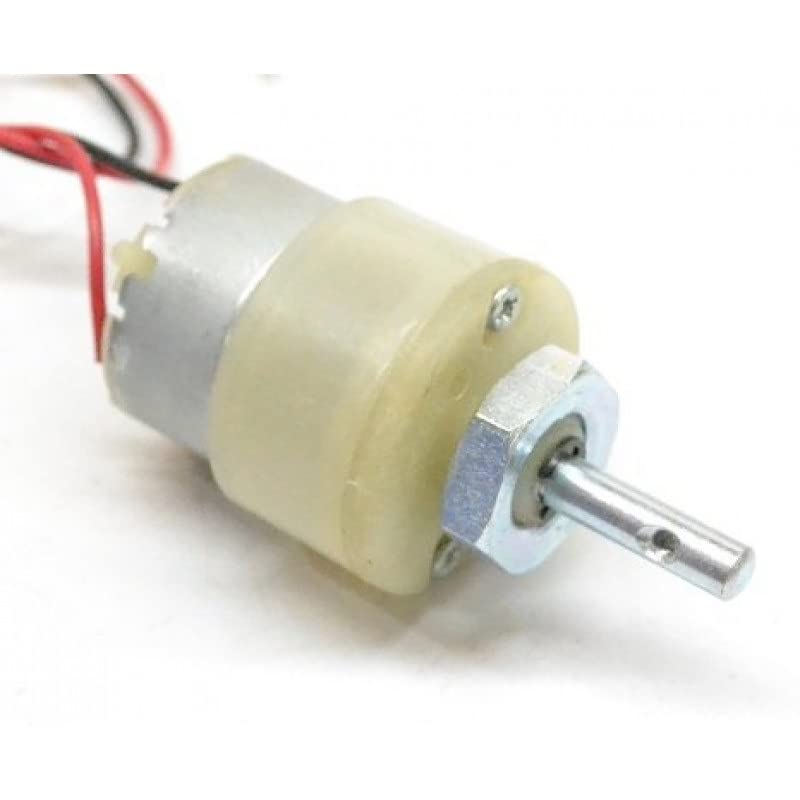

12V 200 RPM Geared DC Motor

The 12V 200 RPM Geared DC Motor is a compact and high-performance electric motor designed to deliver high torque with a controlled output speed of approximately 200 revolutions per minute (RPM). It combines a brushed DC motor with a built-in reduction gearbox, allowing it to provide greater torque than a standard DC motor while maintaining a stable and moderate rotational speed. This motor is widely used in robotics, industrial automation, smart vehicles, conveyor systems, automatic machines, educational electronics, and DIY engineering projects.

The motor consists of a brushed DC motor, a precision metal gearbox, gear train, armature (rotor), permanent magnets (stator), commutator, carbon brushes, output shaft, and a durable metal housing. The gearbox is permanently attached to the motor and contains multiple gears that reduce the motor's high rotational speed while increasing the output torque. This gear reduction enables the motor to move heavier loads smoothly and efficiently.

The working principle of the 12V 200 RPM Geared DC Motor is based on electromagnetic induction. When a 12V DC power supply is applied to the motor terminals, electric current flows through the armature windings, generating a magnetic field. This magnetic field interacts with the permanent magnets inside the motor, producing rotational force (torque). The motor initially rotates at a high speed, and the integrated gearbox reduces this speed through a series of reduction gears while significantly increasing the output torque. The output shaft then rotates at approximately 200 RPM, providing smooth, controlled, and powerful motion suitable for mechanical drive systems.

The motor operates on a 12V DC power supply and provides a balanced combination of speed and torque. The output shaft is designed for easy attachment of wheels, pulleys, gears, sprockets, couplings, and other mechanical components. The direction of rotation can be reversed by simply changing the polarity of the power supply, making the motor suitable for forward and reverse motion applications. Speed can also be controlled efficiently using Pulse Width Modulation (PWM) with compatible motor driver circuits.

The 200 RPM gear ratio offers slightly higher speed than a 150 RPM motor while still maintaining sufficient torque for driving robotic platforms, conveyor mechanisms, and automated equipment. It provides smooth acceleration, stable operation, and reliable performance under varying load conditions.

The motor is compatible with popular motor driver modules such as L293D, L298N, TB6612FNG, BTS7960, and MOSFET-based motor drivers. It can be easily controlled using microcontrollers including Arduino, ESP32, Raspberry Pi (through a motor driver), STM32, PIC, and AVR, making it suitable for embedded control systems and automation projects.

The applications of the 12V 200 RPM Geared DC Motor include robot cars, autonomous mobile robots, line-following robots, obstacle avoidance robots, conveyor belt systems, automatic doors, vending machines, robotic arms, smart agriculture equipment, industrial automation, material handling systems, motorized trolleys, educational robotics kits, engineering prototypes, embedded systems, and DIY mechanical projects.

The advantages of the 12V 200 RPM Geared DC Motor include high torque output, controlled rotational speed, durable metal gearbox, smooth operation, compact design, reversible rotation, efficient power transmission, PWM speed control compatibility, low maintenance, reliable performance, long service life, and easy integration with electronic control systems. Its balanced speed and torque make it suitable for a wide variety of robotic and automation applications.

In conclusion, the 12V 200 RPM Geared DC Motor is a reliable and efficient motor that provides controlled speed and high torque for numerous mechanical and electronic applications. Its integrated gearbox, durable construction, and compatibility with motor drivers and microcontrollers make it an excellent choice for robotics, industrial automation, embedded systems, educational projects, and DIY engineering applications.
