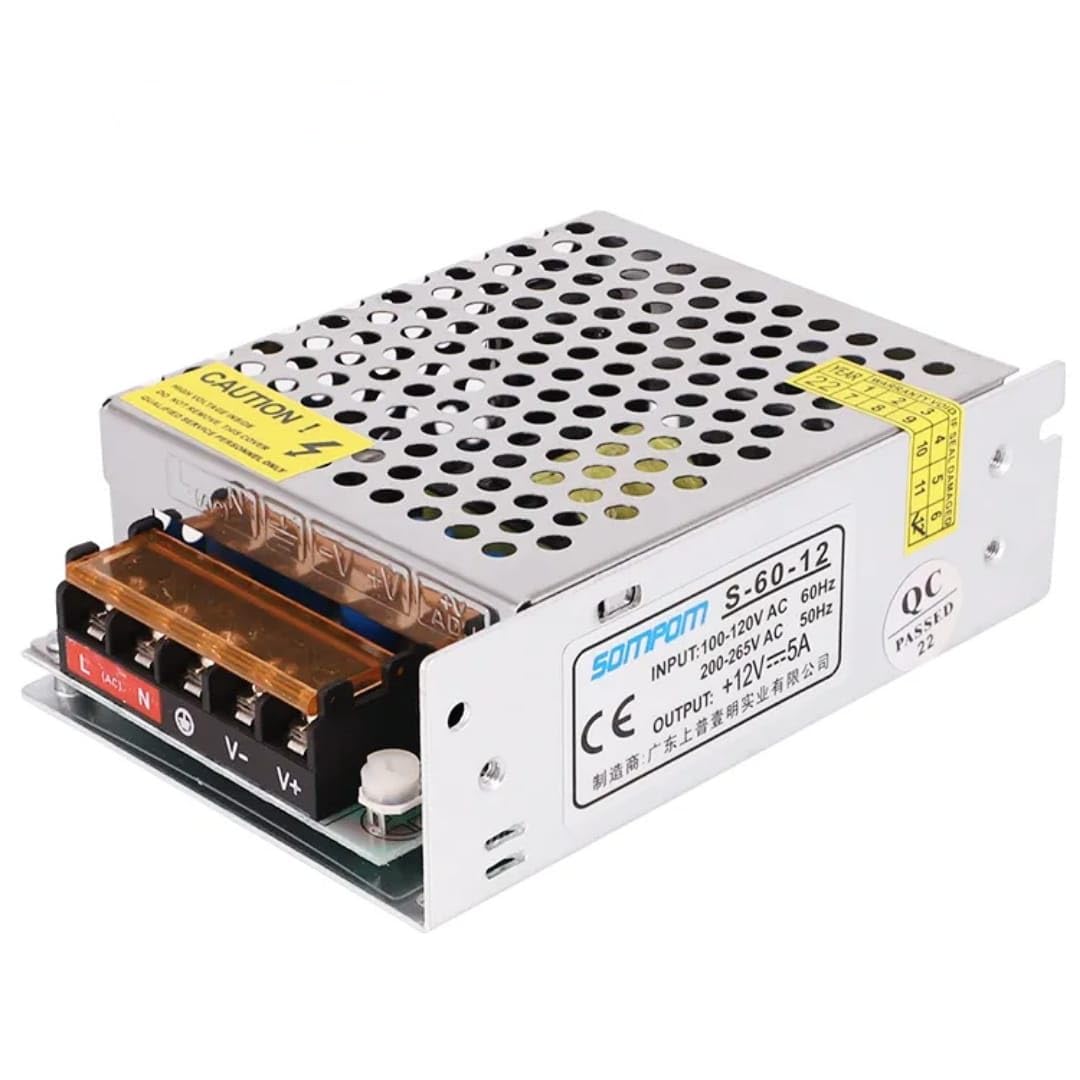

12V 5A SMPS Power Supply

The 12V 5A SMPS (Switched Mode Power Supply) is a high-efficiency AC-to-DC power supply designed to convert standard AC mains voltage into a stable 12V DC output with a maximum current capacity of 5 Amperes (5000mA). It is widely used to power LED lighting systems, CCTV cameras, industrial automation equipment, communication devices, Arduino and Raspberry Pi projects, robotics, 3D printers, DC motors, and other electronic devices that require a regulated 12V DC power source. Unlike traditional linear power supplies, an SMPS uses high-frequency switching technology to deliver efficient power conversion with lower heat generation, compact size, and improved energy efficiency.

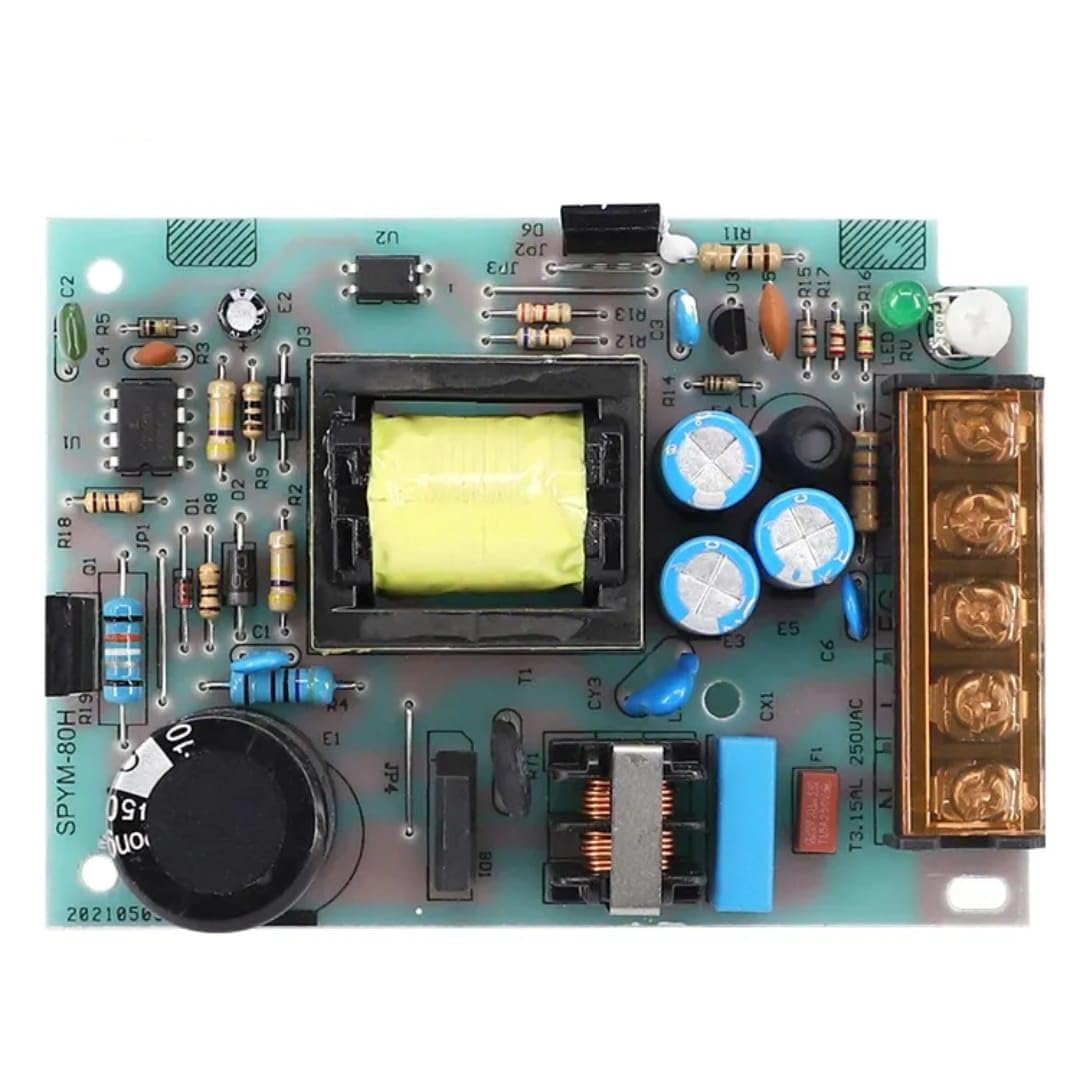

The power supply accepts a universal AC input voltage of 100–240V AC at 50/60Hz (or 110/220V AC depending on the model) and converts it into a regulated 12V DC output capable of delivering up to 5A of continuous current, providing a maximum output power of 60 Watts. It incorporates advanced switching circuitry that rectifies the AC input into DC, filters it, switches it at high frequency, and then regulates the output voltage through a transformer and feedback control circuit. This ensures a stable output voltage even when the input voltage or connected load varies.

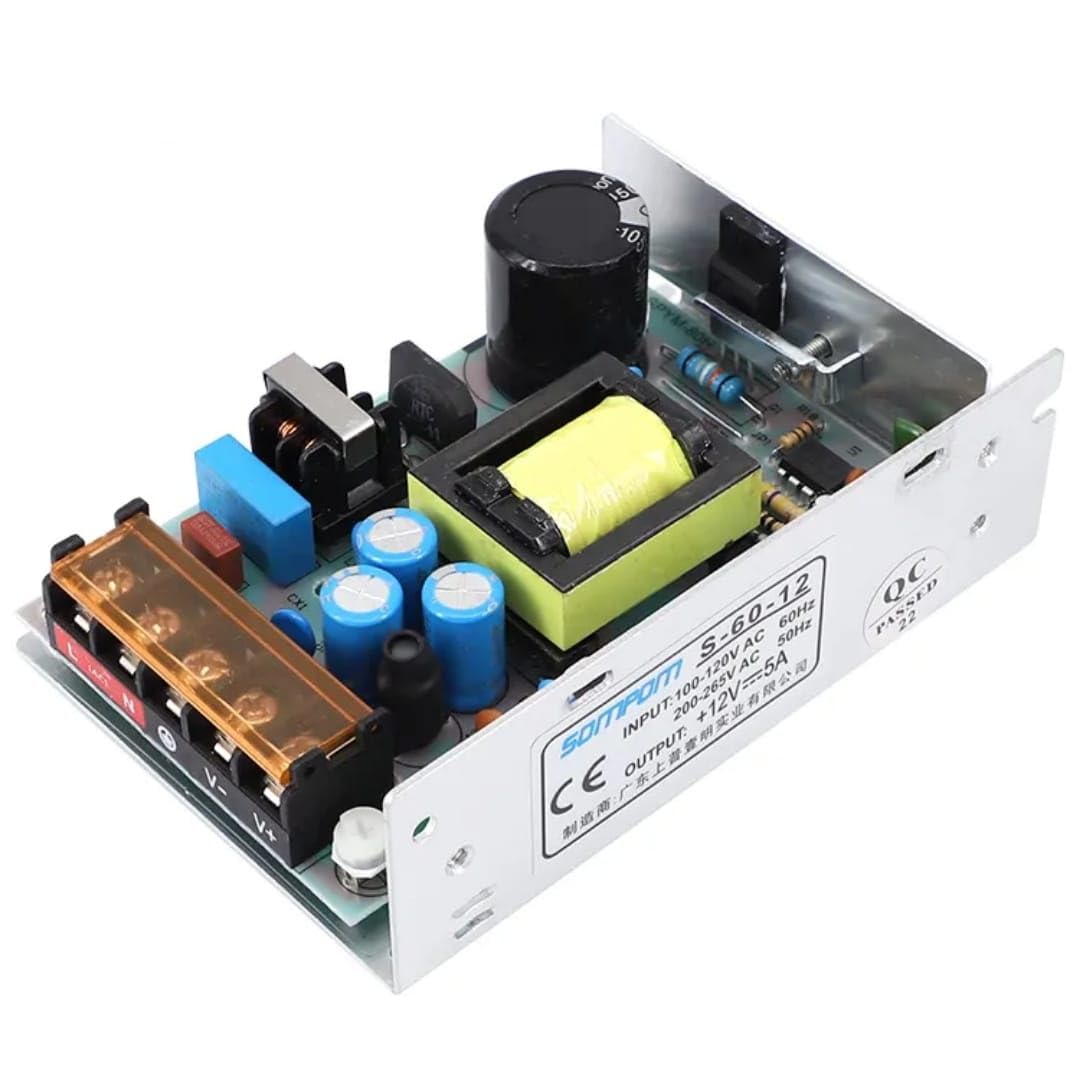

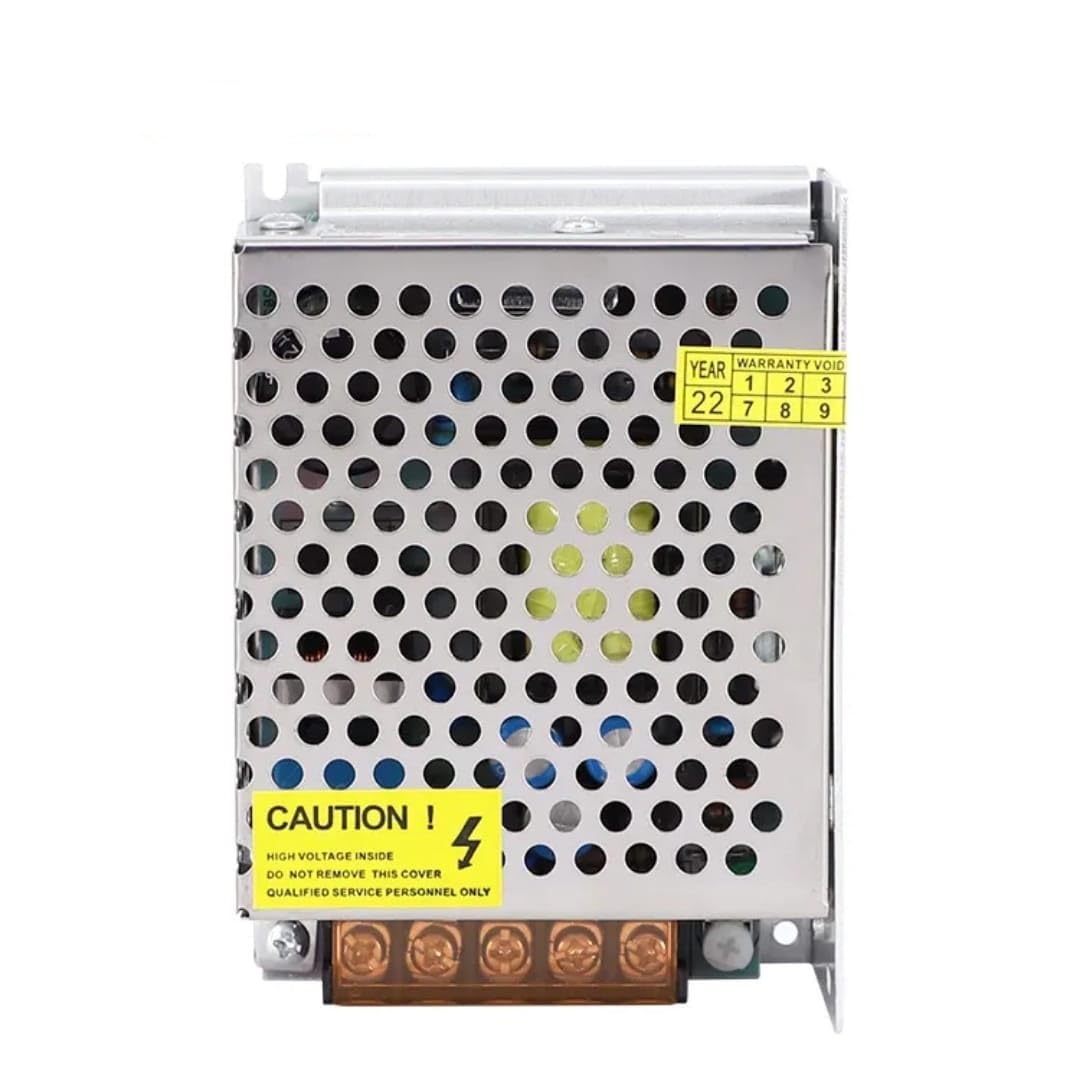

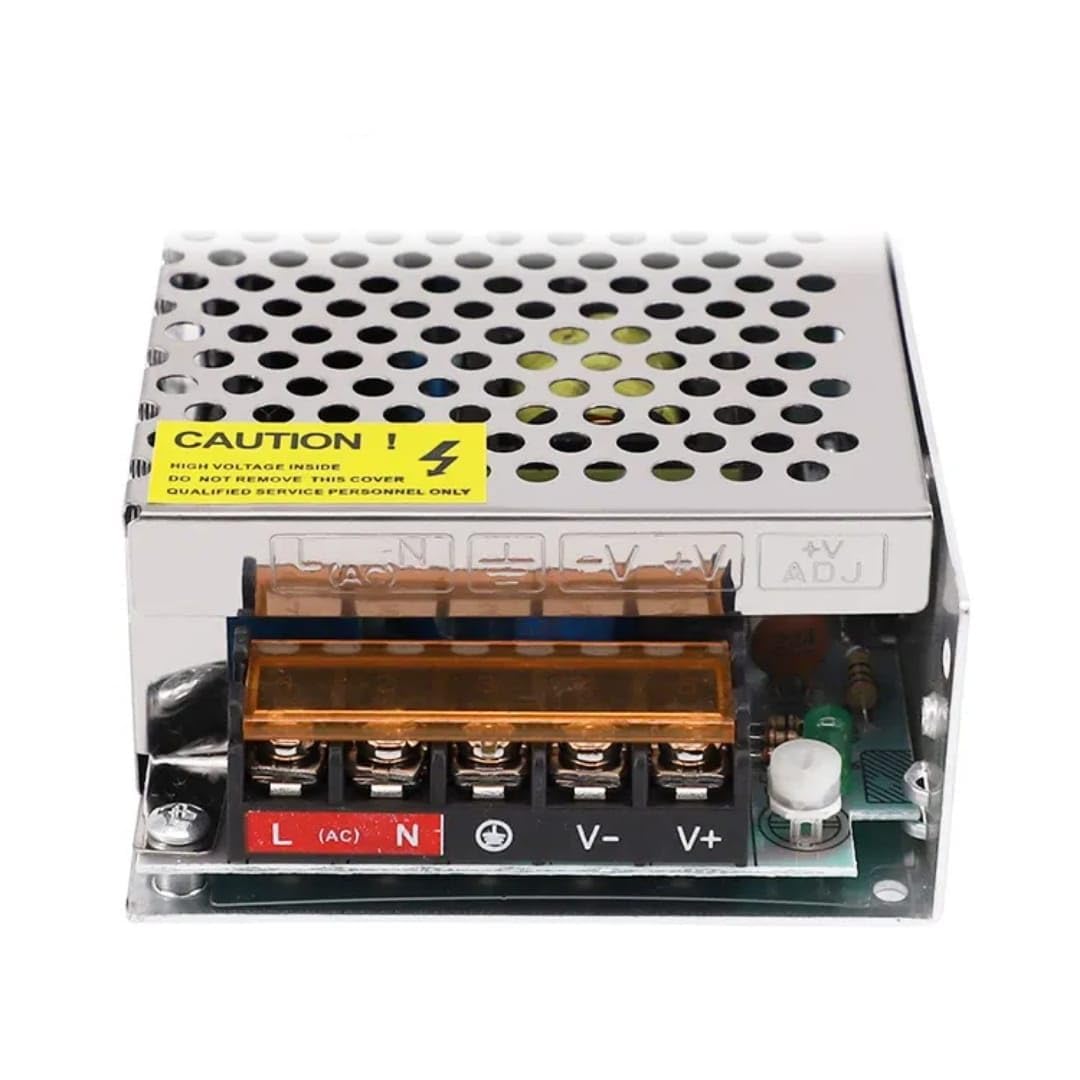

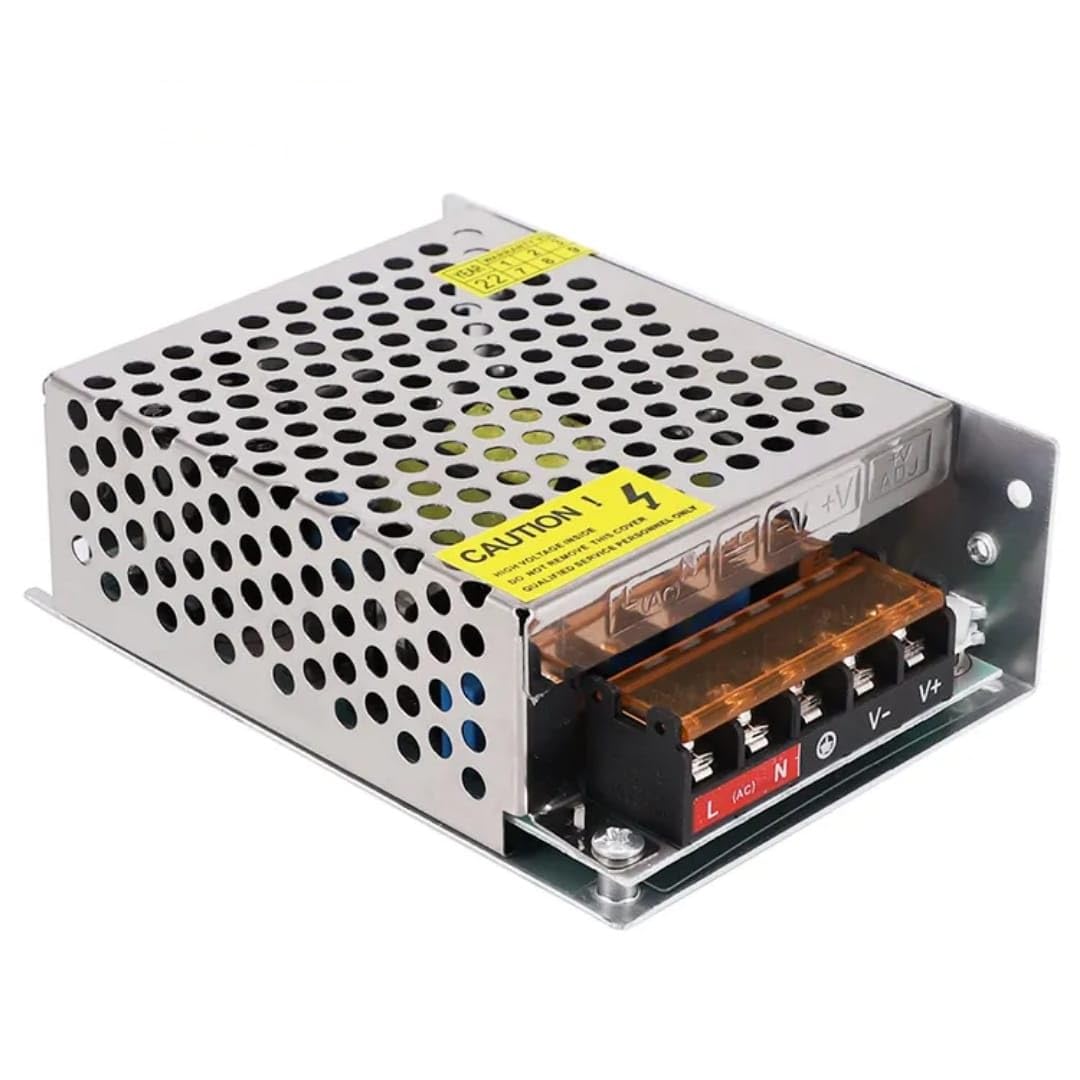

The 12V 5A SMPS is equipped with multiple built-in protection features such as overload protection, overvoltage protection, short-circuit protection, and overcurrent protection, helping safeguard both the power supply and the connected electronic devices. Its durable metal enclosure with ventilation holes enhances heat dissipation, while screw-type terminal blocks provide secure and convenient wiring for input and output connections.

Specifications

• Input Voltage: 100–240V AC, 50/60Hz (varies by model)

• Output Voltage: 12V DC

• Maximum Output Current: 5A (5000mA)

• Maximum Output Power: 60W

• Power Supply Type: Switched Mode Power Supply (SMPS)

• Efficiency: Typically 80–90%

• Cooling Method: Natural air cooling through ventilation

• Housing Material: Metal enclosure

• Output Connection: Screw terminal block

• Protection Features: Overload, Overvoltage, Overcurrent, and Short Circuit Protection

Features

• Stable regulated 12V DC output

• High efficiency with low power loss

• Compact and lightweight design

• Reliable continuous power delivery

• Wide AC input voltage compatibility

• Low heat generation

• Easy installation using screw terminals

• Built-in safety protection circuits

• Suitable for continuous operation

• Long service life

Applications

The 12V 5A SMPS Power Supply is widely used in:

• LED strip lighting and LED modules

• CCTV surveillance systems

• Arduino and Raspberry Pi projects

• Robotics and automation systems

• Industrial control equipment

• 3D printers

• DC motors and motor drivers

• Embedded system development

• Communication equipment

• Electronic testing and laboratory projects

• DIY electronics and prototyping

• Home automation systems

• Access control systems

• Electronic instruments

Advantages

• High power conversion efficiency

• Stable and regulated 12V DC output

• Compact size compared to linear power supplies

• Reduced heat generation

• Low energy consumption

• Built-in protection for safe operation

• Reliable performance for continuous use

• Easy to install and maintain

• Suitable for both professional and hobby electronics projects

The 12V 5A SMPS Power Supply is an efficient and dependable power solution for a wide range of electronic and electrical applications. Its regulated 12V DC output, 5A current capacity, compact design, and advanced protection features make it an ideal choice for powering LED lighting, security systems, embedded electronics, industrial equipment, robotics, and numerous DIY electronic projects requiring a stable and reliable DC power source.
