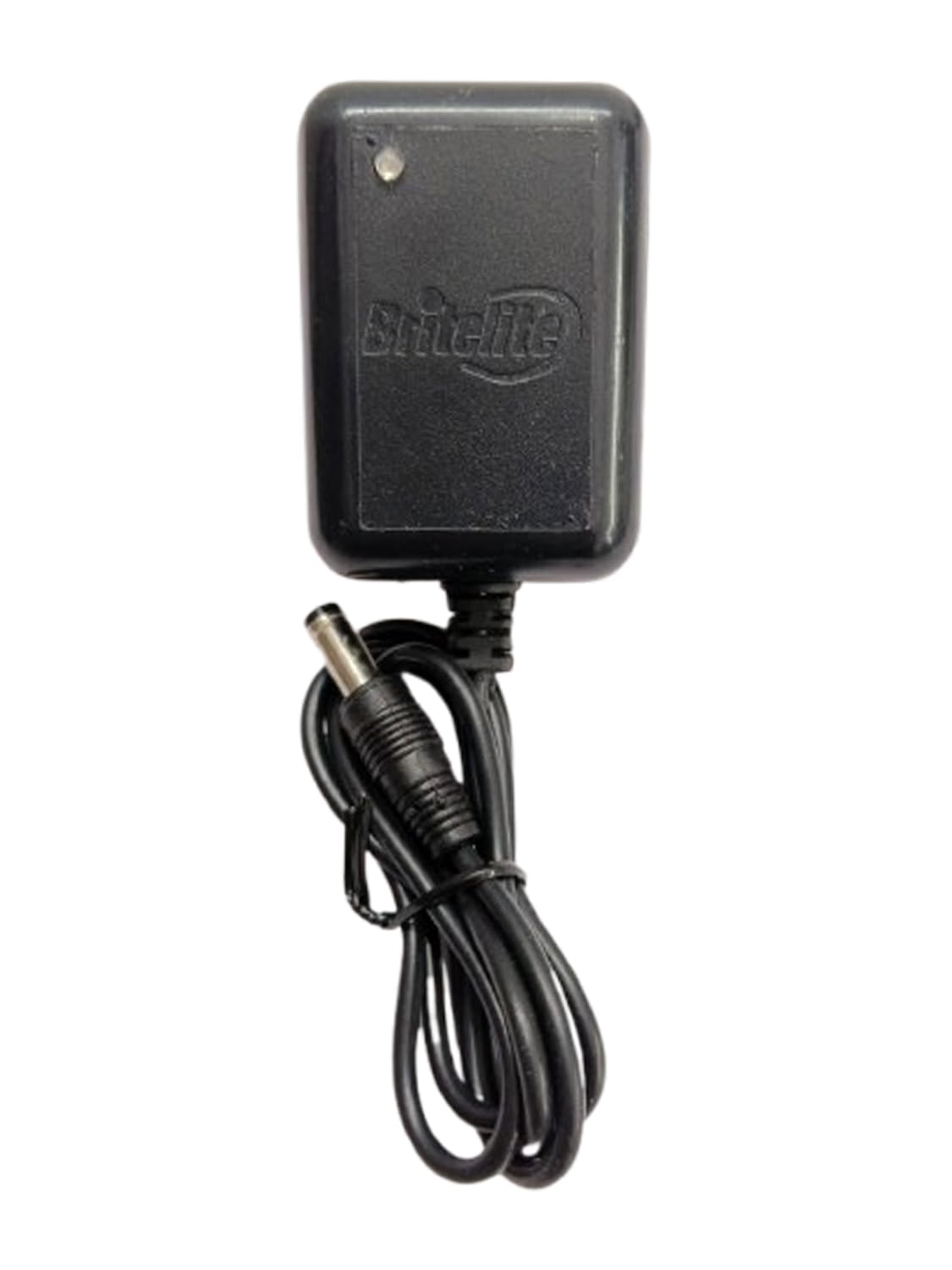

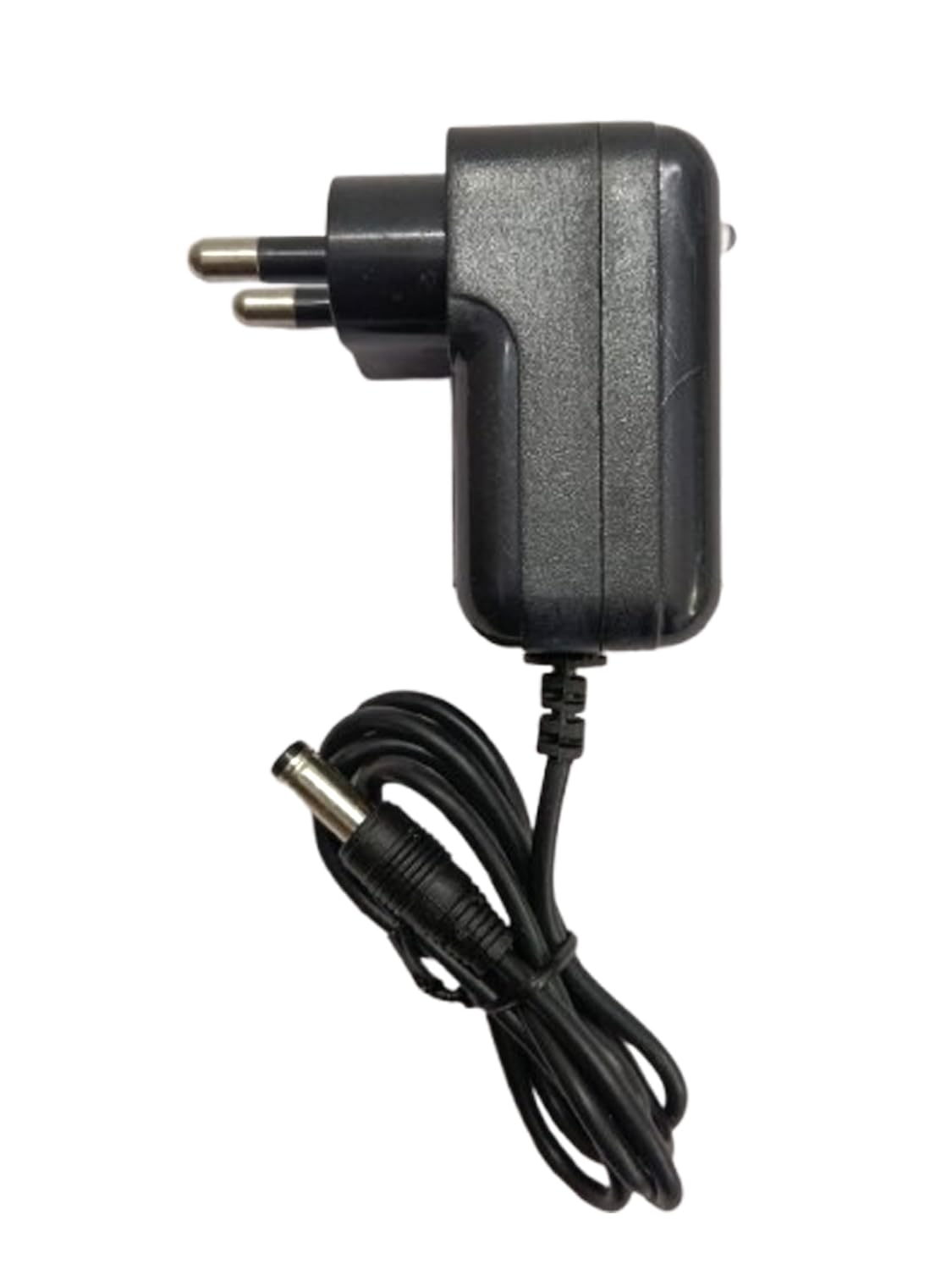

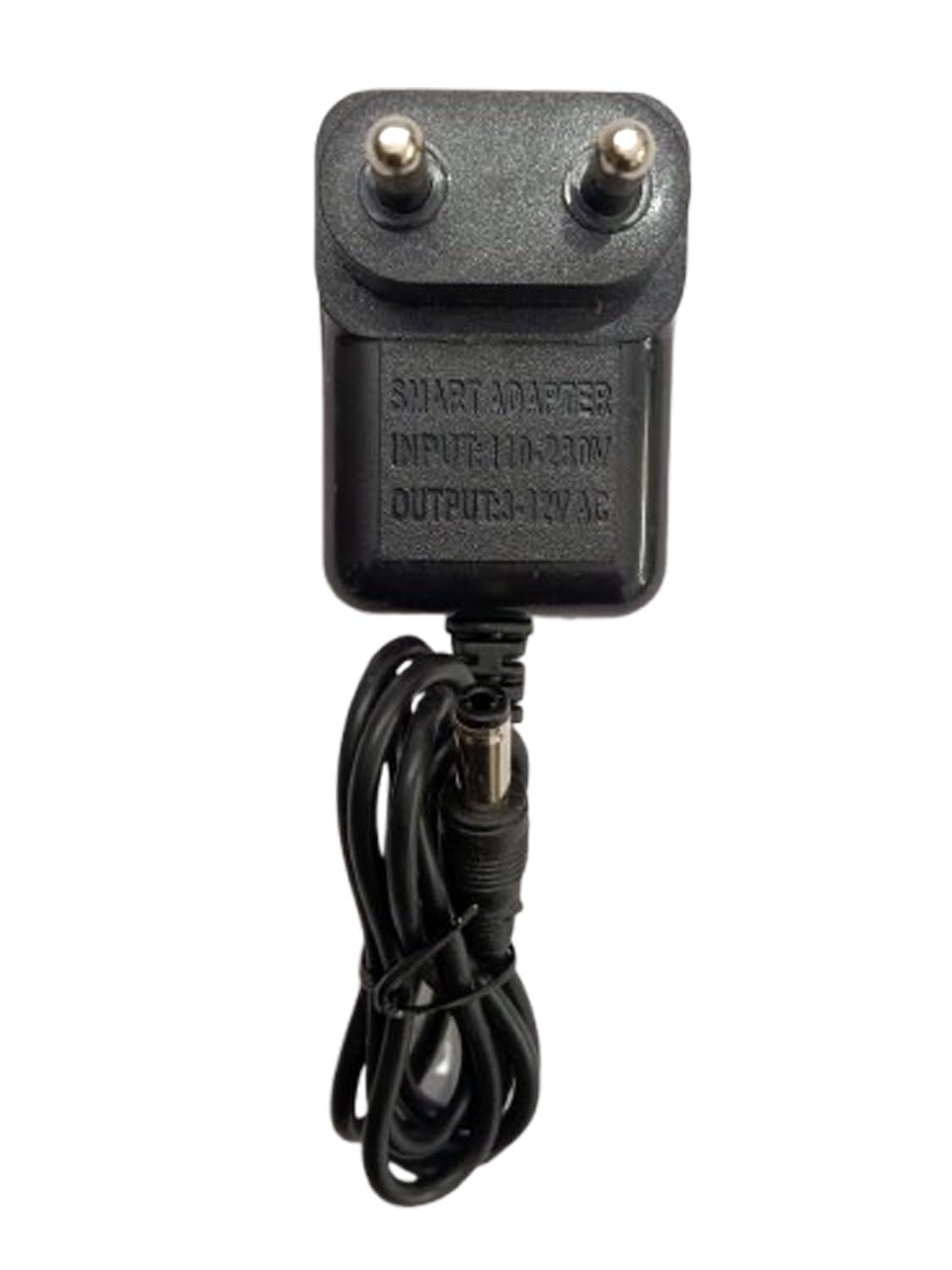

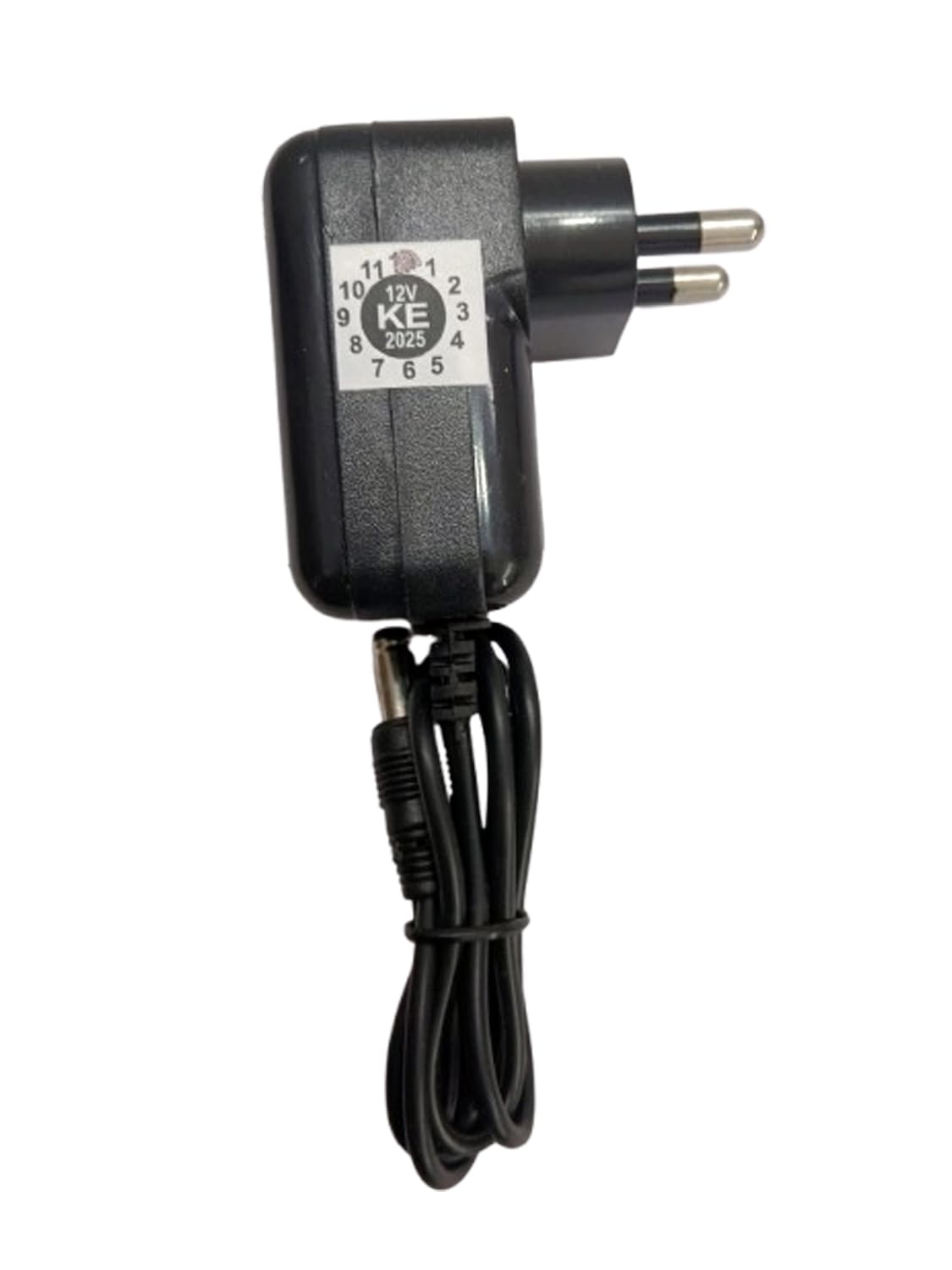

12V 1.5A 24W AC-DC Switching Power Supply Adapter

The 12V 1.5A 24W AC-DC Switching Power Supply Adapter is a reliable and energy-efficient power adapter designed to convert high-voltage AC mains electricity into a stable 12V DC output for powering a wide variety of electronic devices and equipment. With a maximum output current of 1.5 Amperes and a total output power of 24 Watts, this adapter is an excellent choice for devices requiring a dependable and regulated 12V DC power source.

Built using advanced Switch Mode Power Supply (SMPS) technology, the adapter delivers high conversion efficiency while minimizing power loss and heat generation. Compared to conventional linear adapters, switching power supplies are more compact, lightweight, and capable of maintaining stable output voltage even when the connected load changes.

Designed for universal compatibility, the adapter accepts an input voltage of 100–240V AC at 50/60Hz, making it suitable for use in most countries around the world. It converts the incoming AC voltage into a regulated 12V DC output, ensuring safe and consistent operation of connected electronic devices.

Manufactured using high-quality electronic components, the adapter provides low ripple, stable voltage regulation, and excellent long-term reliability. The durable insulated housing protects the internal circuitry while offering electrical safety and resistance to everyday wear and tear. Its compact and lightweight construction makes it easy to transport, install, and use in both home and professional environments.

The adapter is equipped with multiple built-in protection features, including over-voltage protection, over-current protection, overload protection, and short-circuit protection. These safety mechanisms help prevent damage to both the adapter and connected equipment, ensuring dependable operation during continuous use.

The integrated DC output cable is fitted with a standard 5.5mm × 2.1mm DC barrel plug (model dependent), making it compatible with a wide range of electronic devices without requiring additional wiring or connectors.

The 12V 1.5A 24W AC-DC Switching Power Supply Adapter is widely used for Wi-Fi routers, CCTV cameras, LED strip lights, LED lighting systems, DVRs, set-top boxes, Arduino projects, ESP32 development boards, Raspberry Pi accessories, IoT devices, embedded systems, communication equipment, mini audio amplifiers, security systems, biometric devices, electronic instruments, portable testing equipment, battery charging applications, home automation systems, educational electronics, and DIY electronics projects.

Whether you are replacing an existing power adapter, powering a development board, or supplying stable DC power to electronic equipment, this adapter provides reliable performance, high efficiency, and long service life.

Working Principle

The 12V 1.5A Switching Power Supply Adapter converts 100–240V AC mains power into a regulated 12V DC output using high-frequency switching technology.

The incoming AC voltage is first rectified and filtered into high-voltage DC. This voltage is then switched at a high frequency through a compact transformer, stepped down to the required level, and rectified again to produce a smooth and stable DC output.

A built-in feedback control circuit continuously monitors the output voltage and automatically adjusts the switching process to maintain a constant 12V DC output, even when the input voltage or connected load varies. Integrated protection circuits ensure safe operation under abnormal electrical conditions.

Key Features

• Regulated 12V DC output

• Maximum output current: 1.5A

• Maximum output power: 24W

• High-efficiency SMPS technology

• Universal input: 100–240V AC

• Supports 50/60Hz mains frequency

• Stable and reliable voltage output

• Low ripple and electrical noise

• Compact and lightweight design

• Durable insulated housing

• Energy-efficient operation

• Over-voltage protection

• Over-current protection

• Overload protection

• Short-circuit protection

• Plug-and-play operation

• Long service life

Applications

The 12V 1.5A 24W AC-DC Switching Power Supply Adapter is widely used in:

• Wi-Fi routers

• CCTV camera systems

• LED strip lighting

• LED lighting systems

• DVR systems

• Set-top boxes

• Arduino projects

• ESP32 development

• ESP8266 projects

• Raspberry Pi accessories

• IoT devices

• Embedded systems

• Mini audio amplifiers

• Communication equipment

• Security systems

• Home automation

• Biometric devices

• Battery charging applications

• Educational electronics

• DIY electronics projects

Specifications

• Product Type: AC-DC Switching Power Supply Adapter

• Input Voltage: 100–240V AC

• Input Frequency: 50/60Hz

• Output Voltage: 12V DC

• Maximum Output Current: 1.5A

• Maximum Output Power: 24W

• Power Supply Type: Switching Mode Power Supply (SMPS)

• Output Connector: Standard DC Barrel Plug (typically 5.5mm × 2.1mm)

• Housing Material: High-quality insulated plastic

• Protection Features: Over-voltage, over-current, overload, and short-circuit protection

• Application: Electronic devices and DC-powered equipment

Package Includes

• 1 × 12V 1.5A 24W AC-DC Switching Power Supply Adapter

Safety Precautions

• Use only with devices requiring 12V DC input.

• Ensure the connected device does not draw more than 1.5A.

• Verify the connector size and polarity before connecting.

• Do not expose the adapter to water, excessive moisture, or direct sunlight.

• Ensure adequate ventilation during operation.

• Do not open or modify the adapter housing.

• Disconnect the adapter when not in use for extended periods.

• Replace the adapter if the cable, connector, or housing becomes damaged.
