10K Potentiometer Module

The 10K Potentiometer Module is an adjustable voltage divider module used to provide a variable analog output voltage for electronic circuits and embedded systems. It is built around a 10 kilo-ohm (10KΩ) rotary potentiometer and is widely used for adjusting voltage levels, controlling analog inputs, calibrating sensors, setting reference voltages, and testing microcontroller-based applications. The module is commonly used in Arduino, ESP32, Raspberry Pi (with an ADC), STM32, PIC, AVR, robotics, IoT, automation, and educational electronics projects.

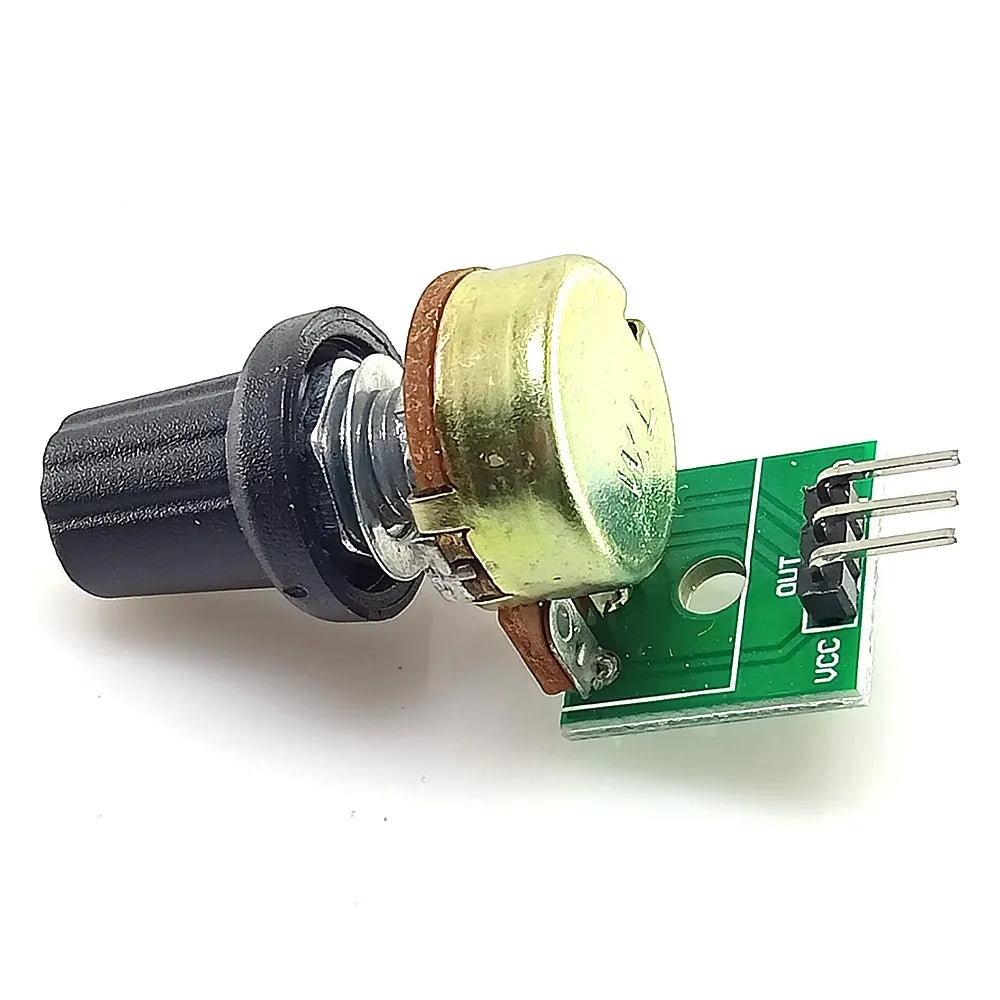

The module consists of a 10KΩ rotary potentiometer, a printed circuit board (PCB), connection pins, and a rotary adjustment knob. The potentiometer has three terminals: two outer terminals connected to the ends of the resistive track and a center terminal called the wiper. As the knob is rotated, the wiper moves along the resistive element, changing the output voltage between the supply voltage and ground.

The working principle of the 10K Potentiometer Module is based on the voltage divider principle. When a DC voltage is applied across the two outer terminals of the potentiometer, a uniform voltage is distributed along the resistive track. Rotating the knob moves the wiper to different positions on the track, producing a variable output voltage at the center terminal. For example, if the module is powered with 5V, the output voltage can be adjusted smoothly from approximately 0V to 5V. Similarly, when powered with 3.3V, the output varies from 0V to 3.3V.

The module typically operates with supply voltages ranging from 3.3V to 5V DC, making it fully compatible with popular development boards such as Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, PIC, and AVR microcontrollers. When connected to an analog input pin, the microcontroller reads the changing voltage and converts it into a digital value using its built-in Analog-to-Digital Converter (ADC). This allows the potentiometer to be used as a user input device for controlling parameters such as motor speed, LED brightness, display contrast, servo position, audio volume, and sensor calibration.

The module provides a simple and reliable method for generating adjustable analog signals without requiring complex circuits. It is frequently used during circuit testing and prototype development because it allows users to manually vary input values and observe system responses.

The applications of the 10K Potentiometer Module include analog input control, voltage adjustment, sensor calibration, motor speed control, LED brightness control, servo position control, display contrast adjustment, audio volume control, robotics, embedded systems, industrial automation, IoT devices, laboratory experiments, educational electronics, prototype development, and DIY electronic projects.

The advantages of the 10K Potentiometer Module include smooth and accurate voltage adjustment, simple operation, compact design, low power consumption, reliable performance, long mechanical life, easy interfacing with microcontrollers, stable analog output, low cost, and wide compatibility with embedded systems. Its plug-and-play design makes it suitable for both beginners and professional developers.

In conclusion, the 10K Potentiometer Module is a versatile and reliable adjustable voltage module that provides a variable analog output for controlling and testing electronic circuits. Its simple voltage divider operation, accurate adjustment, and compatibility with a wide range of microcontrollers make it an essential component for robotics, automation, IoT, educational electronics, laboratory experiments, and prototype development.
