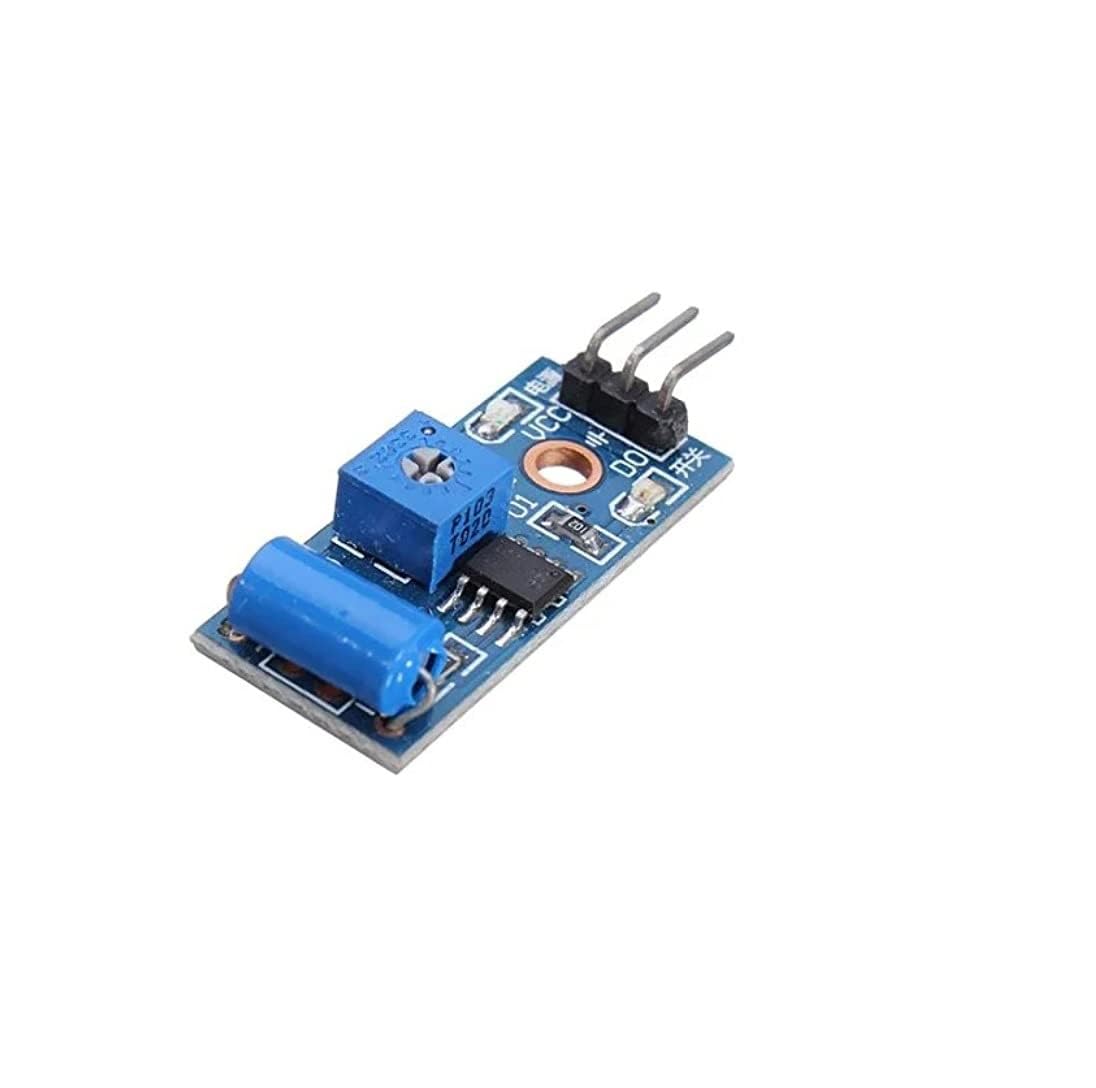

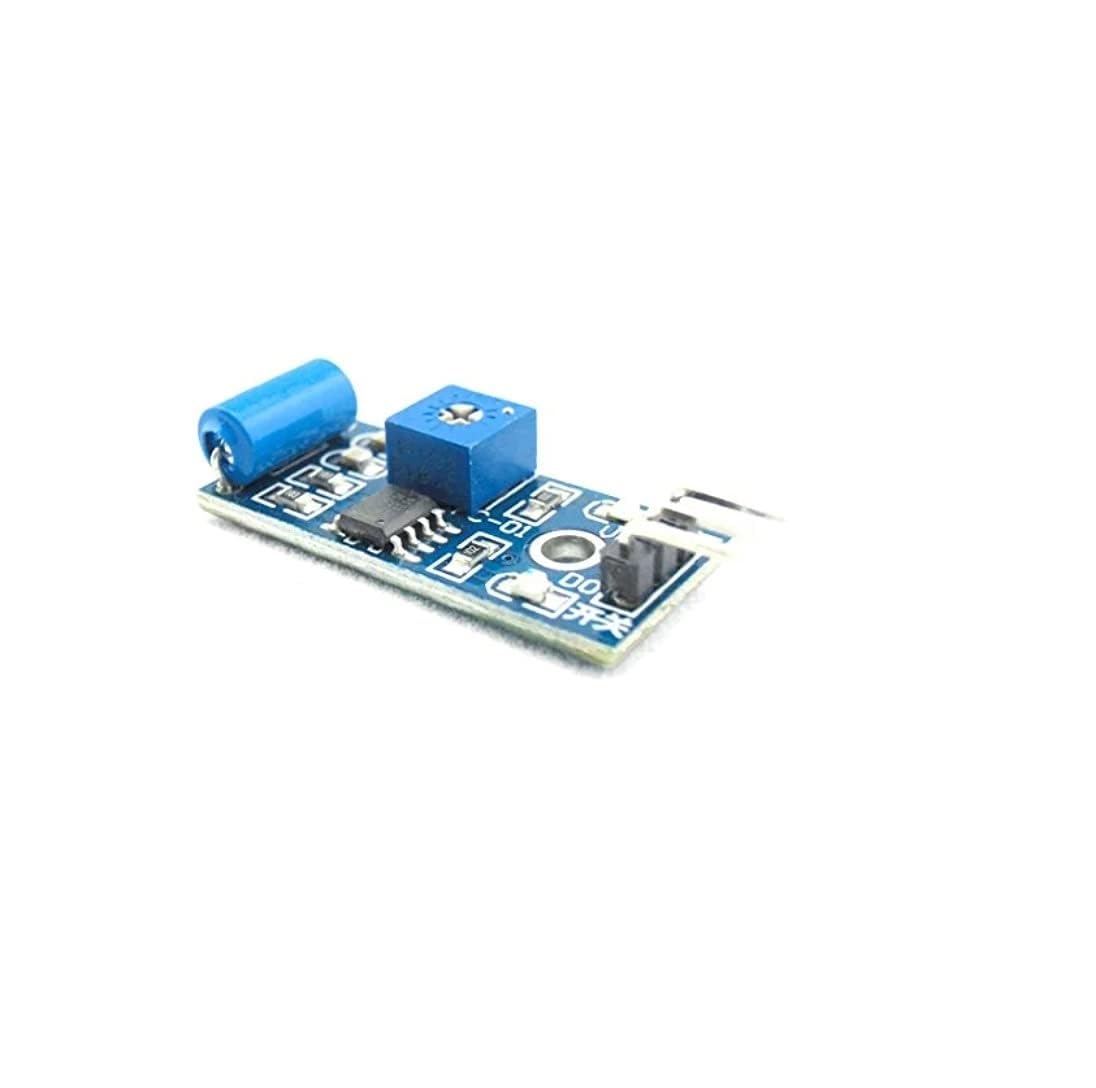

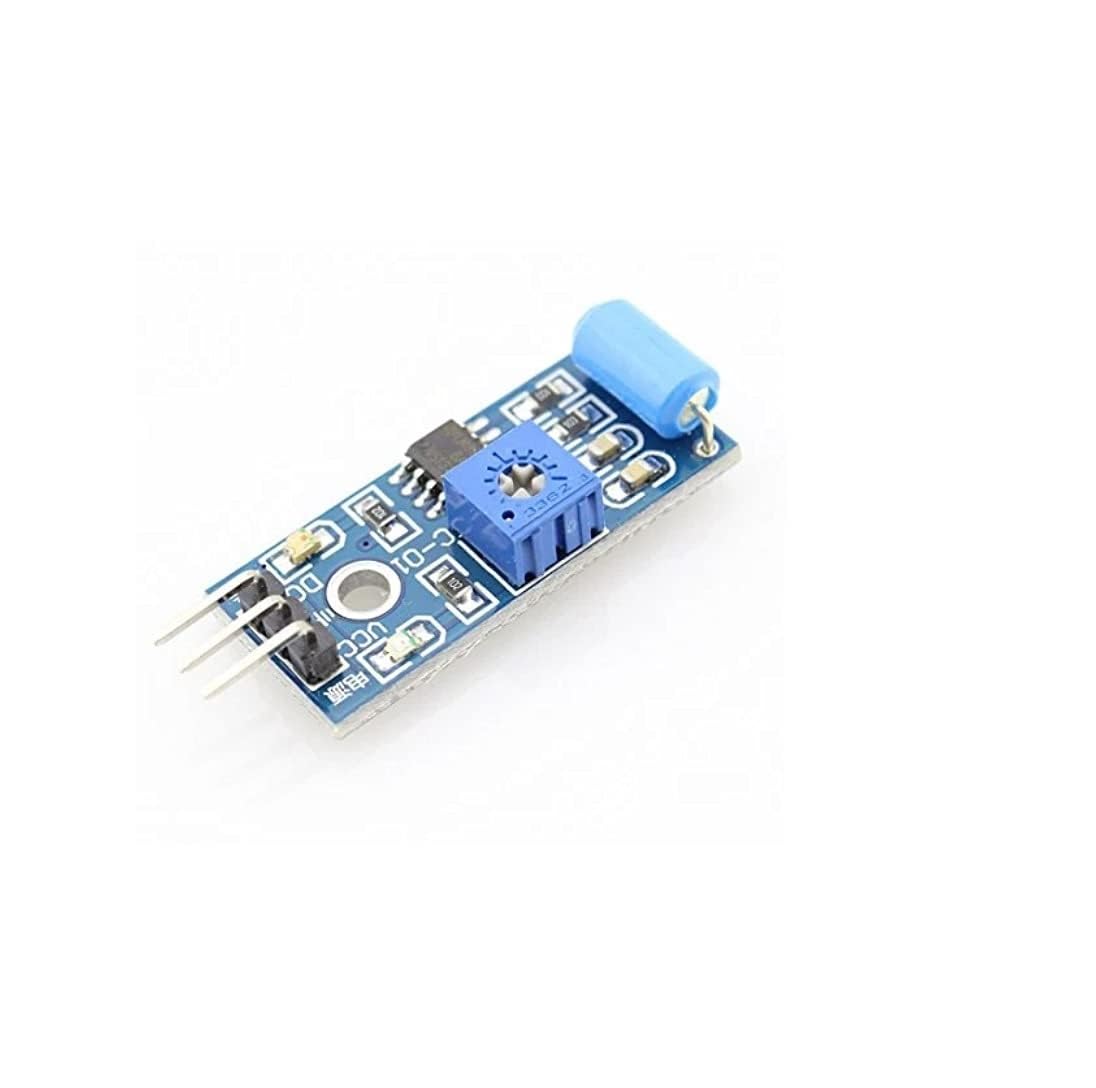

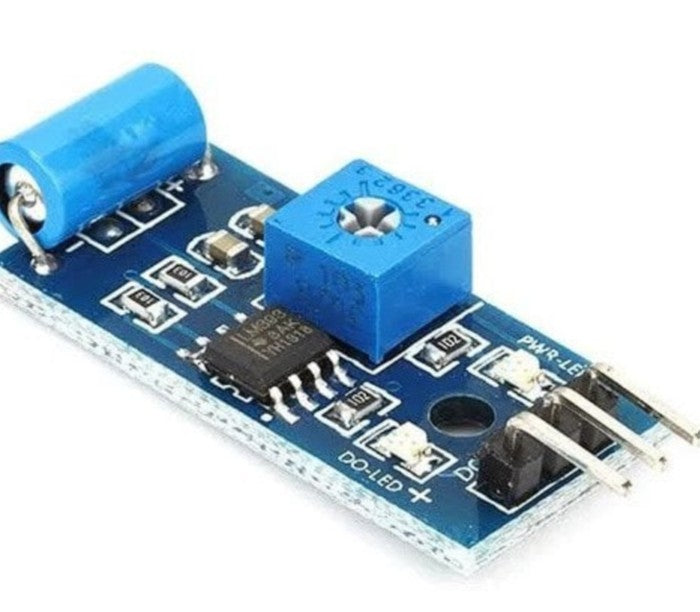

Vibration Sensor Module – Shock & Motion Detection Sensor

The Vibration Sensor Module is a compact and highly sensitive electronic device designed to detect vibrations, shocks, and sudden movements. It is typically based on a spring-type vibration sensor or a piezoelectric sensing element that reacts instantly to mechanical movement. When vibration or impact is detected, the module generates a digital output signal that can be read by a microcontroller. Due to its simple operation and reliable performance, this module is widely used in security systems, automation projects, machinery monitoring, vehicle protection systems, and educational electronics applications. It is fully compatible with Arduino, Raspberry Pi, ESP32, ESP8266, PIC, AVR, and STM32 microcontrollers.

WORKING PRINCIPLE

The sensor element inside the module responds to physical movement such as vibration, shock, or impact. When the module experiences motion, the internal spring or piezo element produces an electrical signal. This signal is processed by the onboard circuitry and comparator, which triggers a digital HIGH or LOW output when the vibration level exceeds a predefined threshold. Some versions include an onboard potentiometer that allows users to adjust the sensitivity, ensuring accurate detection for different environments and applications. The fast response time enables immediate detection of even brief or sudden vibrations.

KEY FEATURES

The module is capable of detecting vibration, shock, and motion and provides a digital HIGH or LOW output signal. It operates on a supply voltage of 3.3 V to 5 V DC and offers fast and reliable response to movement. Certain models include adjustable sensitivity through an onboard potentiometer. The design is compact, lightweight, and energy-efficient, making it suitable for portable and embedded applications. It features a simple 3-pin or 4-pin interface, allowing quick and easy integration with microcontroller-based systems.

APPLICATIONS

The Vibration Sensor Module is ideal for anti-theft and security alarm systems, earthquake and vibration detection projects, machinery vibration monitoring, smart home automation, vehicle and asset protection systems, Arduino and robotics projects, as well as educational and DIY electronics experiments.

WHY CHOOSE THIS MODULE

The Vibration Sensor Module offers a reliable, cost-effective, and user-friendly solution for detecting motion, impact, and vibration. Its simple interface, adjustable sensitivity, and dependable performance make it an excellent choice for safety, automation, monitoring, and learning applications where accurate vibration detection is required.
