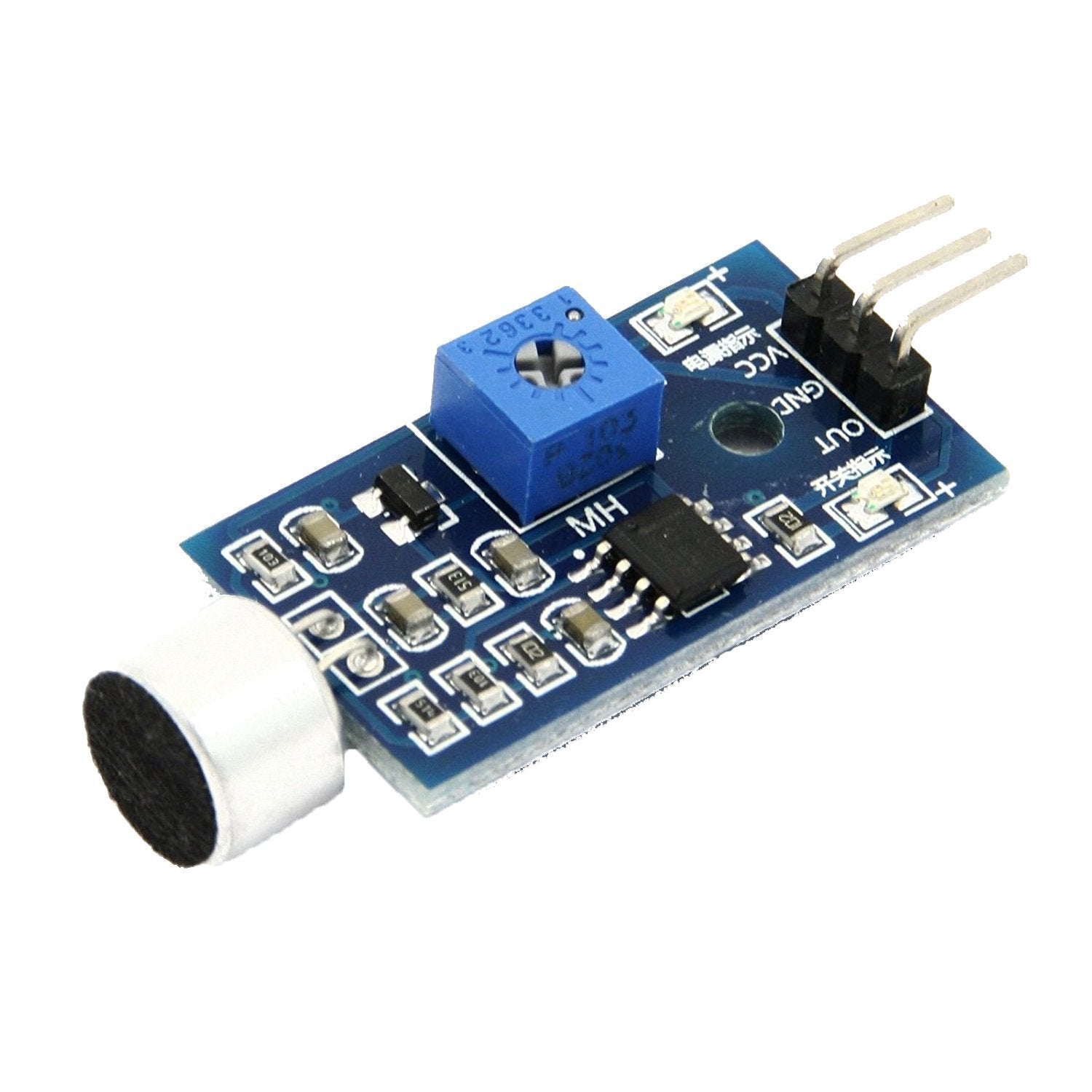

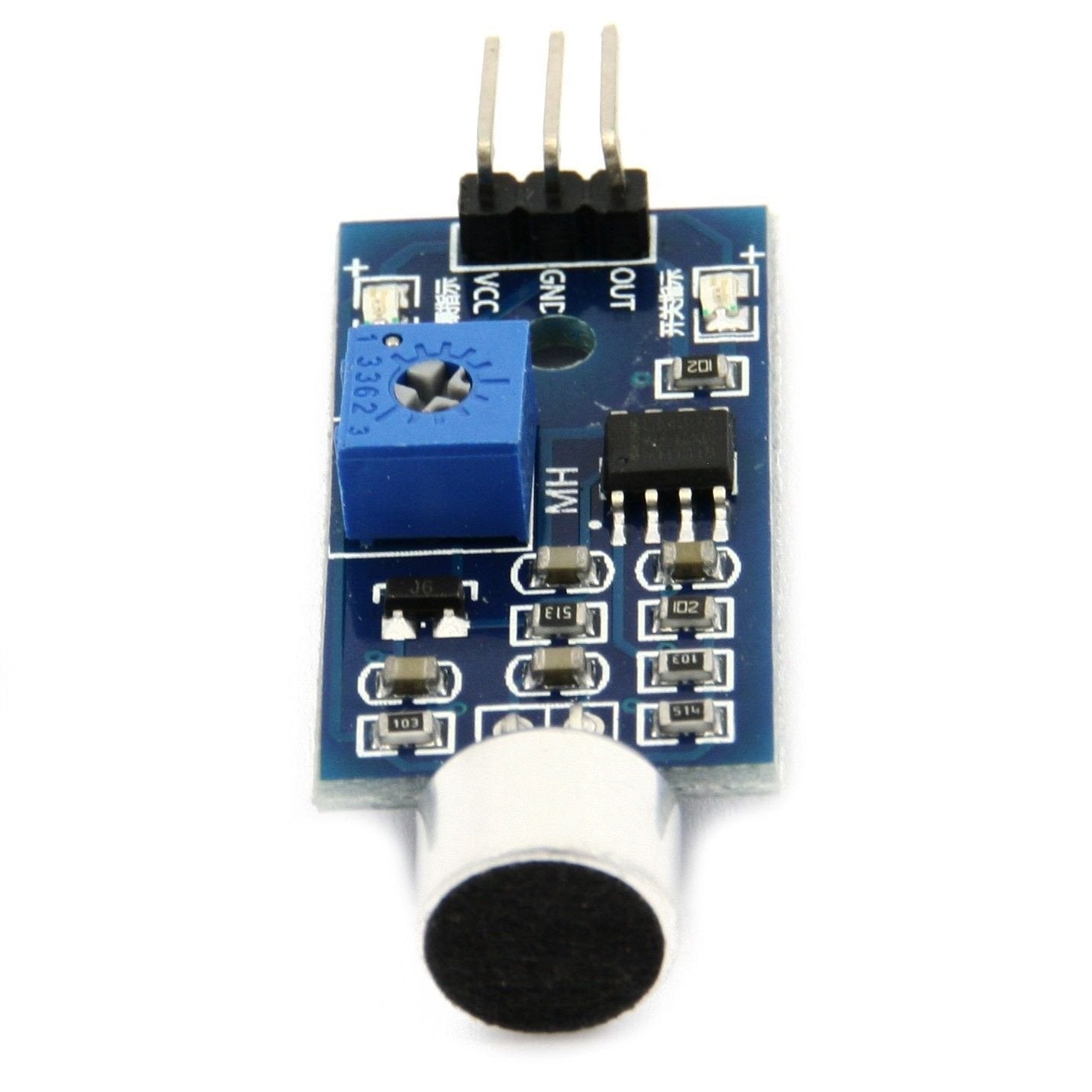

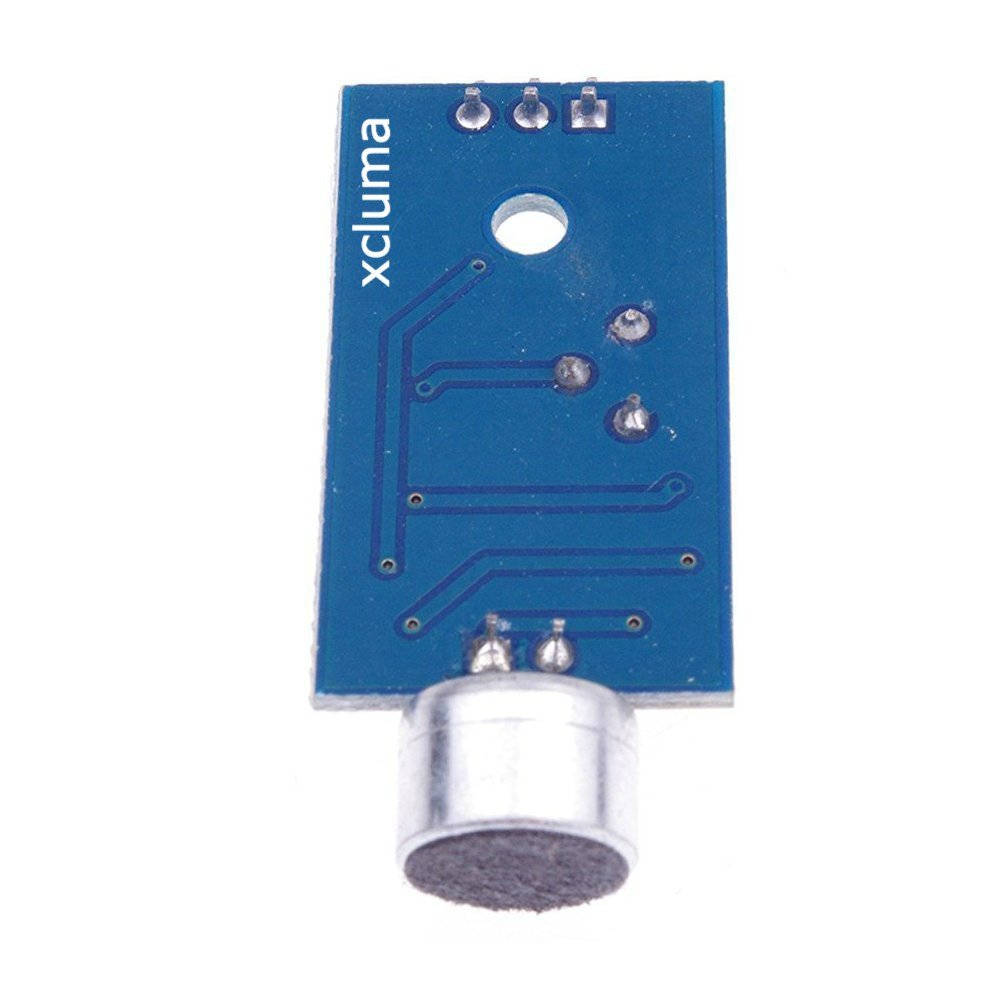

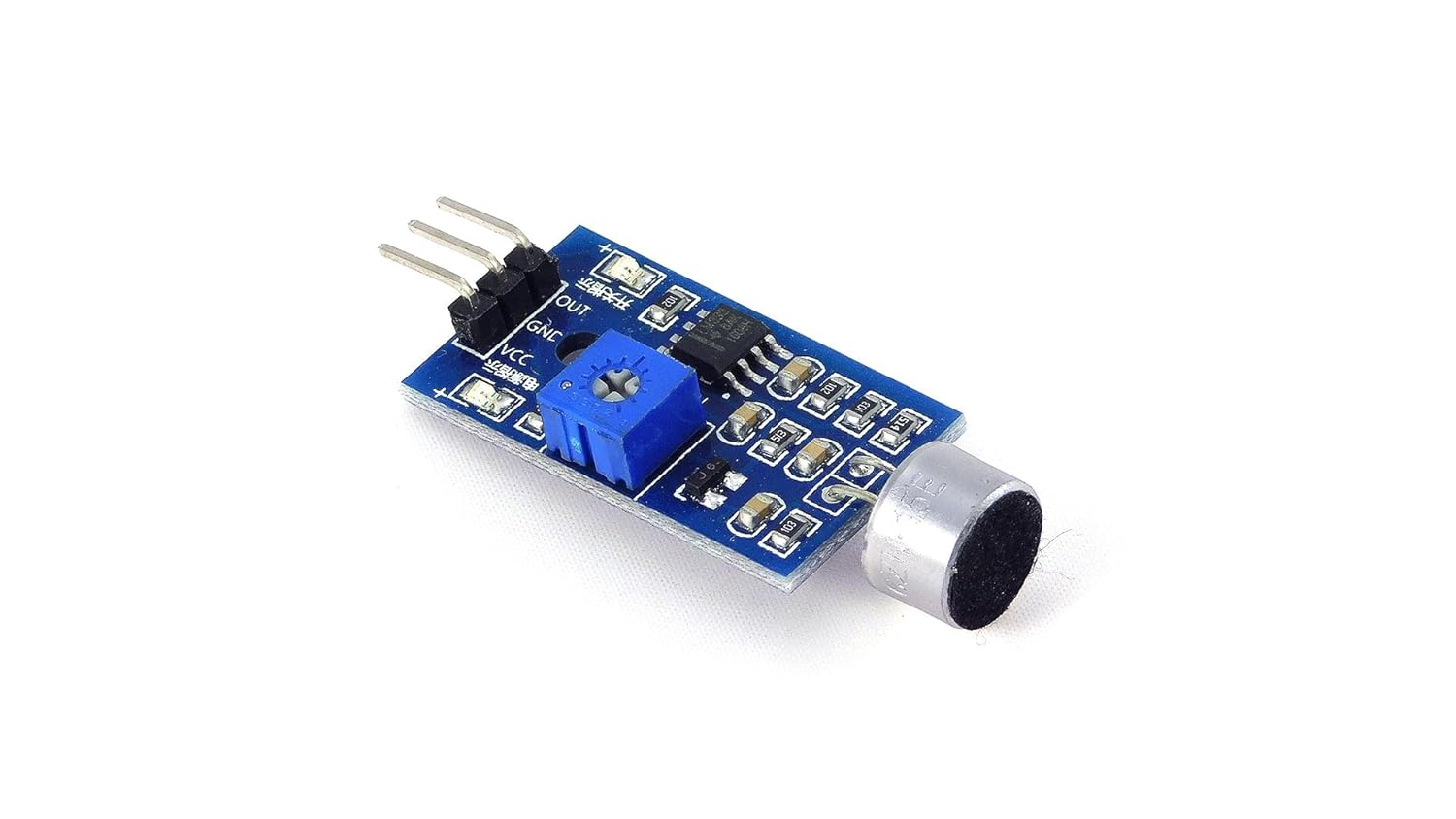

SOUND DETECTION SENSOR MODULE

The Sound Detection Sensor Module is an electronic device designed to detect sound levels and acoustic vibrations in the surrounding environment. It converts sound waves into electrical signals that can be processed by microcontrollers or digital systems. The module typically includes a microphone, signal amplifier, comparator circuit, and adjustable sensitivity control, making it suitable for automation, security systems, noise monitoring, smart devices, and educational electronics projects.

WORKING PRINCIPLE

The onboard microphone captures sound waves from the environment and converts them into electrical signals. These signals are then amplified by the module’s built-in amplifier. A comparator circuit processes the amplified signal and generates an output when the sound exceeds a preset threshold. Depending on the module design, the output can be analog, representing sound intensity, or digital, providing a HIGH/LOW signal when the threshold is crossed. Sensitivity can be adjusted using the onboard potentiometer, allowing accurate detection of desired sound levels.

TECHNICAL SPECIFICATIONS

The module operates at 3.3 V to 5 V DC with low power consumption. It is a microphone-based acoustic sensor capable of detecting sound within the audible range. The output can be analog for measuring sound intensity or digital for threshold-based detection. An onboard potentiometer allows sensitivity adjustment. The module is compatible with Arduino, Raspberry Pi, ESP32, ESP8266, and other microcontroller platforms, making it easy to integrate into a wide range of projects.

APPLICATIONS

This module is ideal for noise and sound level detection, clap switch projects, security and alarm systems, basic voice-activated systems, home automation, and educational or DIY electronics projects. Its compact design, adjustable sensitivity, and versatile outputs make it a reliable solution for practical and experimental sound detection applications.
