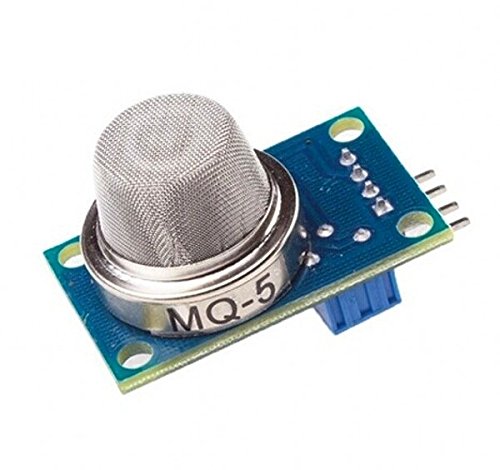

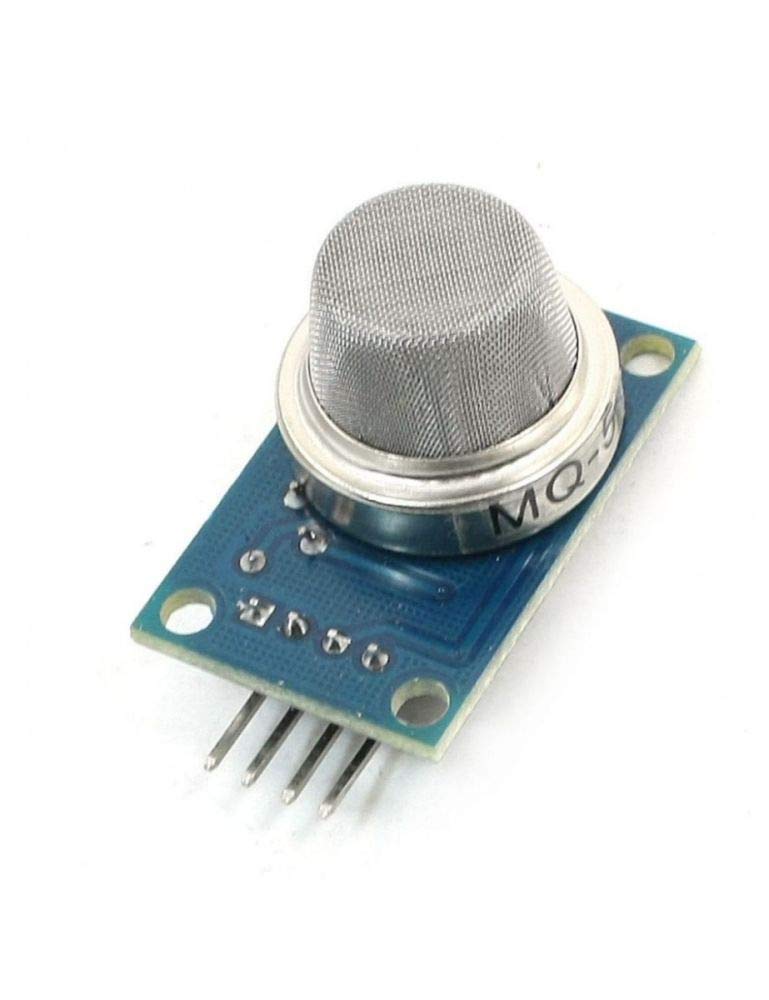

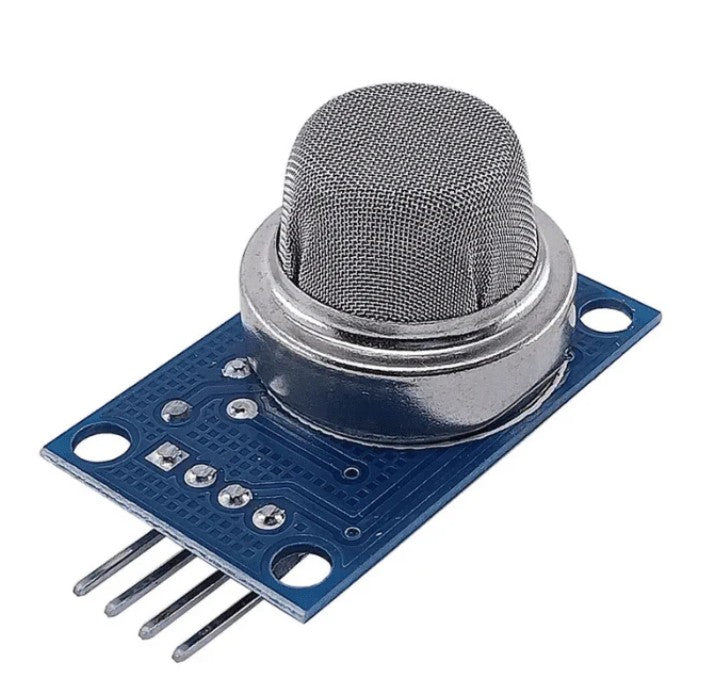

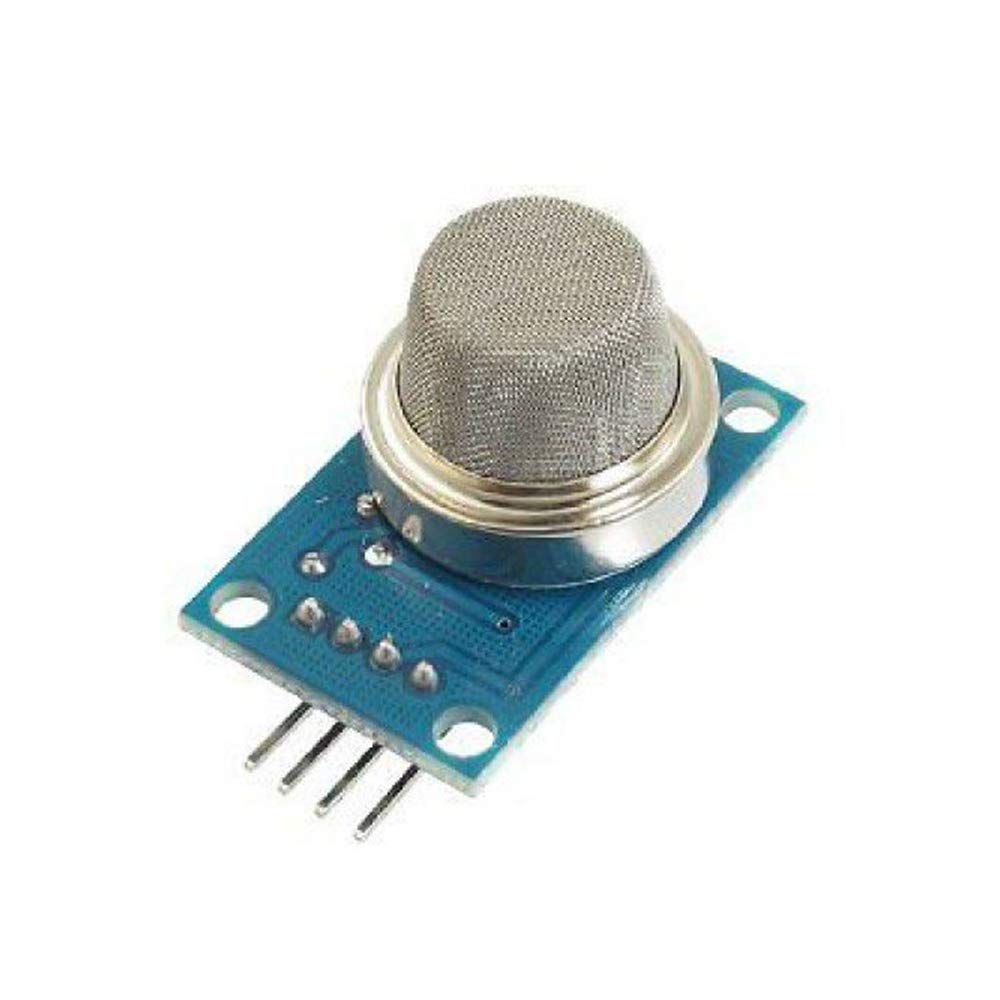

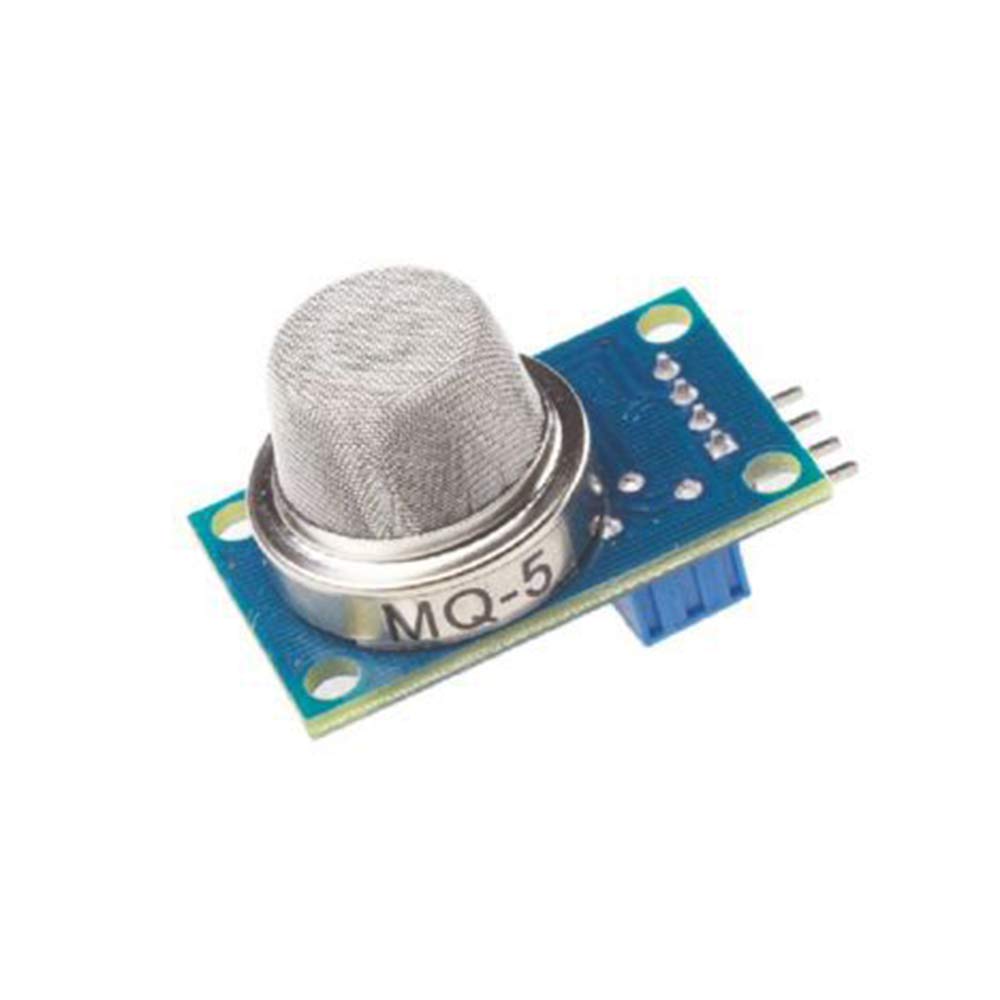

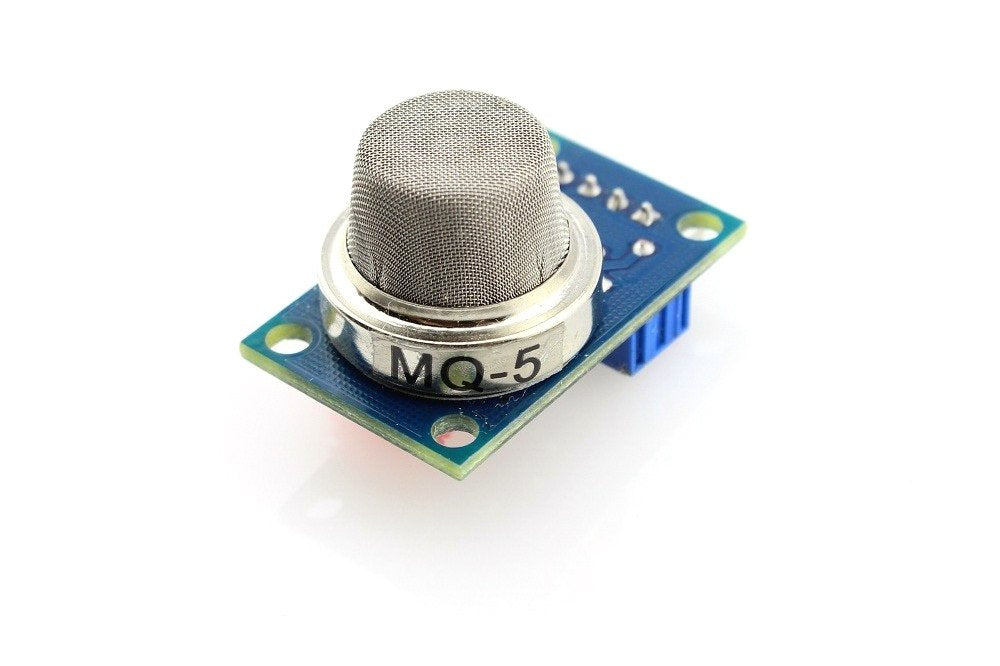

MQ-5 Gas Sensor Module – LPG, Natural Gas & Hydrogen Detection Sensor

The MQ-5 Gas Sensor Module is a versatile and high-sensitivity gas detection device designed to identify LPG, natural gas, town gas, and hydrogen in the surrounding environment. It is commonly used in gas leak detection systems, safety alarms, and industrial monitoring applications. The module provides both analog and digital output signals, allowing easy integration with popular microcontrollers such as Arduino, Raspberry Pi, ESP32, ESP8266, PIC, and STM32. With its fast response time, stable performance, and long operational life, the MQ-5 is a reliable and cost-effective solution for safety monitoring, automation systems, and IoT-based gas detection projects.

WORKING PRINCIPLE

The MQ-5 operates using a metal oxide semiconductor (MOS) sensing element combined with an internal heating element. When combustible gases such as LPG, natural gas, or hydrogen are present, they interact with the sensor’s sensitive surface, causing a change in electrical resistance. This resistance variation is converted into an electrical signal that reflects the gas concentration. The module outputs this signal as an analog voltage and also compares it against an adjustable threshold to produce a digital HIGH or LOW output. An onboard potentiometer allows users to fine-tune sensitivity and detection limits according to the application requirements.

KEY FEATURES

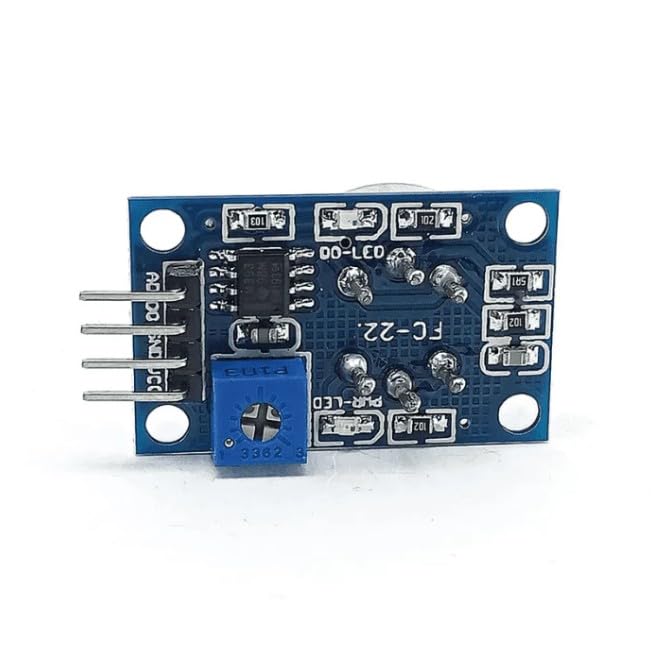

The module is capable of detecting LPG, natural gas, town gas, and hydrogen with high sensitivity. It operates at 5 V DC and supports a detection range of approximately 200 to 10,000 ppm. Both analog and digital outputs are available, with threshold adjustment through an onboard potentiometer. The MQ-5 offers fast response, stable performance, and a long-lasting sensing element. Its compact PCB design with pin headers allows easy and secure integration into electronic circuits and embedded systems.

APPLICATIONS

The MQ-5 Gas Sensor Module is ideal for gas leak detection systems, home safety alarms, industrial and workshop gas monitoring, IoT-based smart safety devices, robotics and automation projects, school and university electronics laboratories, and DIY gas-monitoring applications.

WHY CHOOSE THE MQ-5 SENSOR MODULE

The MQ-5 provides multi-gas detection capability, making it more versatile than many other sensors in the MQ series. Its reliability, affordability, ease of use, and compatibility with a wide range of microcontrollers make it an excellent choice for beginners, hobbyists, and advanced developers working on gas detection and safety systems.
