MPU6050 6-Axis Gyroscope & Accelerometer Sensor Module – Motion Tracking Sensor

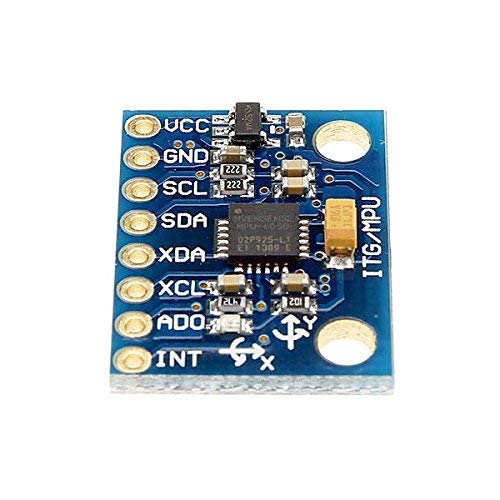

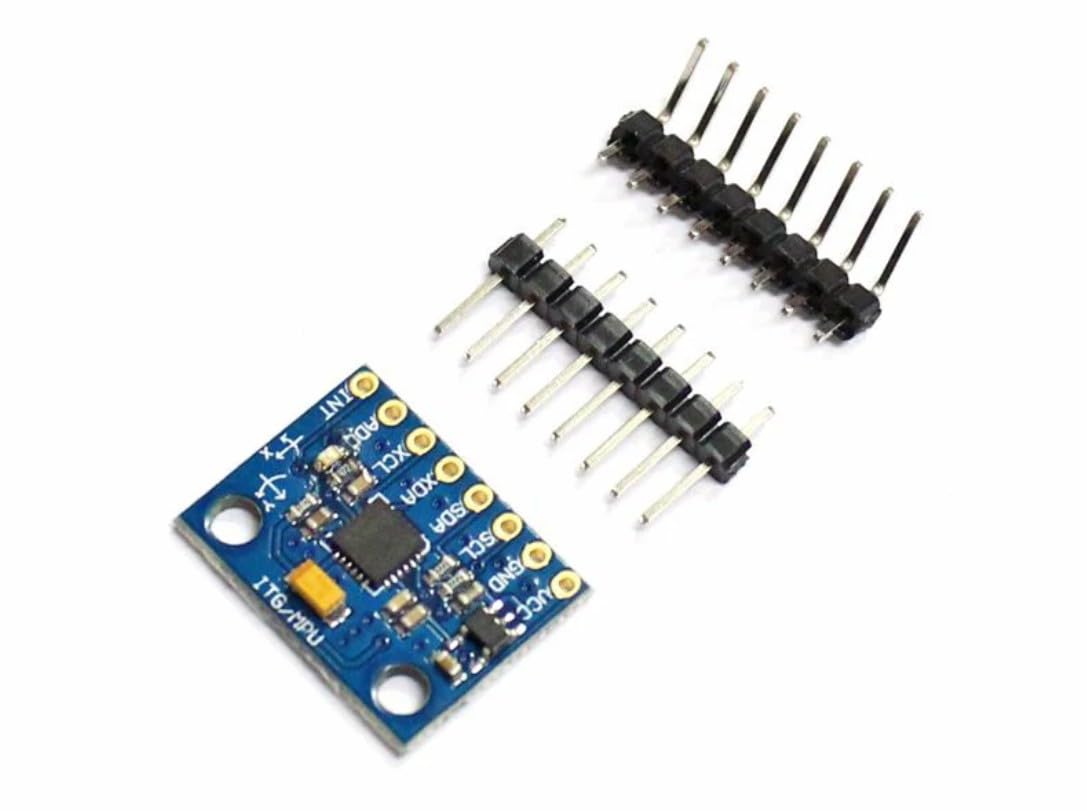

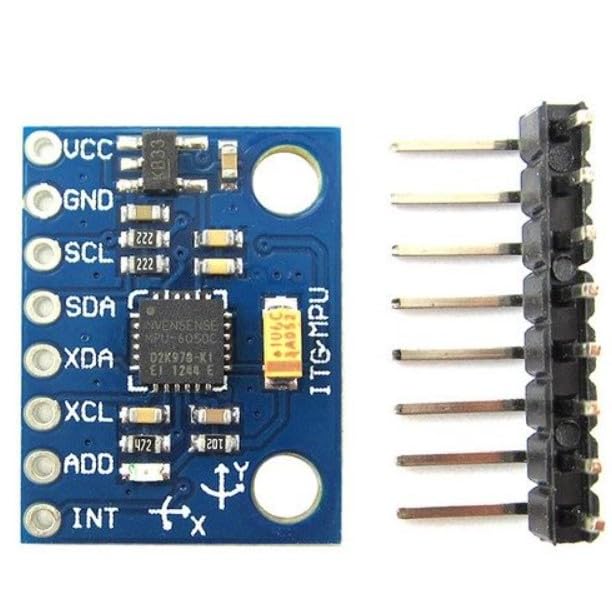

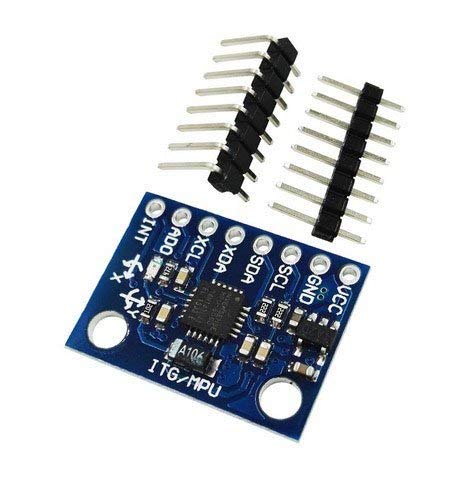

The MPU6050 Sensor Module is a compact and powerful 6-axis motion tracking device that integrates a 3-axis gyroscope and a 3-axis accelerometer into a single chip. It is designed to measure motion, orientation, tilt, rotation, and vibration with high accuracy. The sensor communicates digitally through an I²C interface, ensuring stable and noise-resistant data transfer. An onboard Digital Motion Processor (DMP) performs complex motion calculations internally, significantly reducing the processing load on the microcontroller. Due to its precision, reliability, and ease of integration, the MPU6050 is widely used in robotics, drones, wearable devices, gaming systems, and IoT applications. It is compatible with Arduino, Raspberry Pi, ESP32, ESP8266, STM32, and many other microcontroller platforms.

WORKING PRINCIPLE

The MPU6050 measures motion using two sensing elements: an accelerometer and a gyroscope. The accelerometer detects linear acceleration and tilt by measuring changes in motion along the X, Y, and Z axes, while the gyroscope measures angular velocity to detect rotation. These raw sensor values are processed internally, and the Digital Motion Processor can combine accelerometer and gyroscope data to generate more accurate motion and orientation information. The processed data is sent to the microcontroller via the I²C interface, enabling precise tracking of movement, balance, and orientation in real time.

KEY FEATURES

The module features a 6-axis motion sensor that combines a 3-axis gyroscope and a 3-axis accelerometer in one compact package. The gyroscope supports selectable ranges of ±250, ±500, ±1000, and ±2000 degrees per second, while the accelerometer supports ±2g, ±4g, ±8g, and ±16g ranges for flexible motion sensing. It uses a digital I²C communication interface and typically operates at 3.3 V, with most modules being 5 V tolerant. The built-in Digital Motion Processor improves efficiency and accuracy, while the low-noise, low-power design ensures reliable performance in embedded systems.

APPLICATIONS

The MPU6050 Sensor Module is ideal for robotics and drones, motion tracking and stabilization systems, self-balancing robots, gesture recognition systems, wearable devices, gaming controllers, virtual and augmented reality projects, as well as educational and research applications. Its versatility makes it suitable for both simple motion detection and advanced orientation tracking systems.

WHY CHOOSE MPU6050

The MPU6050 is one of the most widely used motion sensors due to its high accuracy, integrated motion processing, and ease of use. Its combination of accelerometer and gyroscope in a single module, along with digital communication and broad compatibility, makes it an excellent choice for beginners and professional developers working on motion-based and orientation-sensitive applications.
