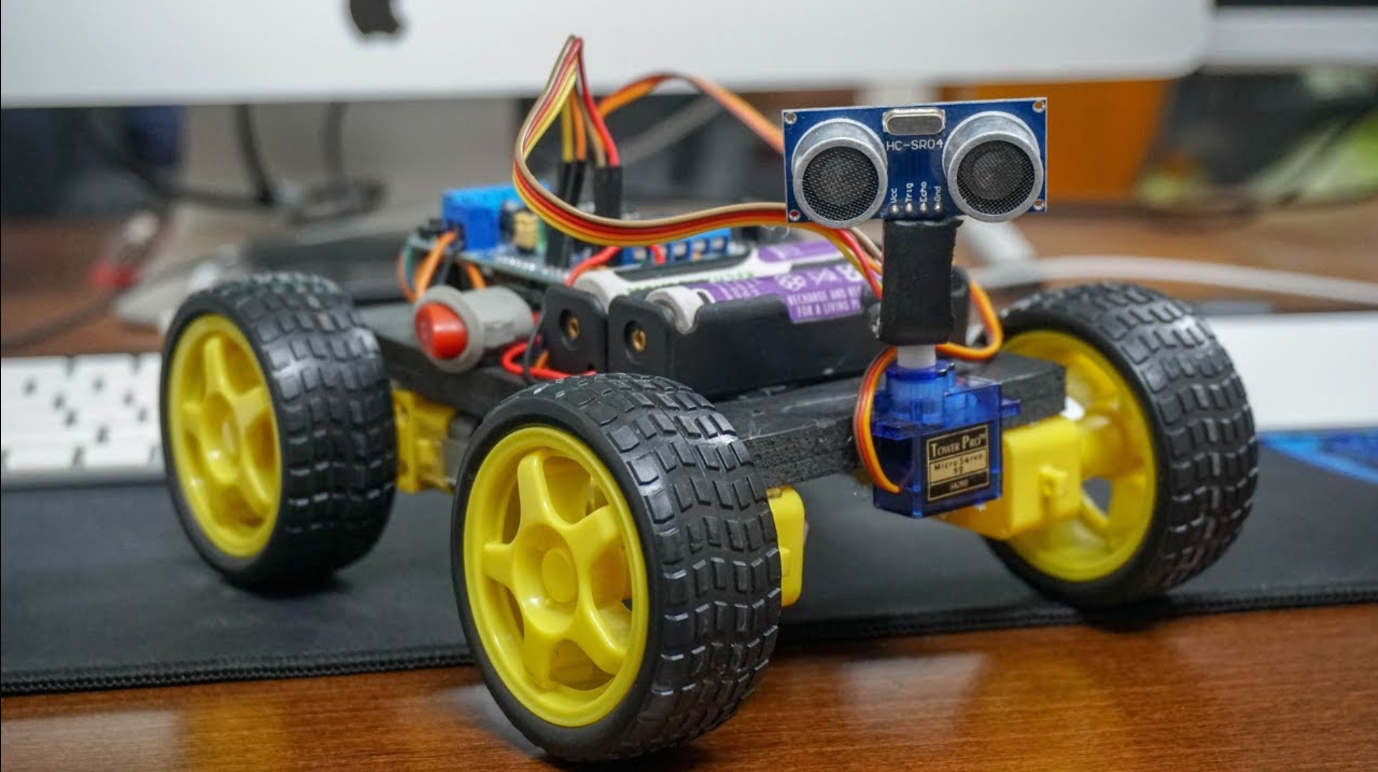

Obstacle Avoidance Robot (4 Wheel Working Robot Kit)

The Obstacle Avoidance Robot (4 Wheel Working Robot Kit) is an advanced educational robotics kit designed to demonstrate the principles of autonomous navigation, intelligent obstacle detection, and automatic motion control. The robot is capable of moving independently while continuously monitoring its surroundings using ultrasonic or infrared (IR) sensors. Whenever an obstacle is detected in its path, the robot automatically changes its direction to avoid collisions and continues moving safely without requiring human intervention. This project provides an excellent platform for learning robotics, embedded systems, automation, and sensor-based control technologies.

The robot is built on a strong four-wheel drive (4WD) chassis, providing excellent stability, improved traction, and smooth movement across various flat surfaces. The four-wheel configuration distributes weight evenly, allowing the robot to maintain better balance while turning, reversing, or navigating around obstacles. High-quality DC geared motors provide sufficient torque for reliable movement, while the durable chassis ensures long-lasting performance during repeated educational use.

The system is controlled by a microcontroller, typically compatible with Arduino, which serves as the brain of the robot. The controller continuously receives distance information from an ultrasonic sensor or IR sensor, processes the data using programmed control logic, and determines the safest movement direction. When an obstacle is detected within a predefined distance, the microcontroller commands the motor driver module to stop, reverse, or turn the motors until a clear path is available. Once the obstacle is avoided, the robot automatically resumes forward movement.

The Obstacle Avoidance Robot provides students with valuable hands-on experience in robotics, microcontroller programming, sensor interfacing, motor control, autonomous navigation, and embedded system design. Learners gain practical knowledge of how intelligent robots collect environmental data, process information in real time, and make decisions based on programmed algorithms. The project also introduces important concepts such as pulse width modulation (PWM), motor driver operation, sensor calibration, obstacle detection algorithms, and robotic motion planning.

Designed as a DIY (Do-It-Yourself) educational kit, the robot is easy to assemble, program, and modify. The modular design allows users to expand the system by adding Bluetooth modules, Wi-Fi connectivity, line-following sensors, robotic arms, cameras, GPS modules, IoT communication, voice control, or artificial intelligence features for more advanced robotics applications. The kit operates on a rechargeable battery or DC battery pack, making it portable and suitable for both indoor and outdoor demonstrations.

The Obstacle Avoidance Robot (4 Wheel Working Robot Kit) is widely used in schools, engineering colleges, diploma institutions, polytechnic laboratories, STEM education centers, robotics clubs, technical workshops, science exhibitions, and research laboratories. It is an ideal project for engineering mini projects, robotics competitions, educational demonstrations, and practical training programs. By integrating electronics, programming, mechanics, and intelligent automation into one interactive system, the robot encourages creativity, innovation, critical thinking, and problem-solving skills while helping students develop a strong foundation in modern robotics and automation technology.

Working Principle

The Obstacle Avoidance Robot continuously scans the area in front of it using an ultrasonic or infrared sensor. The sensor measures the distance between the robot and nearby objects and sends the information to the microcontroller.

The microcontroller continuously processes the sensor data and compares the measured distance with a predefined safety threshold. If no obstacle is detected, the controller keeps the motors running forward. When an obstacle is detected within the specified distance, the controller immediately commands the motor driver to stop the robot and change its direction by turning left, right, or reversing until a clear path is found.

After successfully avoiding the obstacle, the robot automatically resumes forward movement. This process repeats continuously, enabling fully autonomous obstacle detection and navigation.

Key Features

• Four-wheel drive chassis for enhanced stability.

• Automatic obstacle detection and avoidance.

• Ultrasonic or IR sensor-based object detection.

• Arduino-compatible microcontroller control.

• Intelligent motor driver-based movement control.

• Real-time autonomous navigation.

• High-torque DC geared motors.

• Low power consumption.

• Compact and durable design.

• Easy DIY assembly and programming.

• Modular design for future upgrades.

• Reusable components suitable for educational projects.

Benefits

• Demonstrates real-world robotics and automation concepts.

• Provides practical experience in embedded systems and sensor interfacing.

• Helps students understand autonomous navigation.

• Improves programming and logical thinking skills.

• Encourages creativity and innovation.

• Easy to assemble, operate, and customize.

• Supports expansion with advanced robotics technologies.

• Suitable for laboratory learning and technical demonstrations.

Applications

The Obstacle Avoidance Robot (4 Wheel Working Robot Kit) is widely used in:

• Robotics education

• Engineering mini projects

• School science projects

• College and university laboratories

• Diploma and polytechnic practicals

• STEM education programs

• Embedded systems learning

• Robotics competitions

• Science exhibitions

• Technical workshops

• DIY robotics projects

• Automation demonstrations

• Research and development

• Intelligent robot learning

• Sensor interfacing experiments

Educational Value

This project helps students understand several important engineering and technology concepts, including:

• Robotics

• Embedded Systems

• Arduino Programming

• Ultrasonic Sensor Technology

• IR Sensor Technology

• Motor Driver Circuits

• Autonomous Navigation

• Sensor Interfacing

• Automation Technology

• Electronics Engineering

• Control Systems

• STEM Learning

Students gain practical experience in designing, assembling, programming, and operating intelligent robots that automatically respond to environmental conditions using sensors and embedded control systems.

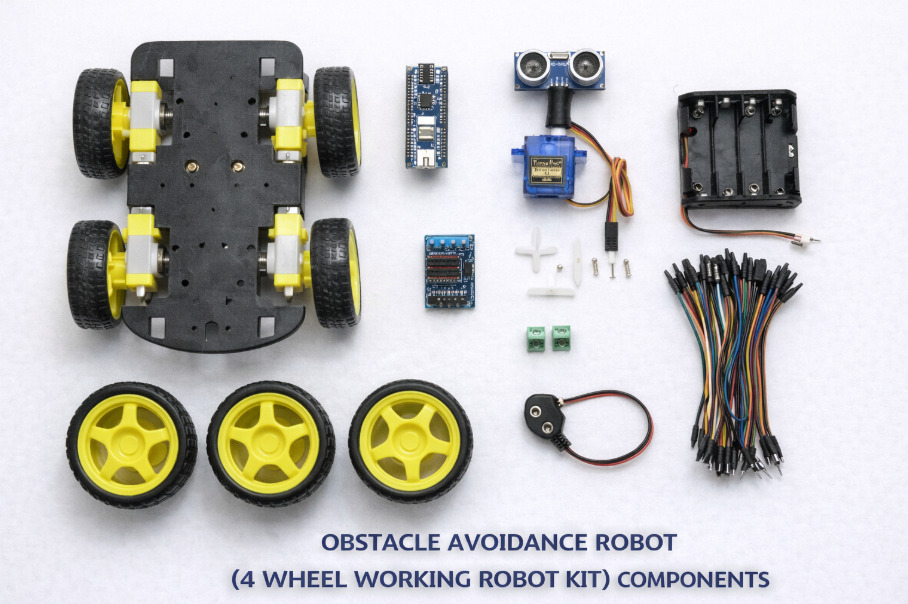

Package Contents

The kit may include the following components depending on the selected model:

• Four-wheel robot chassis

• DC geared motors

• Wheels

• Arduino-compatible microcontroller board

• Ultrasonic sensor or IR sensor

• Motor driver module

• Battery holder or rechargeable battery

• Power supply module

• Connecting wires

• Breadboard or PCB

• Electronic components

• User manual

• Project documentation

Suitable For

• Engineering students

• Diploma students

• Polytechnic students

• School students

• Robotics hobbyists

• STEM education centers

• Colleges and universities

• Technical training institutes

• DIY makers

• Automation enthusiasts

• Research learners

• Science exhibition participants

Why Choose This Obstacle Avoidance Robot (4 Wheel Working Robot Kit)?

The Obstacle Avoidance Robot (4 Wheel Working Robot Kit) is an ideal educational platform for learning robotics, embedded systems, automation, and intelligent navigation. It combines sensor-based obstacle detection, Arduino-compatible programming, motor control, and autonomous movement into a practical and interactive robotics project. Its stable four-wheel drive design, reusable components, low power consumption, modular architecture, and easy expandability make it an excellent choice for engineering projects, robotics competitions, laboratory experiments, technical workshops, and STEM education. This kit provides valuable hands-on experience in robotics, programming, sensor technology, and intelligent automation while helping learners develop the practical skills required for modern robotic system design.
