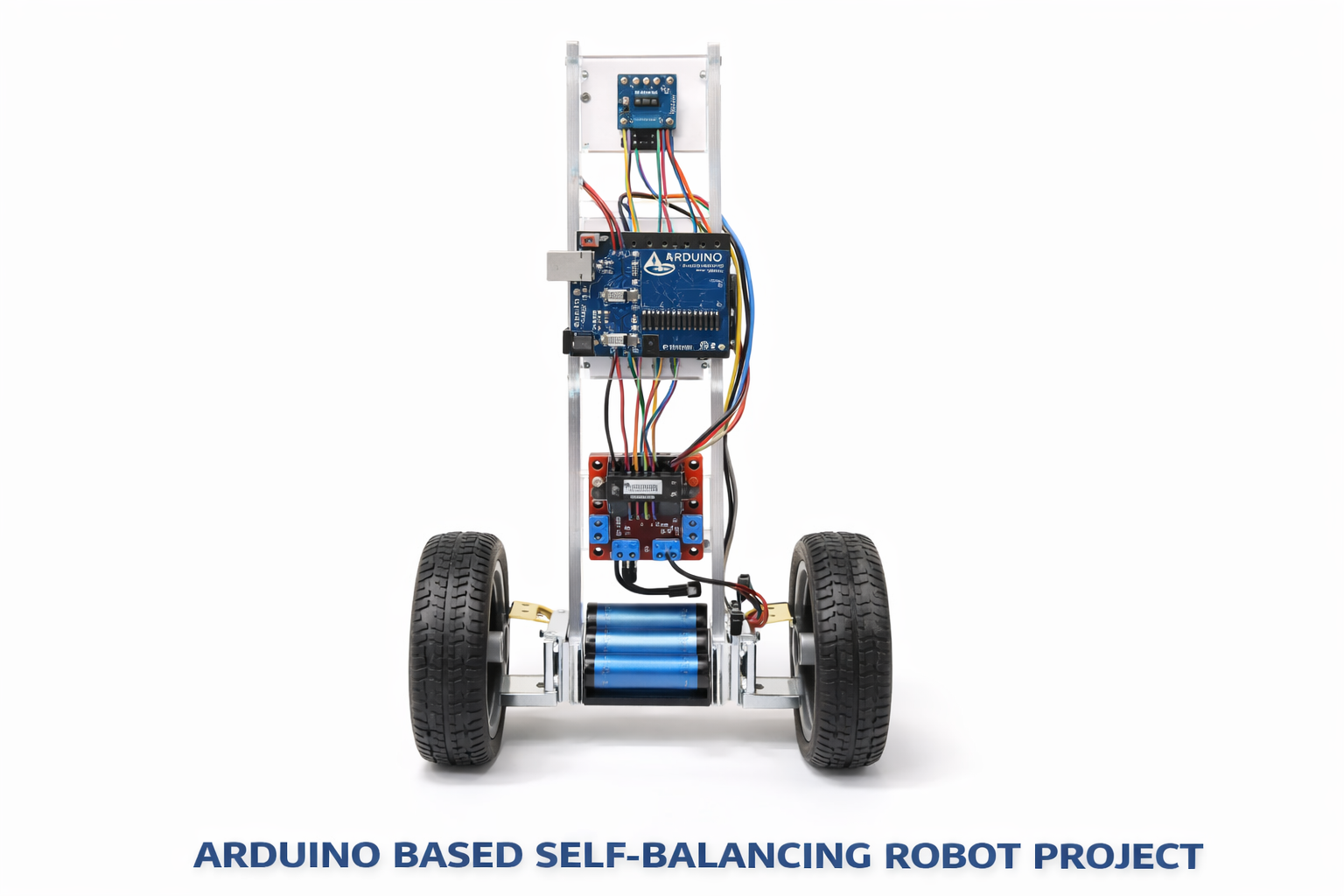

Arduino-Based Self-Balancing Robot

The Arduino-Based Self-Balancing Robot is an advanced robotics and embedded systems project designed to demonstrate the principles of dynamic balancing, real-time sensor feedback, and intelligent motor control. Built on a two-wheel platform, the robot is capable of automatically maintaining its balance without external support by continuously detecting its tilt angle and making instant corrections through a closed-loop control system.

The project uses an Arduino microcontroller as the main processing unit and an MPU6050 Inertial Measurement Unit (IMU), which combines a 3-axis accelerometer and a 3-axis gyroscope to accurately measure the robot's tilt angle, acceleration, and angular velocity. The Arduino continuously receives sensor data, calculates the robot's position, and executes a PID (Proportional–Integral–Derivative) control algorithm. Based on the calculated error, the controller adjusts the speed and direction of the DC motors through a motor driver, allowing the robot to maintain an upright position even when pushed or placed on uneven surfaces.

The robot performs continuous real-time balance correction by rapidly processing sensor information and controlling the motors within milliseconds. This project provides an excellent demonstration of embedded programming, sensor interfacing, motor control, control systems, robotics, and automation. It is ideal for engineering students, robotics enthusiasts, researchers, and educators who want practical experience with self-balancing systems and intelligent robotic applications.

Its compact design, rechargeable battery operation, reusable components, and modular construction make it suitable for laboratory experiments, academic projects, robotics competitions, STEM education, and research demonstrations.

Working Principle

The Arduino-Based Self-Balancing Robot continuously monitors its position using the MPU6050 IMU sensor. The accelerometer measures the robot's tilt angle, while the gyroscope detects angular velocity and rotational movement. The Arduino processes this sensor data and compares the current tilt angle with the desired upright position.

If the robot begins to lean forward or backward, the Arduino calculates the amount of error and immediately applies a PID control algorithm to determine the required motor speed and direction. The motor driver then controls both DC motors, moving the wheels forward or backward to restore balance. This process repeats hundreds of times every second, allowing the robot to remain stable and quickly recover from disturbances.

The continuous feedback loop between the sensor, controller, and motors enables smooth, accurate, and reliable self-balancing performance.

Key Features

• Arduino-based intelligent balancing system.

• Real-time dynamic balance control.

• MPU6050 IMU sensor with accelerometer and gyroscope.

• Advanced PID control algorithm for accurate balancing.

• Automatic tilt detection and correction.

• High-speed sensor data processing.

• Dual DC motor drive with motor driver module.

• Two-wheel self-balancing robotic platform.

• Rechargeable battery-powered operation.

• Compact, lightweight, and portable design.

• Easy assembly and maintenance.

• Reusable components for multiple robotics projects.

• Suitable for programming, testing, and experimentation.

Benefits

• Demonstrates real-world robotics and automation concepts.

• Provides hands-on experience with embedded systems.

• Helps students understand feedback control systems.

• Improves knowledge of PID controller tuning.

• Teaches sensor interfacing and data processing.

• Enhances programming and debugging skills.

• Encourages innovation and research in robotics.

• Can be upgraded with Bluetooth, Wi-Fi, obstacle avoidance, and autonomous navigation.

• Ideal for project-based learning and practical education.

Applications

The Arduino-Based Self-Balancing Robot is widely used in:

• Engineering mini projects

• Robotics laboratory experiments

• Mechatronics practical training

• Embedded systems learning

• Control systems education

• Automation demonstrations

• Research and development

• STEM education programs

• Robotics competitions

• College and university projects

• Diploma and polytechnic laboratories

• Sensor interfacing experiments

• Artificial intelligence and robotics learning

• Autonomous robot development

• Educational exhibitions and science fairs

Educational Value

This project helps students gain practical knowledge in several important engineering disciplines, including:

• Robotics

• Embedded Systems

• Arduino Programming

• Sensor Interfacing

• PID Control Systems

• Mechatronics

• Electronics Engineering

• Motor Control

• Automation Technology

• Artificial Intelligence Fundamentals

• Control Engineering

• Real-Time System Design

Students learn how intelligent systems use sensors, algorithms, and actuators to maintain stability and perform autonomous decision-making in real time.

Package Contents

The kit may include the following components depending on the selected model:

• Arduino development board

• MPU6050 IMU sensor module

• Motor driver module

• Two DC geared motors

• Robot chassis

• Wheels

• Battery holder or rechargeable battery

• Connecting wires

• Mounting hardware

• Electronic components

• User manual or project documentation

Suitable For

• Engineering students

• Diploma students

• Polytechnic students

• Robotics enthusiasts

• STEM education centers

• Colleges and universities

• Technical training institutes

• Electronics hobbyists

• DIY makers

• Research learners

• Automation enthusiasts

• Science exhibition participants

Why Choose This Arduino-Based Self-Balancing Robot?

The Arduino-Based Self-Balancing Robot is an excellent educational and research platform for learning modern robotics, embedded systems, and intelligent control technology. It combines advanced sensor technology, real-time processing, and PID-based motor control to demonstrate one of the most important concepts in autonomous robotics—dynamic self-balancing. Its modular design, reusable components, simple assembly, and practical applications make it an ideal choice for academic projects, laboratory experiments, robotics competitions, technical demonstrations, and hands-on engineering education. This project bridges the gap between theoretical concepts and real-world robotic systems, providing an engaging and valuable learning experience for students, educators, and robotics enthusiasts.
