Alcohol-Based Engine Locking System

The Alcohol-Based Engine Locking System is an intelligent automotive safety project designed to prevent vehicles from being operated by drivers under the influence of alcohol. By combining alcohol sensing technology, embedded systems, and automated engine control, the system detects the presence of alcohol in the driver's breath before the vehicle is started. If the detected alcohol concentration exceeds a predefined safety threshold, the system automatically disables the vehicle's ignition or engine starting mechanism, helping reduce the risk of drunk driving accidents and improving road safety.

The system utilizes an alcohol sensor (such as the MQ-3 sensor) to measure the ethanol concentration in the driver's breath. Before starting the vehicle, the driver is required to blow into the sensor. The sensor converts the detected alcohol level into an electrical signal, which is processed by a microcontroller such as an Arduino, ESP32, Raspberry Pi, or other embedded controller.

The microcontroller continuously compares the measured alcohol concentration with a preset permissible limit. If the alcohol level is within the safe range, the system allows the ignition relay to activate, enabling the engine to start normally. However, if the detected alcohol concentration exceeds the configured threshold, the controller immediately deactivates the ignition circuit through a relay module, preventing the engine from starting and ensuring that the vehicle remains safely immobilized.

To improve user awareness, the system can also activate LED indicators, LCD displays, buzzers, or voice alerts that clearly indicate whether the driver is fit to operate the vehicle. Advanced versions may include GPS and IoT connectivity, allowing real-time notifications, location tracking, and alert messages to be sent to vehicle owners, fleet managers, or authorized personnel whenever an alcohol violation is detected.

The Alcohol-Based Engine Locking System is widely used in automotive safety projects, fleet management systems, commercial transportation, school buses, public transport vehicles, industrial vehicles, research laboratories, and educational engineering projects. It demonstrates practical applications of embedded systems, sensor interfacing, vehicle automation, and IoT technology while promoting responsible driving and reducing road accidents caused by impaired driving.

Its modular architecture allows easy expansion by integrating additional safety features such as accident detection, GPS vehicle tracking, GSM alerts, biometric authentication, RFID access control, facial recognition, and cloud-based vehicle monitoring, making it a valuable platform for advanced automotive safety research.

Ideal for students, researchers, engineers, automotive developers, and IoT enthusiasts, the Alcohol-Based Engine Locking System provides an effective solution for intelligent vehicle safety and smart transportation systems.

Key Features

• Alcohol detection before engine start

• Automatic engine locking system

• High-sensitivity alcohol sensor

• Microcontroller-based intelligent control

• Real-time alcohol level monitoring

• Automatic ignition control using relay

• LED and buzzer status indication

• LCD display support (optional)

• IoT and GPS integration (optional)

• Fast response and reliable operation

• Low power consumption

• Easy installation and expansion

Applications

• Automotive safety systems

• Smart vehicle security

• Fleet management

• Commercial transport vehicles

• School buses

• Public transportation

• Two-wheelers

• Cars and light vehicles

• Industrial vehicles

• Research laboratories

• Engineering projects

• IoT-based automotive systems

• Educational demonstrations

• Road safety awareness projects

Benefits

• Prevents drunk driving

• Improves road safety

• Reduces accident risk

• Automatic vehicle immobilization

• Promotes responsible driving

• Real-time safety monitoring

• Easy integration with vehicle electronics

• Expandable with IoT and GPS features

• Suitable for academic and commercial applications

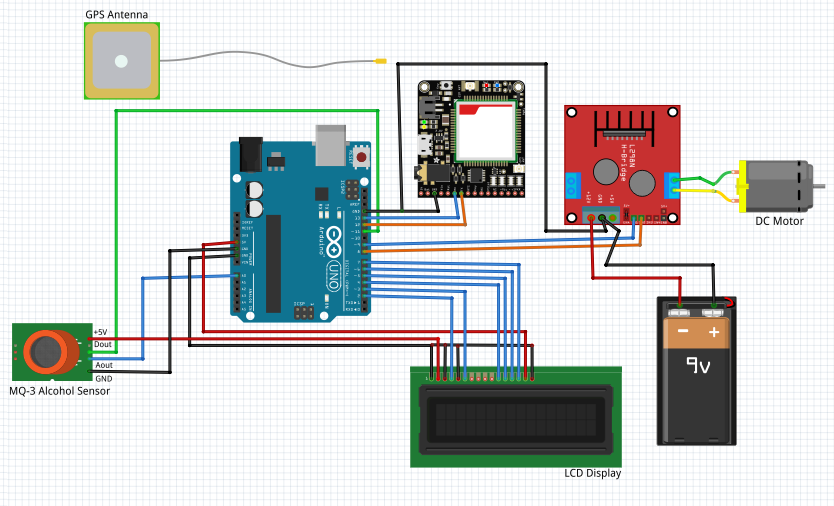

Typical Components Used

• Arduino Uno / Mega

• ESP32 Development Board

• Raspberry Pi

• MQ-3 Alcohol Sensor

• Relay Module

• Ignition Control Circuit

• LCD Display (16×2 or OLED)

• Buzzer

• LED Indicators

• GSM Module (Optional)

• GPS Module (Optional)

• Wi-Fi Module (Optional)

• Power Supply

Working Principle

1. The driver blows into the alcohol sensor before starting the vehicle.

2. The alcohol sensor measures the ethanol concentration in the breath.

3. The microcontroller processes the sensor output.

4. If the alcohol level is below the preset limit, the ignition relay is activated, allowing the engine to start.

5. If the alcohol level exceeds the safe threshold, the relay keeps the ignition circuit disabled, preventing the engine from starting.

6. LEDs, buzzers, or display modules provide immediate status feedback.

7. IoT-enabled versions can send alerts and vehicle location information to authorized users.

Advantages

• Fully automated engine locking

• Accurate alcohol detection

• Fast response time

• Reliable vehicle safety mechanism

• Low maintenance

• Easy to implement

• Expandable with advanced security features

• Supports smart transportation and connected vehicle technologies

The Alcohol-Based Engine Locking System is an effective smart vehicle safety solution that combines alcohol sensing, embedded control, and automated engine immobilization to prevent impaired driving, improve road safety, and demonstrate modern automotive automation technologies for educational, research, and real-world transportation applications.
