4 Channel 433MHz Wireless Four Button RF Remote Control Transceiver Module

The 4 Channel 433MHz Wireless Four Button RF Remote Control Transceiver Module is a wireless communication system designed to remotely control electronic devices using Radio Frequency (RF) signals operating at 433 MHz. The system typically consists of a 4-button RF remote transmitter and a 433 MHz RF receiver (transceiver) module, allowing users to wirelessly control up to four independent channels. It is widely used in home automation, industrial automation, wireless switching, robotics, IoT systems, security systems, garage door control, lighting control, and DIY electronics projects.

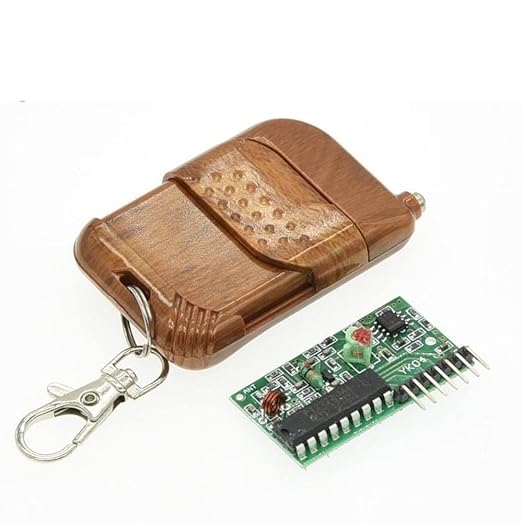

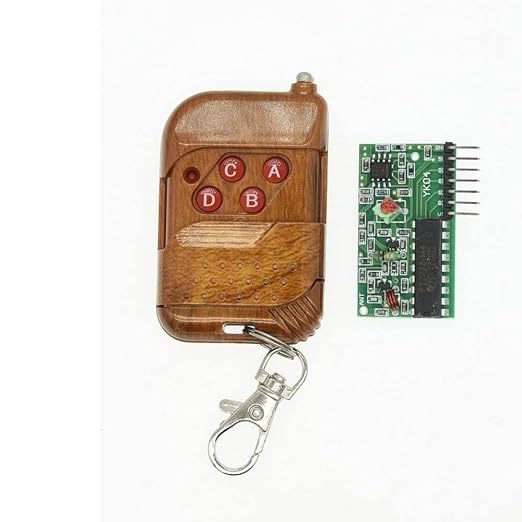

The system includes a 433 MHz RF remote transmitter, 433 MHz RF receiver/transceiver module, onboard decoder circuitry, RF antenna, power supply circuitry, output control pins, and status LEDs. The handheld remote features four push buttons, each capable of transmitting a unique digital code that corresponds to one of the four receiver channels.

The working principle of the 4 Channel 433MHz RF Remote Control Module is based on wireless radio frequency communication. When a button on the remote control is pressed, the transmitter generates a uniquely encoded digital signal and broadcasts it using a 433 MHz RF carrier frequency. The receiver module detects the RF signal through its antenna, demodulates and decodes the transmitted data, and identifies which button was pressed. The receiver then activates the corresponding output channel, which can be used to control relays, microcontrollers, LEDs, motors, or other electronic devices.

The module operates using the 433 MHz ISM (Industrial, Scientific, and Medical) frequency band, providing stable wireless communication with low power consumption. Depending on the antenna design, transmitter power, and surrounding environment, the typical communication range is 20 to 100 meters indoors and up to 200 meters or more in open outdoor areas.

The receiver module generally operates from a 3.3V to 5V DC power supply (depending on the module model), while the handheld transmitter is usually powered by a 12V A23 battery or a 3V coin cell battery, depending on its design.

The receiver module can interface directly with popular development boards such as:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontroller

• AVR Microcontroller

• 8051 Microcontroller

The receiver outputs can be connected directly to digital input pins or used to control relay modules, motor drivers, alarm systems, or other electronic circuits. Many receiver modules support learning code functionality, allowing multiple remotes to be paired with the same receiver.

The applications of the 4 Channel 433MHz Wireless RF Remote Control Transceiver Module include home automation, wireless lighting control, remote switching, garage door control, automatic gates, wireless door locks, alarm systems, industrial automation, robotics, smart irrigation systems, water pump control, motor control, security systems, wireless data transmission, IoT devices, prototype development, educational electronics, laboratory experiments, embedded systems, engineering projects, and DIY electronics.

The advantages of the module include long wireless operating range, low power consumption, reliable RF communication, easy installation, four independent control channels, compact design, simple interfacing with microcontrollers, reusable pairing capability, low cost, high reliability, wide compatibility, and suitability for both hobby and industrial applications.

In conclusion, the 4 Channel 433MHz Wireless Four Button RF Remote Control Transceiver Module is a reliable and efficient wireless control solution that enables remote operation of electronic devices through four independent RF channels. Its long communication range, stable 433 MHz transmission, easy integration with microcontrollers, and broad application support make it an excellent choice for home automation, robotics, industrial control, IoT systems, embedded applications, and DIY electronic projects.
