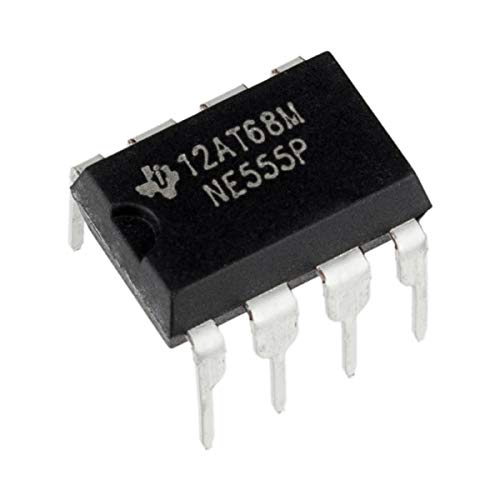

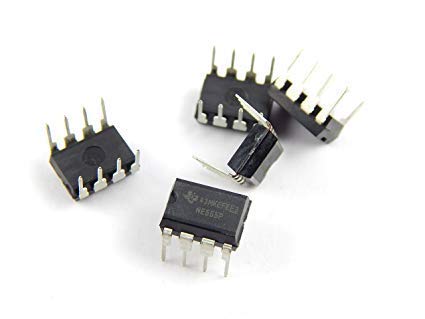

NE555 Timer IC

The NE555 Timer IC is a highly popular and versatile integrated circuit widely used in electronics for generating precise time delays, pulse signals, and oscillations. Known for its reliability, simplicity, and ease of use, it is a fundamental component for educational, hobbyist, and professional electronic projects. Its flexible configuration allows it to function in a variety of modes, including monostable (one-shot pulse) and astable (continuous oscillation), making it ideal for applications ranging from timing circuits to waveform generation.

Operating over a wide voltage range of 4.5 V to 16 V, the NE555 timer delivers stable output with excellent noise immunity, making it suitable for PWM control, LED flashers, tone generators, clocks, alarms, and simple motor control circuits. Its internal architecture includes voltage dividers, comparators, a flip-flop, and a discharge transistor, all contributing to accurate and reliable performance.

Widely used in schools, colleges, DIY electronics projects, robotics, and automation circuits, the NE555 timer IC is perfect for beginners, students, and engineers looking to design both simple and advanced electronics systems.

KEY FEATURES

• Versatile Timer IC: Generates precise time delays, oscillations, and pulse signals

• Operating Voltage: 4.5 V to 16 V for flexible low-voltage applications

• Modes: Monostable and astable operation for diverse circuit designs

• Stable and Reliable: Good noise immunity for consistent performance

• Applications: PWM generation, LED flashers, tone generators, clocks, alarms, motor control

• Ideal For: Educational labs, DIY electronics, robotics, and automation projects

• Internal Structure: Includes comparators, flip-flop, voltage divider, and discharge transistor
