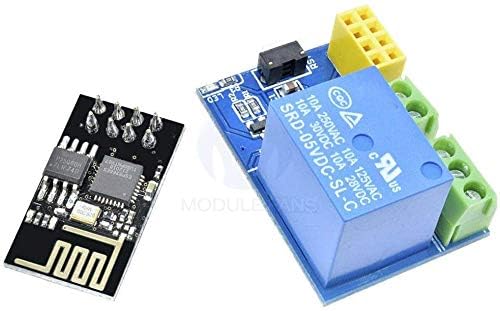

ESP8266 ESP-01 5V WiFi Relay Module (1 Pc)

The ESP8266 ESP-01 5V WiFi Relay Module is a compact wireless relay control board that combines an ESP8266 ESP-01 WiFi module interface with a 5V single-channel relay, allowing users to remotely control electrical appliances over a Wi-Fi network. It is designed for IoT (Internet of Things) applications, enabling wireless switching of AC or DC devices through smartphones, web servers, cloud platforms, or custom mobile applications. The module is widely used in home automation, smart lighting, industrial automation, remote monitoring, robotics, embedded systems, and DIY electronics projects.

The module consists of an ESP-01 socket, 5V electromagnetic relay, relay driver transistor, opto-isolation circuit (on some models), voltage regulator, status LEDs, relay output terminals, power input terminals, and GPIO control circuitry. The onboard relay provides Common (COM), Normally Open (NO), and Normally Closed (NC) terminals, allowing flexible control of electrical loads.

The working principle of the ESP8266 ESP-01 5V WiFi Relay Module begins when an ESP-01 WiFi module is inserted into the onboard socket. After programming the ESP8266 using the Arduino IDE or another compatible development platform, the module connects to a local Wi-Fi network. When a control command is received through a smartphone app, web browser, MQTT broker, cloud platform, or HTTP request, the ESP8266 processes the command and changes the state of its GPIO output pin. This output drives the relay control circuit, energizing or de-energizing the relay coil. The relay contacts then switch the connected electrical device ON or OFF without requiring any physical contact.

The module operates from a 5V DC power supply, while the ESP8266 itself internally operates at 3.3V, which is regulated by the onboard circuitry. The relay is typically rated to switch loads up to 250V AC at 10A or 30V DC at 10A, depending on the relay model installed. This makes the module suitable for controlling lights, fans, pumps, solenoid valves, motors, door locks, and other household or industrial electrical devices.

The ESP8266 provides built-in 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) connectivity, allowing the relay module to communicate over wireless networks without additional communication hardware. It supports various IoT communication protocols, including HTTP, MQTT, TCP/IP, UDP, and WebSocket, making it compatible with many IoT platforms and home automation systems.

The module can be programmed using Arduino IDE, ESP8266 SDK, PlatformIO, or MicroPython, and supports integration with cloud services such as Blynk, ThingSpeak, Home Assistant, Node-RED, and custom web servers. Users can also create their own mobile or web applications for remote relay control.

The applications of the ESP8266 ESP-01 5V WiFi Relay Module include smart home automation, wireless light control, remote appliance switching, smart irrigation systems, water pump automation, garage door control, automatic gate systems, security systems, industrial automation, IoT monitoring, HVAC control, smart energy management, robotics, laboratory automation, prototype development, educational electronics, and DIY engineering projects.

The advantages of the module include built-in Wi-Fi connectivity, remote wireless control, easy programming, compact design, low power consumption, high relay switching capacity, compatibility with popular IoT platforms, support for multiple communication protocols, simple installation, reliable operation, low cost, and seamless integration with ESP8266-based projects.

In conclusion, the ESP8266 ESP-01 5V WiFi Relay Module is a powerful and easy-to-use wireless switching module that combines the capabilities of the ESP8266 Wi-Fi microcontroller with a high-current relay. Its wireless communication, programmable control, IoT compatibility, and ability to switch AC or DC loads make it an excellent solution for home automation, smart devices, industrial control, embedded systems, and Internet of Things applications.
