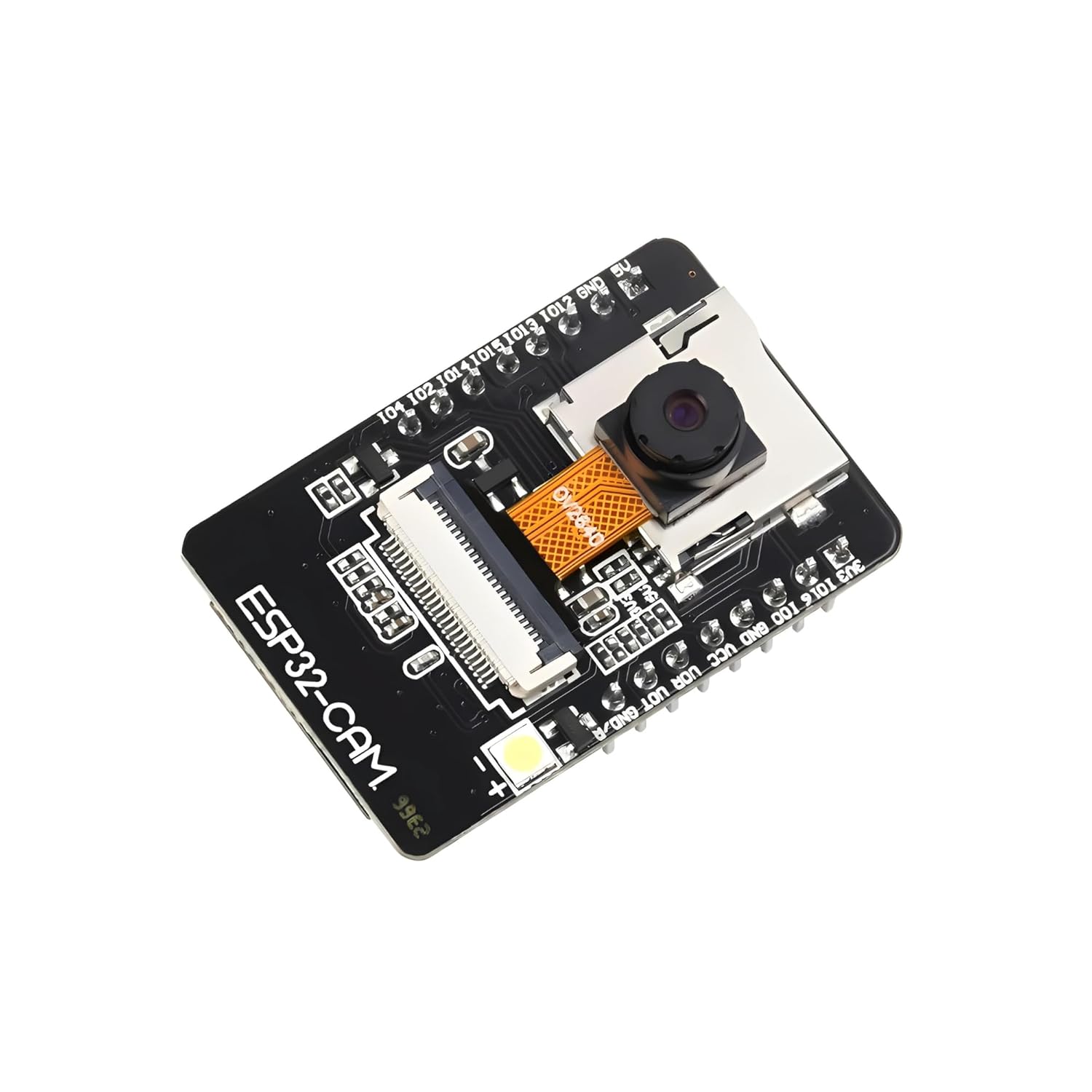

ESP32 CAM WIFI Module Bluetooth with OV2640 Camera Module

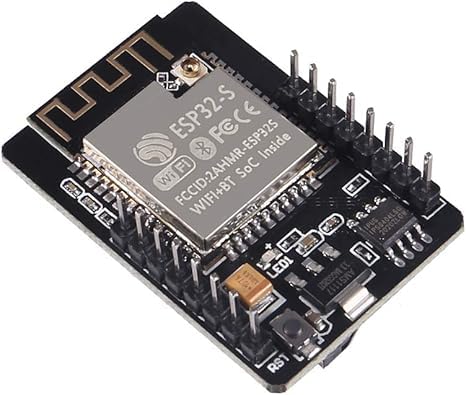

The ESP32 CAM WIFI Module Bluetooth with OV2640 Camera Module is a compact and powerful development board designed for wireless imaging, video streaming, and Internet of Things vision-based applications. It combines the advanced ESP32-S system-on-chip with built-in Wi-Fi and Bluetooth capabilities, allowing seamless wireless communication without the need for external modules. This integration makes it an excellent choice for projects that require both connectivity and visual data processing in a small form factor.

The module includes a 2 megapixel OV2640 camera that supports capturing images in JPEG, BMP, and grayscale formats, as well as real-time video streaming over Wi-Fi. This makes it suitable for applications such as smart surveillance systems, remote monitoring, smart doorbells, robotics, and embedded vision solutions. The camera delivers reliable image quality while maintaining efficient data handling for wireless transmission.

To support local data storage, the board features an onboard microSD card slot that allows photos and videos to be saved directly to a memory card. This is especially useful for standalone systems that need to log visual data without relying on constant network connectivity. The ESP32 processor operates at speeds of up to 240 MHz and supports multitasking through embedded FreeRTOS, enabling smooth handling of camera operations, networking, and peripheral control simultaneously.

The ESP32 CAM module provides multiple communication interfaces including UART, SPI, I²C, PWM, and general-purpose input/output pins, allowing easy integration with sensors, actuators, and other electronic components. It supports various Wi-Fi operating modes such as station mode, access point mode, and combined operation, along with multiple sleep modes that help reduce power consumption in battery-powered projects.

Compatible with popular development platforms like the Arduino IDE and ESP-IDF, this module is accessible to both beginners and professionals. Its small size and versatile feature set make it ideal for embedded IoT applications where space, power efficiency, and wireless imaging capabilities are critical.
