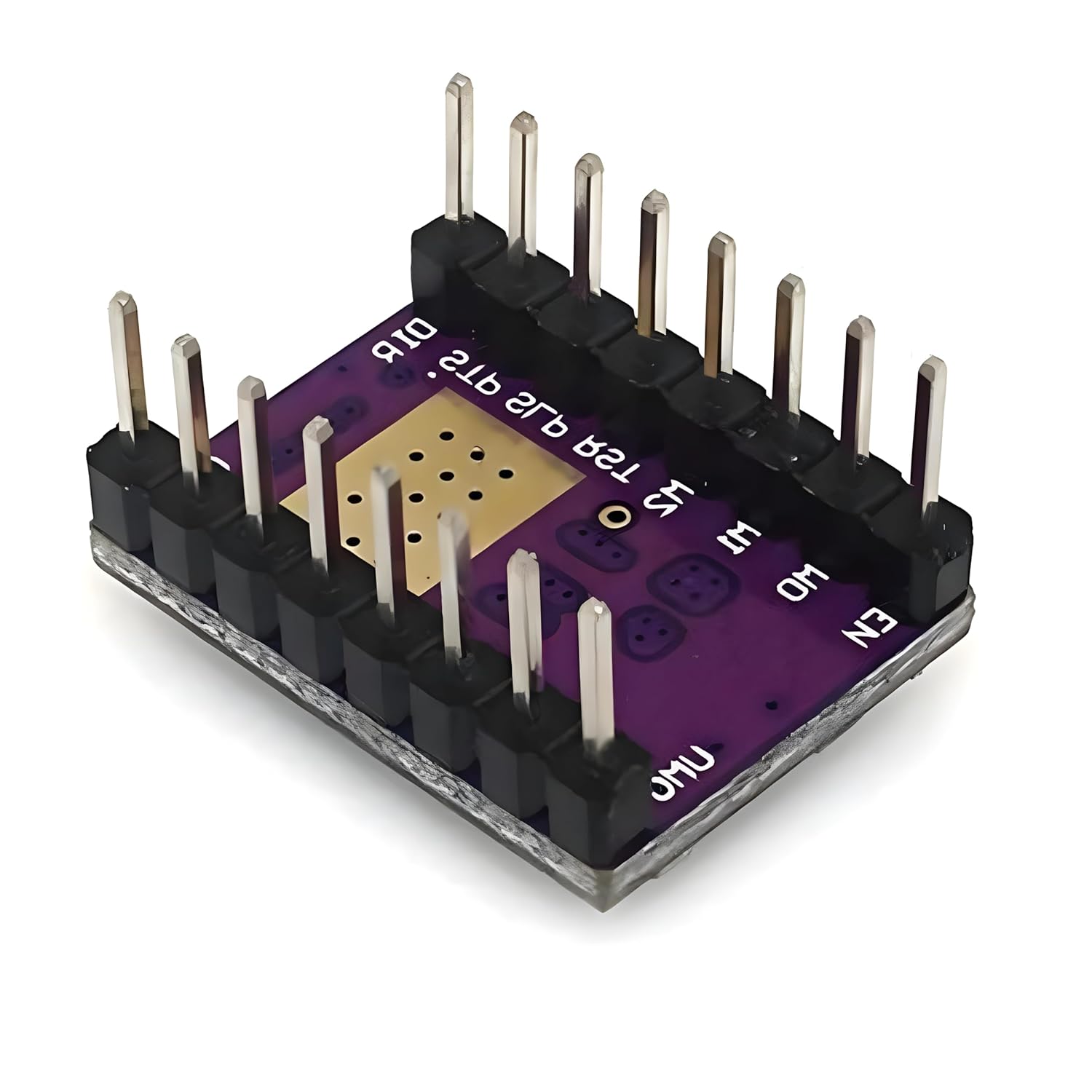

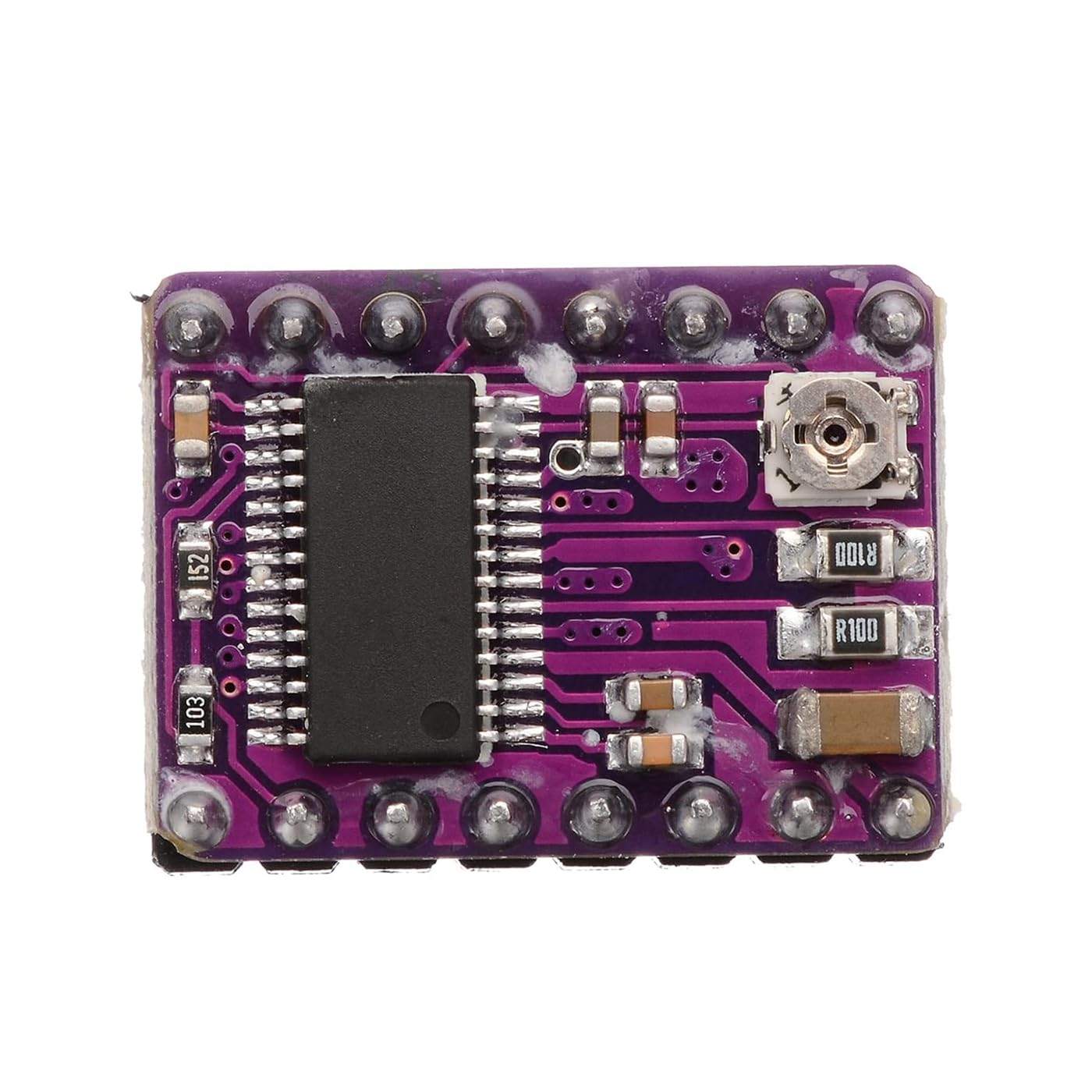

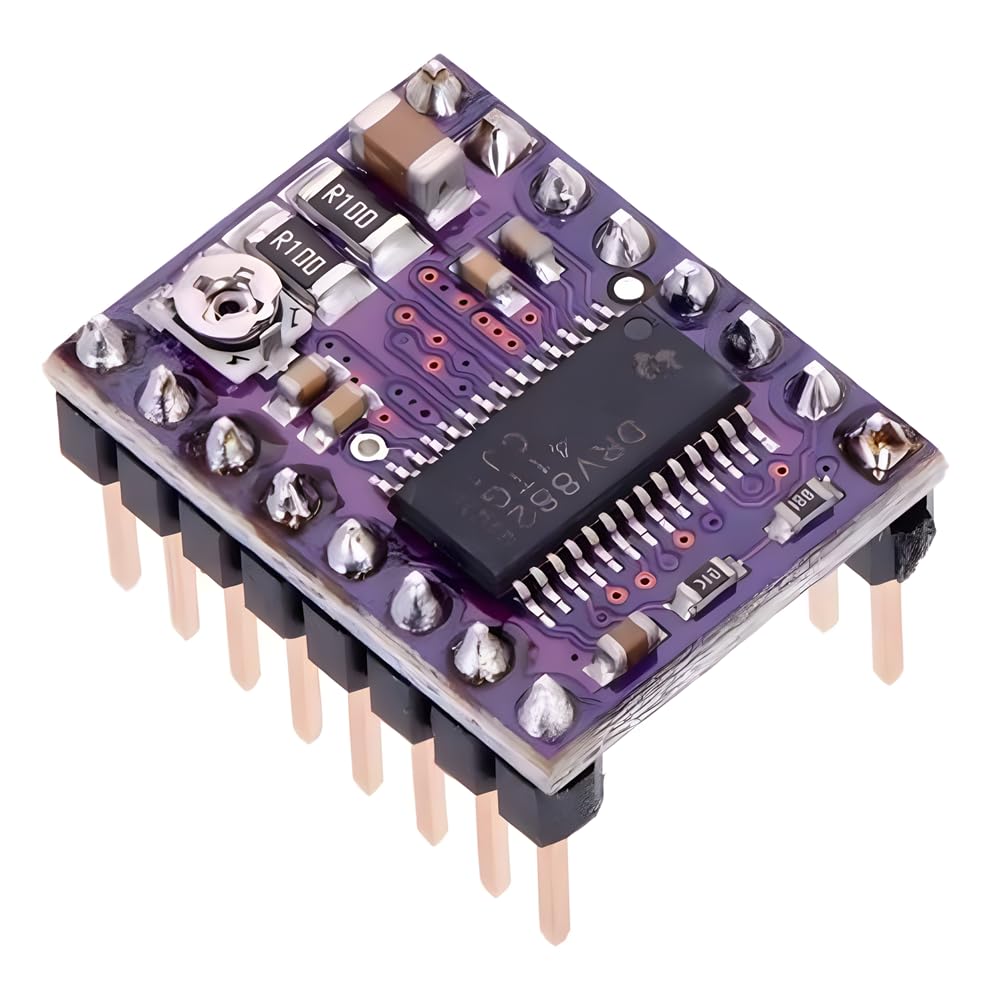

DRV8825 Stepper Motor Driver with Aluminum Heat Sink

 is a high-performance module designed for precise and efficient control of bipolar stepper motors in robotics, CNC machines, 3D printers, and other automation projects. Built around the DRV8825 driver IC from Texas Instruments, this driver offers smooth, accurate motion with adjustable current limiting and advanced microstepping capabilities, supporting full, 1/2, 1/4, 1/8, 1/16, and 1/32 steps for high-resolution control. The module can operate with motor voltages from 8.2 V to 45 V and delivers up to 2.5 A peak current per phase when adequately cooled. An onboard potentiometer allows fine-tuning of the current to protect motors and improve efficiency, while the included aluminum heat sink enhances thermal performance for prolonged operation. Built-in safety features include over-current protection, over-temperature shutdown, and under-voltage lockout, ensuring reliable and safe motor control. Compact and plug-and-play in design, the DRV8825 is compatible with Arduino, RAMPS 1.4, and standard 3D printer or CNC controllers, making it an ideal choice for precise, high-performance stepper motor applications in DIY, educational, and professional projects.
