27 mm Diameter Piezoelectric Sensor

The 27 mm Diameter Piezoelectric Sensor is a compact electromechanical sensing device that converts mechanical energy into electrical energy using the piezoelectric effect. It is widely used for detecting vibration, pressure, force, impact, sound, and motion in electronic systems. The sensor generates a voltage whenever it is bent, pressed, tapped, or subjected to mechanical stress. Because of its high sensitivity and fast response, it is commonly used in robotics, industrial monitoring, medical devices, security systems, musical instruments, and educational electronics projects.

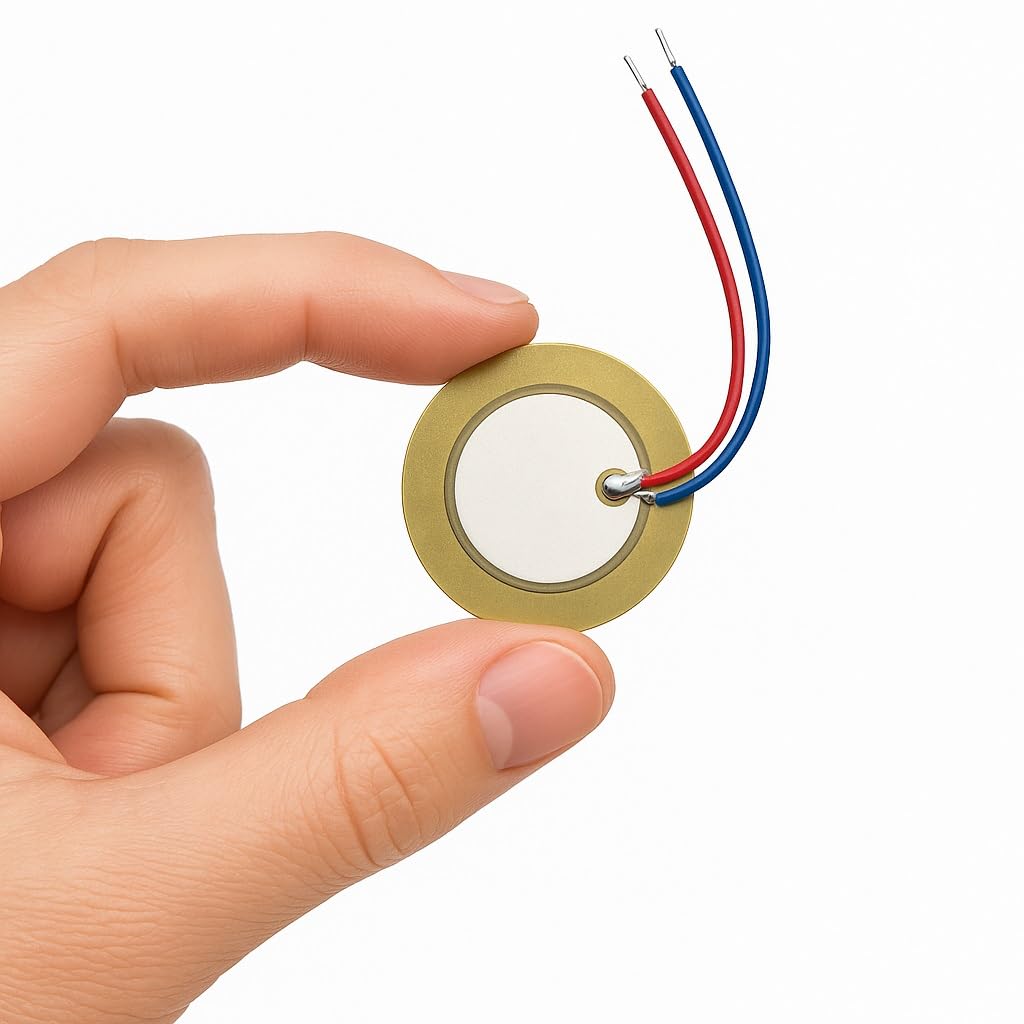

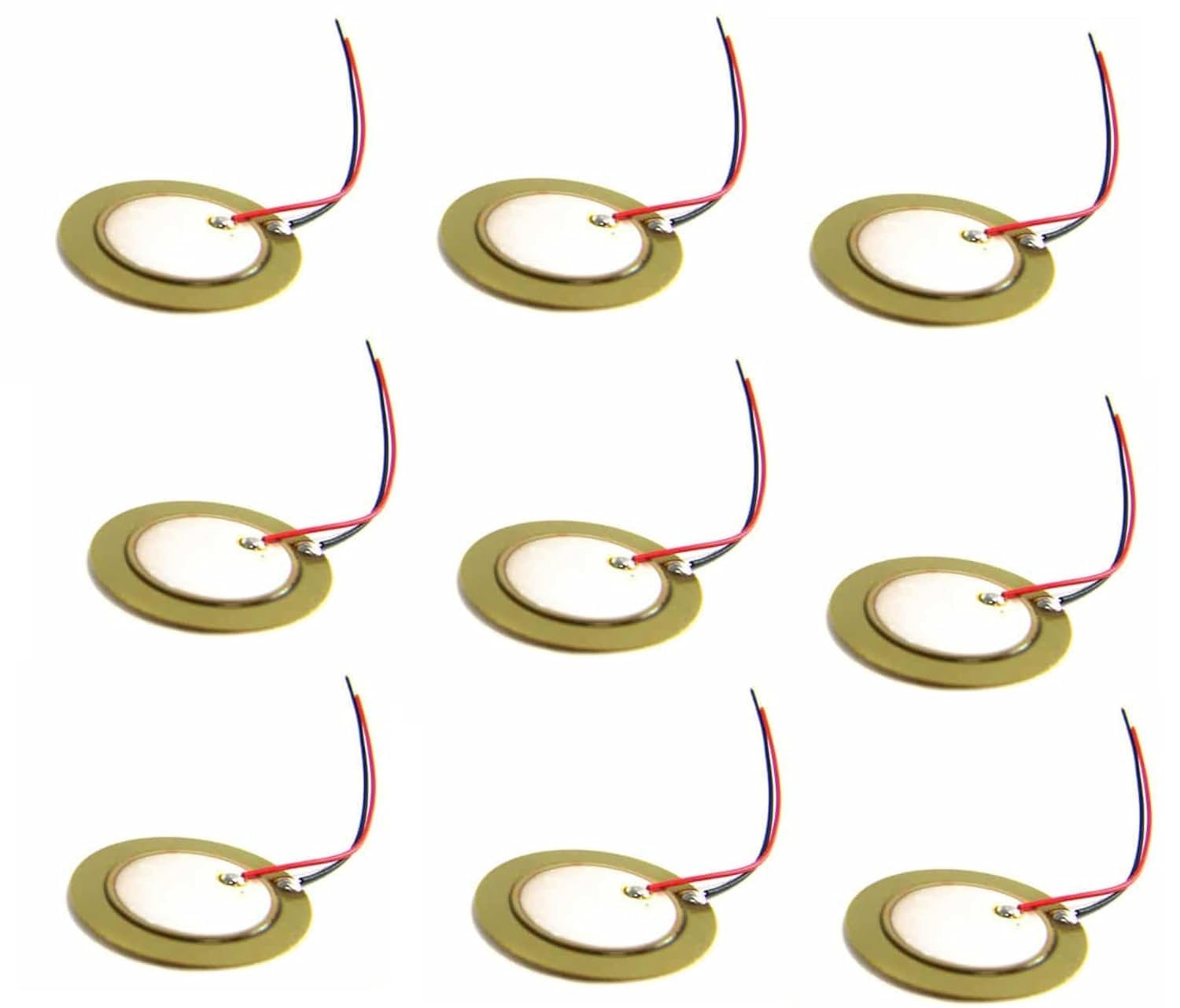

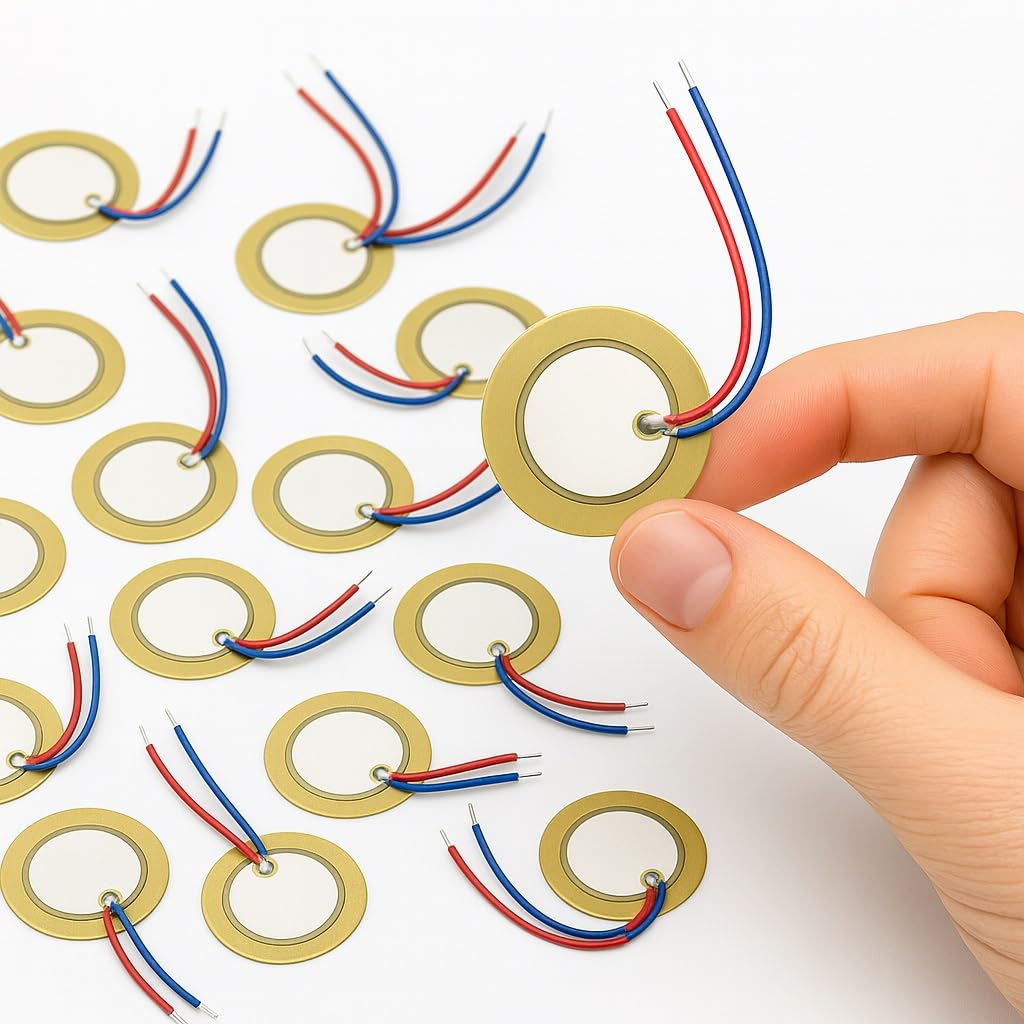

The sensor consists of a 27 mm diameter brass metal disc bonded to a thin layer of piezoelectric ceramic material, typically lead zirconate titanate (PZT). The brass disc provides mechanical strength and acts as one electrical electrode, while the ceramic layer serves as the active piezoelectric element and the second electrode. Many versions are supplied with pre-attached wires for easy connection, while others require soldering before use.

The working principle of the 27 mm piezoelectric sensor is based on the piezoelectric effect. When the sensor experiences mechanical stress such as bending, vibration, pressure, or impact, the crystal structure of the piezoelectric ceramic changes slightly, generating an electrical voltage across its electrodes. The greater the applied force or vibration, the higher the generated voltage. Once the mechanical force is removed, the output voltage quickly returns to zero.

The sensor can operate both as a sensor and as an actuator. As a sensor, it detects vibration, knocks, pressure, sound, or movement and converts them into electrical signals. As an actuator, when an alternating electrical signal is applied, the ceramic material vibrates rapidly, producing sound. This property makes piezoelectric elements useful in buzzers, alarms, and ultrasonic devices.

The 27 mm piezoelectric sensor is commonly interfaced with microcontrollers such as Arduino, ESP32, Raspberry Pi, PIC, AVR, and STM32 through analog input pins or signal conditioning circuits. Since the sensor can produce relatively high voltage pulses during strong impacts, protective resistors or voltage-limiting circuits are often used to protect sensitive electronic components.

The applications of the 27 mm piezoelectric sensor include vibration detection, knock sensing, impact monitoring, electronic drum pads, piezo buzzers, touch-sensitive switches, burglar alarm systems, machine condition monitoring, structural health monitoring, industrial automation, robotics, musical instruments, sound detection circuits, medical equipment, educational electronics, IoT devices, and energy harvesting experiments.

The advantages of the 27 mm piezoelectric sensor include high sensitivity, fast response time, compact size, lightweight construction, low power consumption, long operating life, wide frequency response, reliable performance, low cost, and easy integration with electronic circuits. It does not require an external power supply when used as a sensing element because it generates its own electrical signal in response to mechanical stress.

In conclusion, the 27 mm Diameter Piezoelectric Sensor is a reliable and versatile sensing component used to convert mechanical vibrations, pressure, and impacts into electrical signals. Its compact design, high sensitivity, and broad range of applications make it an essential component in robotics, industrial automation, embedded systems, security systems, medical devices, and educational electronics projects.
