150W DC-DC Boost Adjustable Power Converter

The 150W DC-DC Boost Adjustable Power Converter is a high-performance step-up voltage regulator designed to increase a lower DC input voltage to a higher adjustable DC output voltage. It is widely used in electronic circuits, battery-powered systems, renewable energy applications, robotics, automotive electronics, LED lighting, and laboratory power supplies. Based on switch-mode power supply (SMPS) technology, the converter efficiently boosts the input voltage while minimizing power loss, making it an ideal solution for applications requiring a stable and adjustable higher output voltage.

The converter typically accepts an input voltage ranging from 10 V to 32 V DC and provides an adjustable output voltage from 12 V to 35 V DC. It can deliver up to 150 W of output power with a maximum output current of approximately 6 A, depending on the input voltage, output voltage, and cooling conditions. The output voltage can be precisely adjusted using the onboard multi-turn potentiometer, allowing users to obtain the desired voltage for different electronic devices and circuits. The module offers a conversion efficiency of up to 94%, reducing energy loss and heat generation during operation.

The working principle of the 150W DC-DC Boost Converter is based on high-frequency switching. An inductor temporarily stores electrical energy when the switching transistor is turned on and releases it when the transistor is turned off. This process increases the output voltage above the input voltage while maintaining efficient power conversion. The module continuously regulates the output voltage to provide a stable power supply even when the input voltage fluctuates.

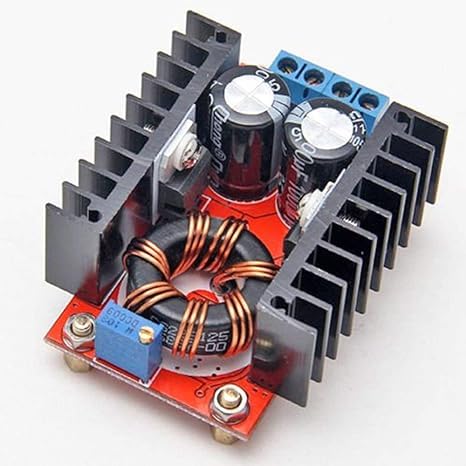

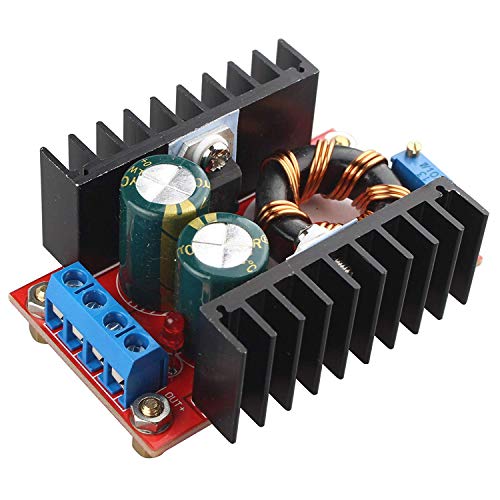

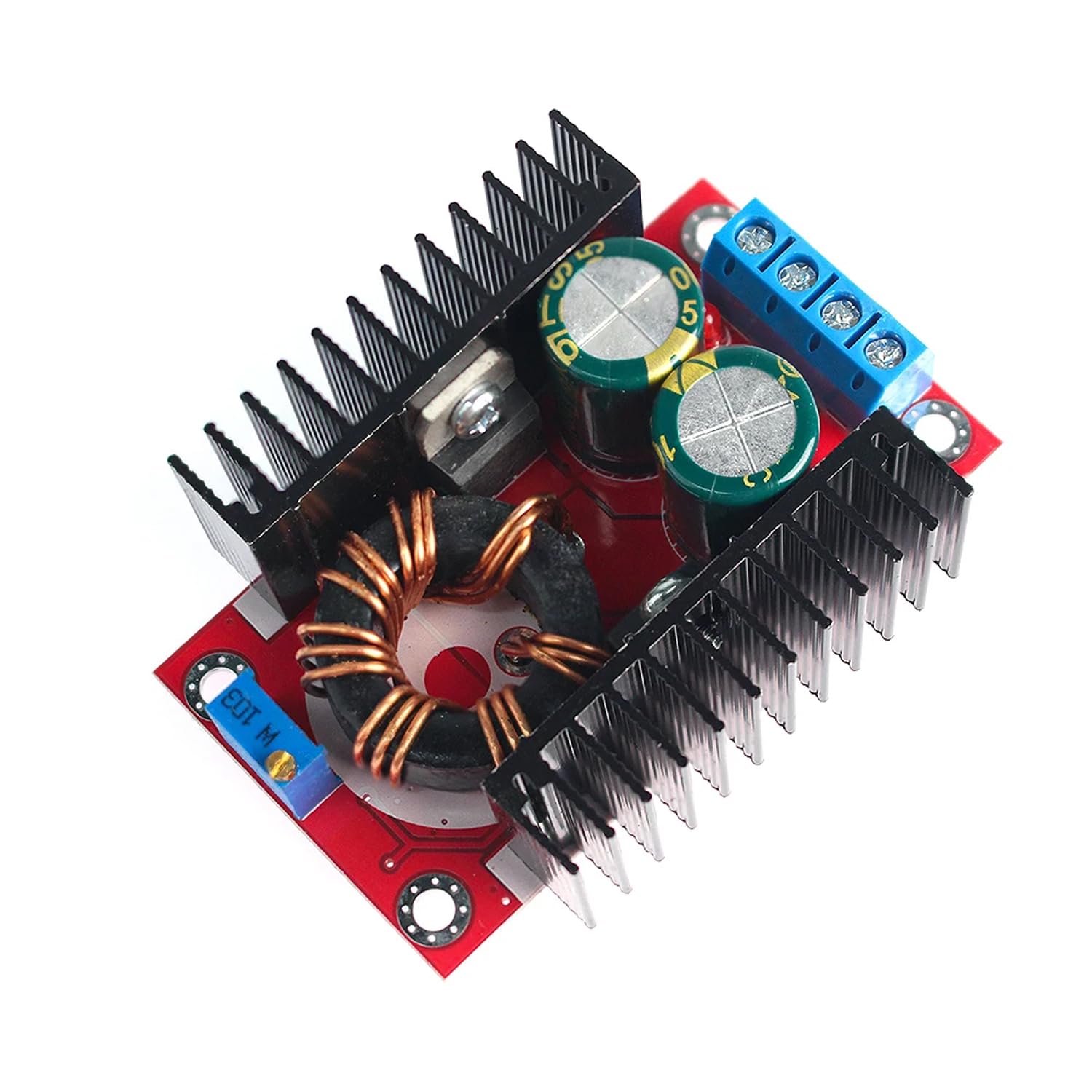

The converter includes high-quality electronic components such as a power inductor, MOSFET switching transistor, fast recovery diode, electrolytic capacitors, and a control integrated circuit that manages voltage regulation and switching operations. Many versions also feature large aluminum heatsinks that improve heat dissipation during high-power operation. For continuous operation at high loads, additional cooling using a fan is recommended to ensure reliable performance and extend the module's lifespan.

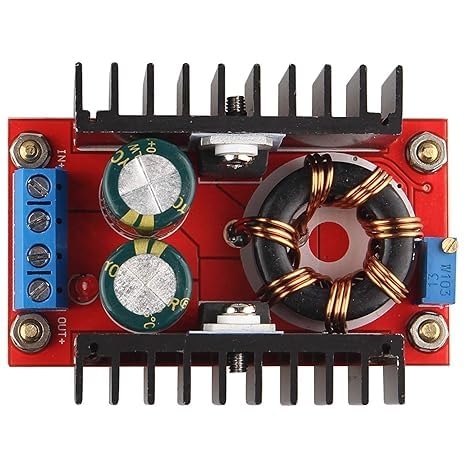

The 150W DC-DC Boost Adjustable Power Converter is easy to interface and includes four connection terminals: Input Positive (IN+), Input Negative (IN−), Output Positive (OUT+), and Output Negative (OUT−). It can be powered from batteries, solar panels, DC adapters, or other DC power sources and is compatible with Arduino, Raspberry Pi, ESP32, and various embedded systems that require higher operating voltages.

This converter is widely used in battery charging circuits, solar power systems, electric vehicles, LED drivers, portable power supplies, communication equipment, industrial automation, laboratory testing, robotics, CNC machines, DC motors, and DIY electronics projects. It is also commonly used in engineering laboratories and educational projects for voltage conversion and power management applications.

The main advantages of the 150W DC-DC Boost Adjustable Power Converter include high conversion efficiency, adjustable output voltage, compact design, stable performance, high output power, low heat generation, built-in voltage regulation, and ease of installation. However, users should ensure that the input voltage is always lower than the desired output voltage, use a suitable power source capable of supplying sufficient current, and provide adequate cooling when operating at high power levels. Proper polarity must also be observed during connections to prevent damage to the module.

Overall, the 150W DC-DC Boost Adjustable Power Converter is a reliable, efficient, and versatile voltage step-up module that provides stable adjustable DC output for a wide variety of electronic, industrial, automotive, renewable energy, and embedded system applications. Its high efficiency, compact size, and adjustable output make it an excellent choice for engineers, students, hobbyists, and professionals requiring dependable DC voltage conversion.
