Product Name:

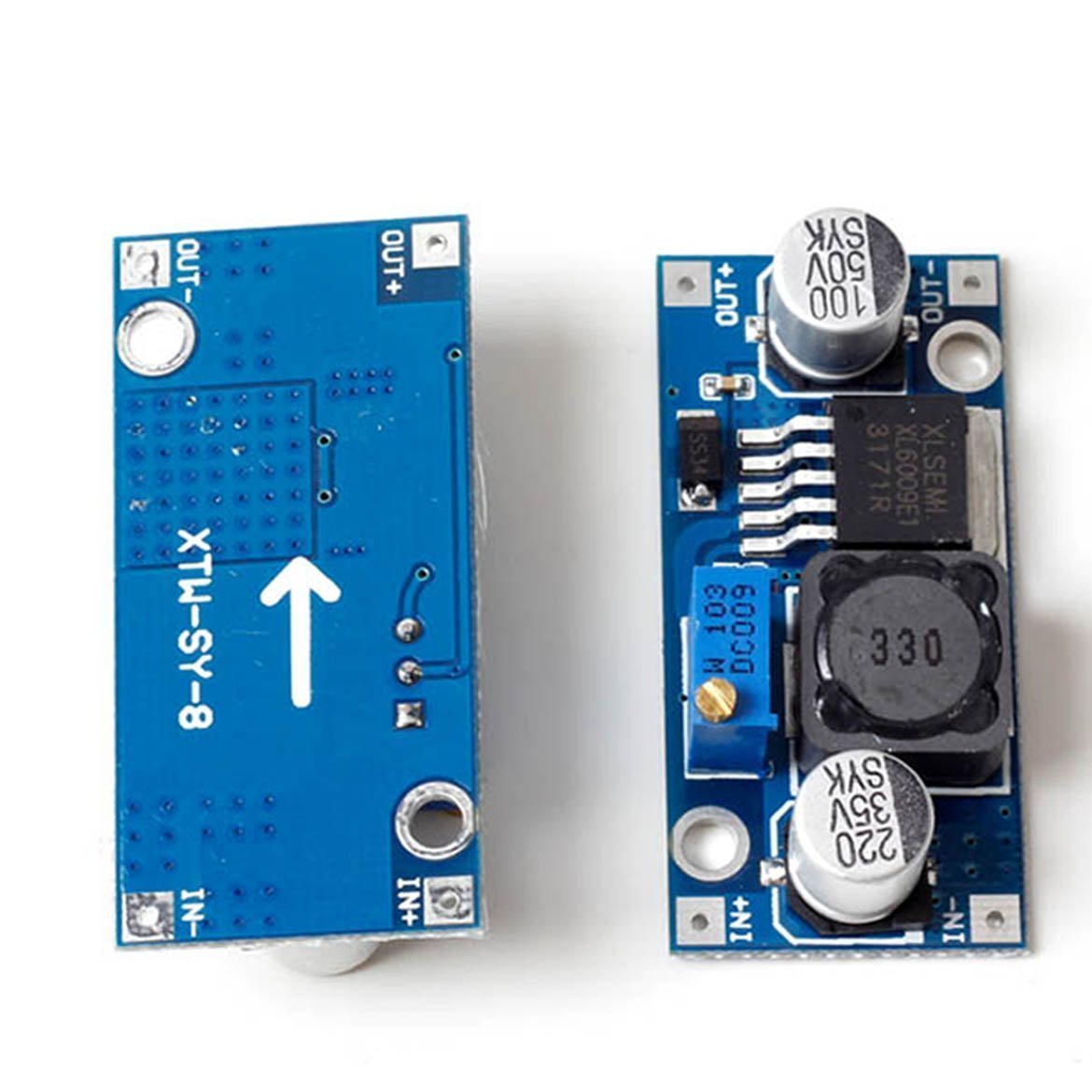

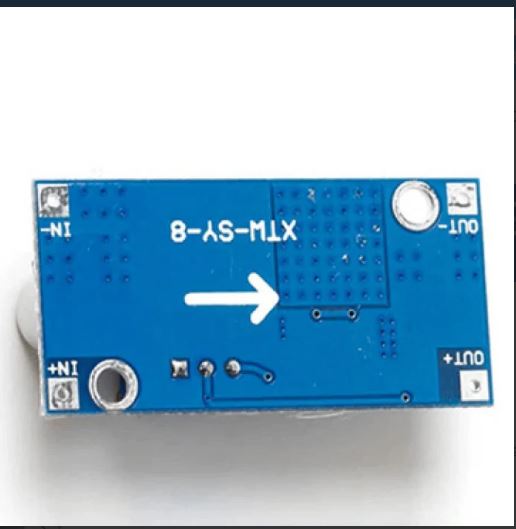

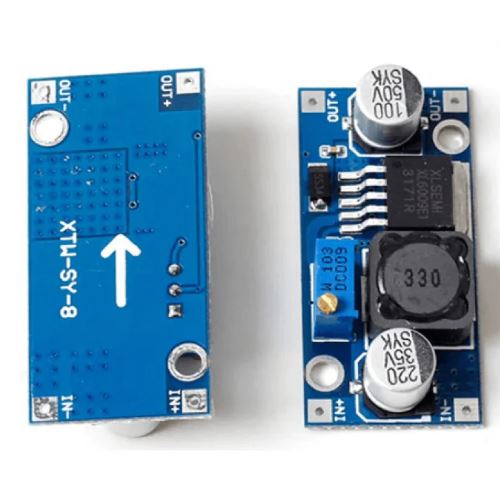

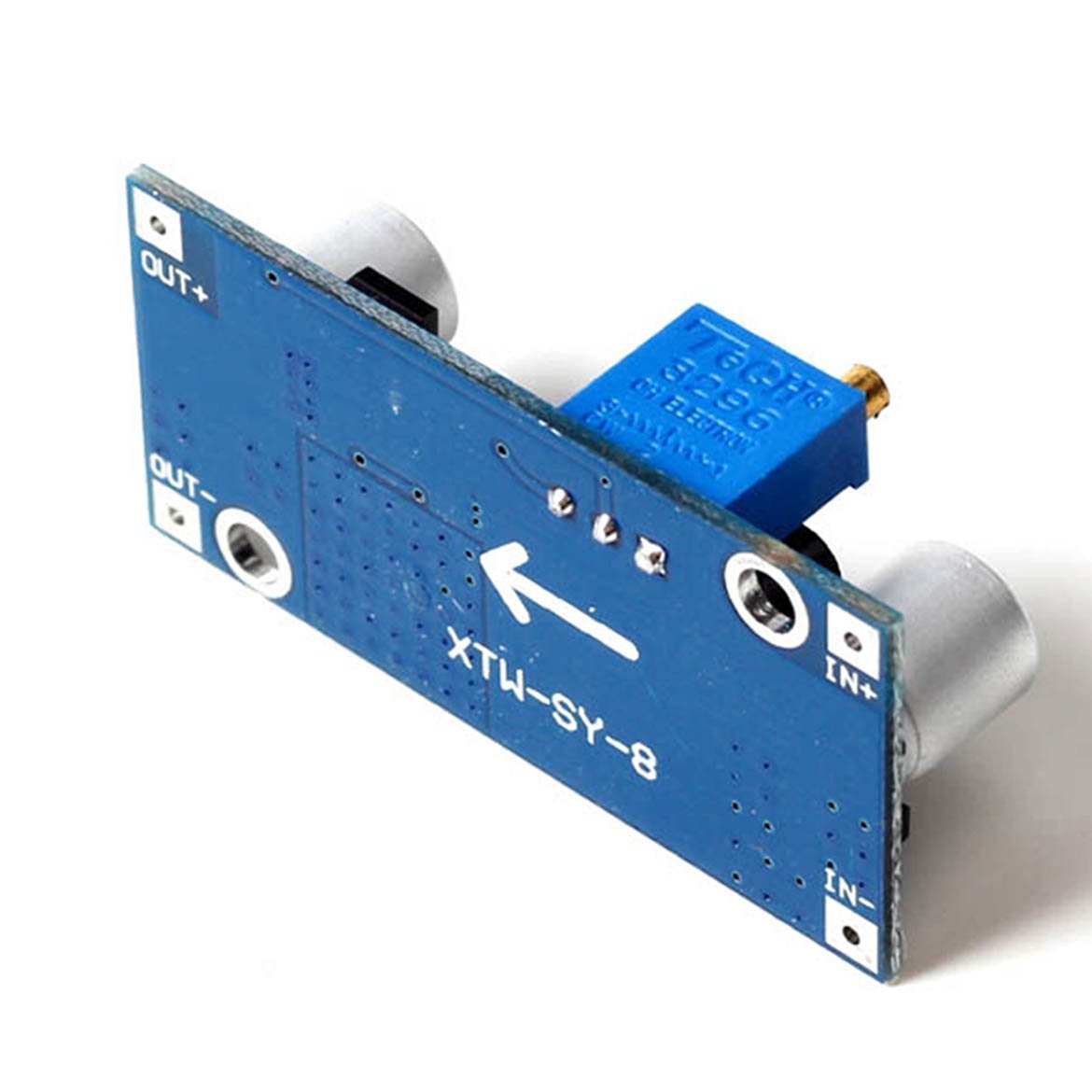

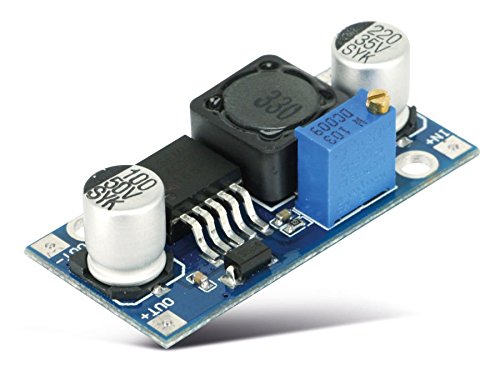

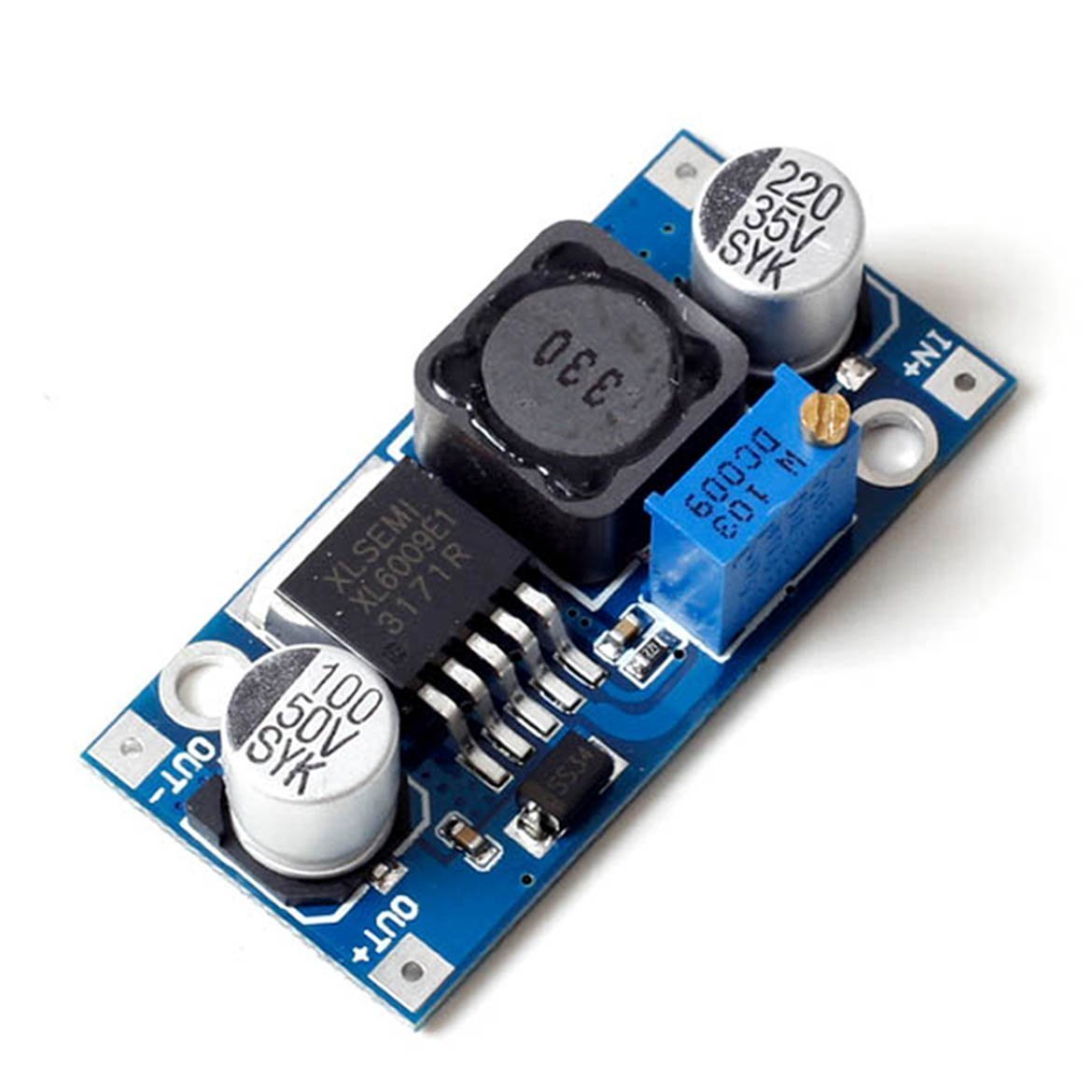

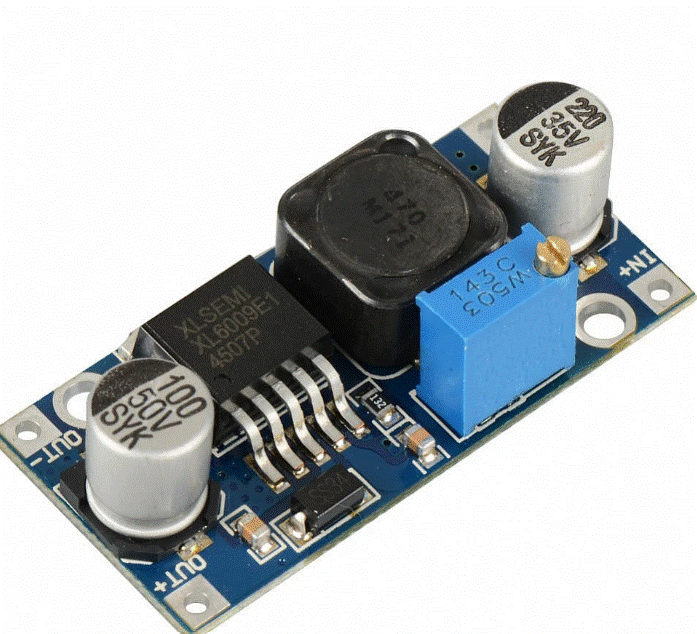

XL6009 DC-DC Step Up (Boost) Converter Module

Product Description:

The XL6009 DC-DC Step Up Boost Converter Module is a high-efficiency power regulation module designed to increase (boost) input voltage to a higher, stable output level. Built around the XL6009 switching regulator IC, it offers improved performance compared to older ICs like LM2577.

This module is ideal for powering devices that require a higher voltage than the input source—such as battery-powered projects, LED drivers, power banks, DIY electronics, robotics, and more. With its compact design, adjustable output, and excellent efficiency, it is a must-have module for makers, engineers, and hobbyists.

Key Features:

• Input Voltage: 3V to 32V DC

• Output Voltage: Adjustable from 5V to 35V DC

• Output Current: Up to 2A (peak 3A with heat dissipation)

• High Efficiency: Up to 94%

• Switching Frequency: 400 kHz for fast response and stable output

• Built-in XL6009 Regulator IC

• Onboard Potentiometer: For adjusting output voltage

• Over-temperature & over-current protection

• Compact & lightweight module

Applications:

• Battery-powered boosting

• Powering 12V devices from 5V or 3.7V lithium batteries

• Solar power systems

• LED strips and high-power LEDs

• Robotics and Arduino projects

• Power bank and USB boost circuits

• Portable electronics & DIY circuits

Why Choose This Module?

The XL6009 Boost Converter provides stable, efficient voltage conversion in a small form factor. It’s more reliable and efficient than older boost modules and is perfect for both beginner and professional electronic applications.
