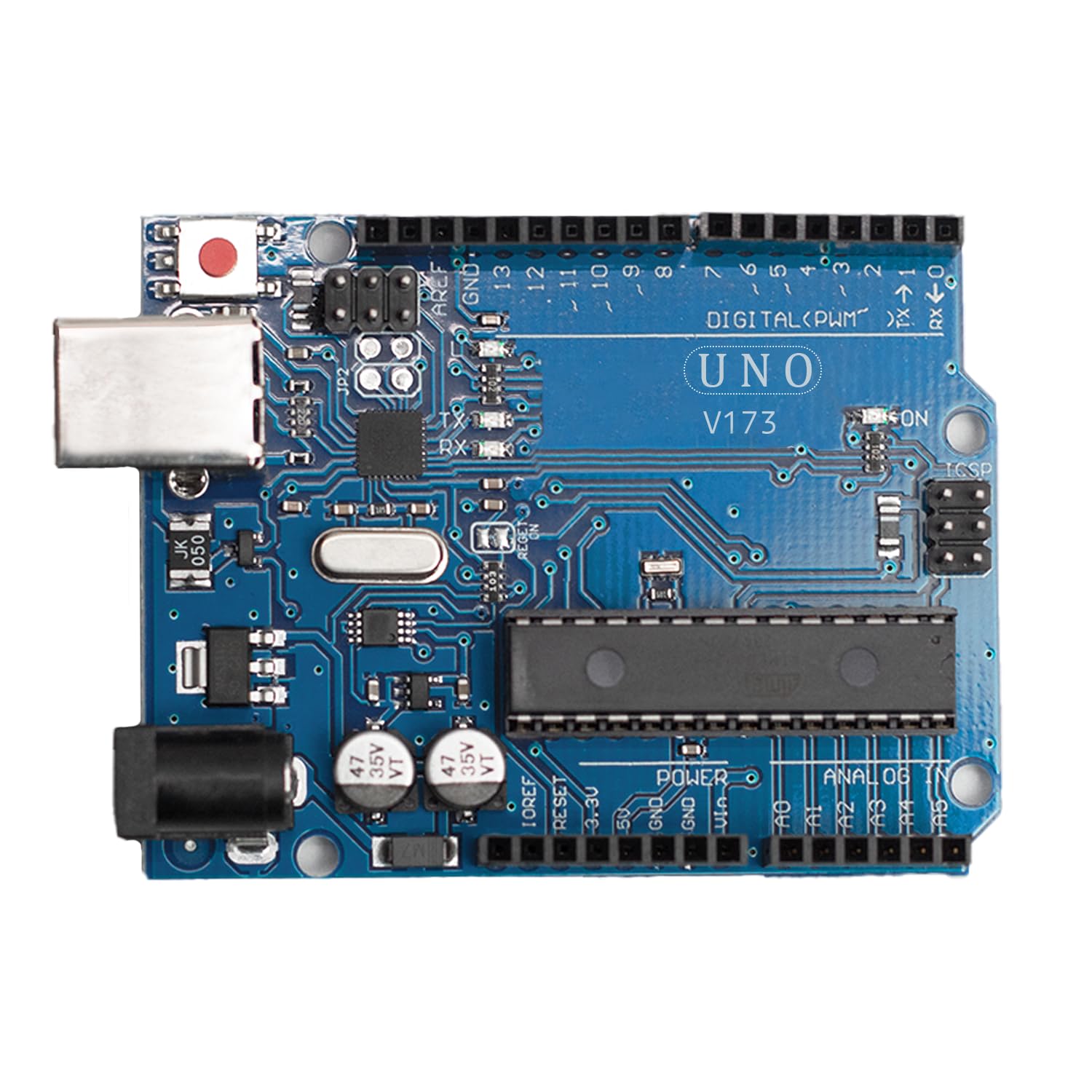

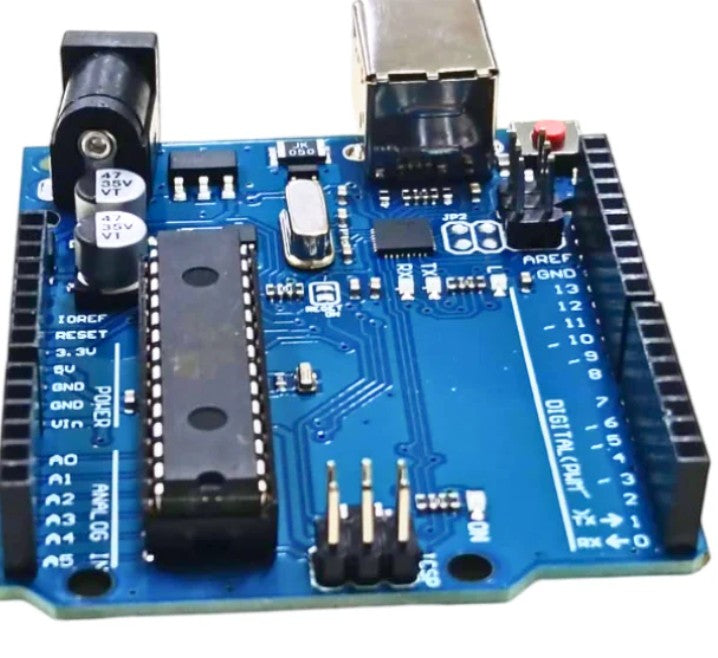

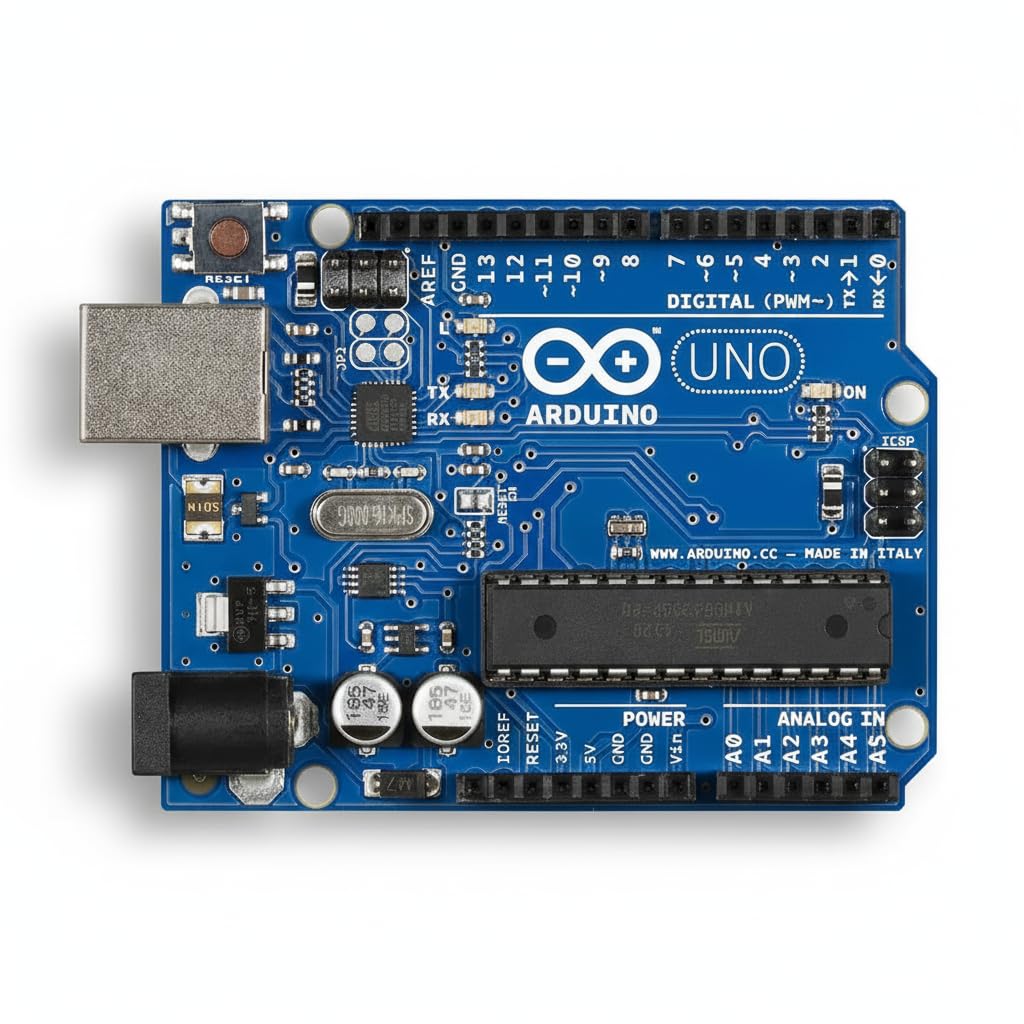

Arduino Uno R3 DIP Board compatible
The Arduino UNO R3 DIP Compatible Board is a versatile and beginner-friendly microcontroller development platform designed for learning, experimentation, and rapid prototyping. Its removable ATmega328P DIP microcontroller makes it especially suitable for educational environments and long-term use, as damaged chips can be easily replaced without changing the entire board.

KEY FEATURES
The board offers a balance of simplicity and functionality, providing enough processing power and I/O capability for a wide range of projects. Full compatibility with Arduino shields, libraries, and the Arduino IDE ensures ease of development and extensive community support.

WORKING PRINCIPLE
The ATmega328P microcontroller executes user-defined programs uploaded from a computer using the Arduino IDE. Input signals from sensors, buttons, or other devices are read through digital or analog pins. The microcontroller processes these inputs based on the uploaded code and generates corresponding outputs to control LEDs, motors, displays, or communication modules.

POWER SUPPLY OPTIONS
The board can be powered directly through the USB connection for programming and low-power applications. For standalone operation, an external DC power source or battery can be connected through the power jack or VIN pin, allowing flexibility in different project setups.

PROGRAMMING AND SOFTWARE SUPPORT
Programming is done using the Arduino IDE, which supports C/C++-based Arduino language. A wide range of built-in functions, libraries, and examples simplify development, enabling beginners to start quickly while still supporting advanced applications.

HARDWARE ARCHITECTURE
The board includes voltage regulation circuitry, a clock oscillator, USB-to-serial interface, and standard pin headers. The DIP socket allows easy removal of the microcontroller for replacement or for use in standalone breadboard projects.

ADVANTAGES OF DIP VERSION
The DIP version is ideal for learning and experimentation because the microcontroller can be replaced if damaged. It also allows users to program the chip on the board and then transfer it to a custom circuit, reducing cost and increasing flexibility.

APPLICATION AREAS
This board is widely used in education, robotics, automation, IoT development, and hobby electronics. Its reliability and simplicity make it suitable for classroom teaching, prototype development, and real-world embedded system experimentation.

CONCLUSION
The Arduino UNO R3 DIP Compatible Board remains one of the most popular microcontroller platforms due to its ease of use, replaceable microcontroller, and strong ecosystem. It is an excellent choice for beginners and professionals seeking a reliable and flexible development board.
